1 – 29
Chapter 1 Troubleshooting
FIP1.14 No Paper/Tray 1, 2
Step Check Yes No
Possible causes:
SENSOR NO PAPER (PL5.1.38, PL7.1.38)
ACTUATOR NO PAPER (PL5.1.6, PL7.1.14)
HVPS/MCU (PL12.1.19)
LVPS (PL12.1.5)
PLATE ASSY BTM (PL2.1.10, PL4.1.10)
RACK BTM LOCK 550 (PL4.1.21)
HOUSING BASE 550(PL4.1.44)
1 Does Error Code indicate Tray 3 or Tray 4?
Go to FIP4.2 "No
Paper/Tray 3, 4".
Go to step 2.
2
Checking if there is any paper Is there any paper in
Tray 1 or Tray 2?
Go to step 3. Supply paper.
3
Is PLATE ASSY BTM (PL2.1.10, PL4.1.10) lifted cor-
rectly?
Go to step 4.
Remove Paper
Cassette, and then
reinstall it correctly.

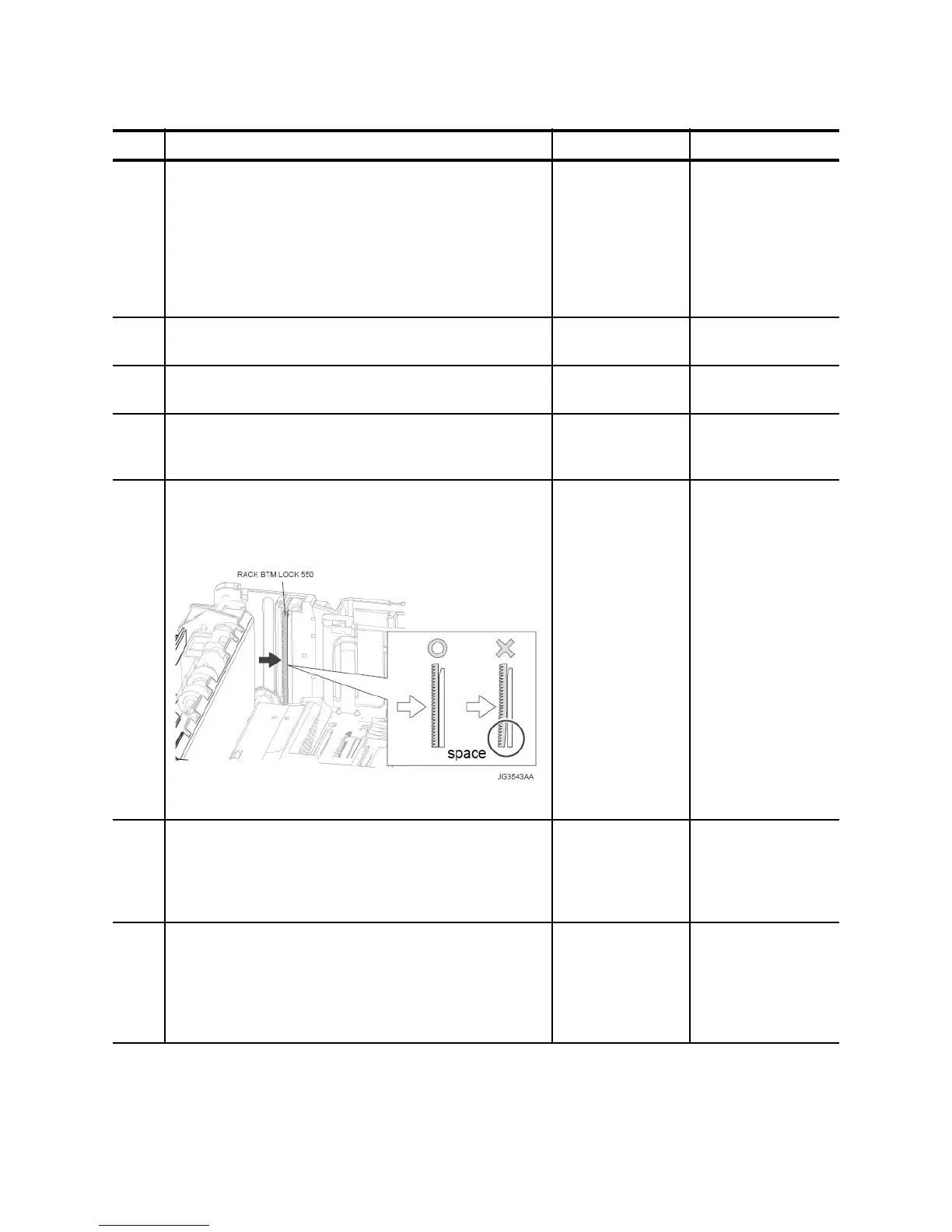

4
With pressing down PLATE ASSY BTM, press the cen-
ter area of RACK BTM LOCK 550 against HOUSING
BASE 550.
Are RACK BTM
LOCK 550 and
HOUSING BASE
550 touched each
other without any
space?
Go to step 5.
Work over the
installation of
RACK BTM
LOCK 550
again.(RRP4.6)
5
Checking ACTUATOR NO PAPER for operation
Remove Paper Cassette. When putting hand from the
cassette insertion space to move ACTUATOR NO
PAPER, does ACTUATOR NO PAPER move
smoothly?
Go to step 6.
Replace
ACTUATOR NO
PAPER.
6
Checking SENSOR NO PAPER for operation
Remove EP CARTRIDGE.
Does number of Sensor/Switch Check increase by one,
when ACTUATOR NO PAPER is pushed and released?
Check using Chapter 2 Diagnostic [Sensor/Switch
Check].
Replace
HVPS/MCU.
(RRP12.10)
Go to FIP2.6
SENSOR NO
PAPER.
To Next Page
