Chapter 3 Removal and Replacement Procedures (RRPs)
RRP9.9 SHIELD PLATE HVPS (PL 12.1.18)
Removal
1) Remove the COVER RIGHT (PL 1.1) (RRP1.2).
2) Remove the SHIELD ASSEMBLY ESS (PL 9.1) (RRP9.7).
3) Remove the 10 screws (silver, 6mm) securing the SHIELD PLATE HVPS to the frame (Figure 1).
4) Remove the SHIELD PLATE HVPS.

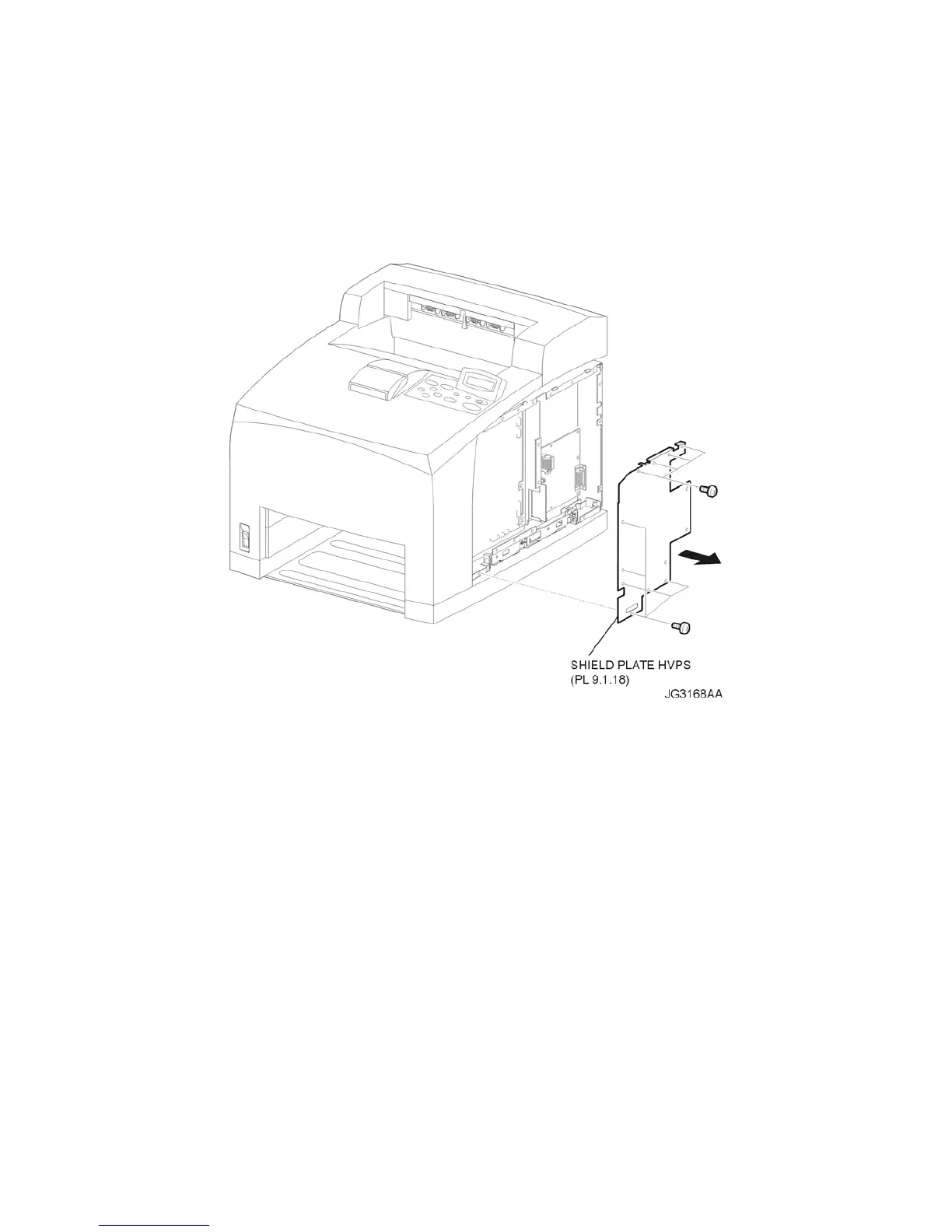

Figure 1. HVPS Shield Plate
Replacement
1) Install the SHIELD PLATE HVPS to the frame using the 10 screws (silver, 6mm) (Figure 1).
2) Install the SHIELD ASSEMBLY ESS (PL 9.1) (RRP9.7).
3) Install the COVER RIGHT (PL 1.1) (RRP1.2).
