3 - 76
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP5.2 ROLL ASSEMBLY NUDGER (PL 5.1), ROLL ASSEMBLY FEED (PL 5.1)
Removal
1) Open the COVER OPEN (PL 1.1) so that the removing operation can be checked visually.
2) Remove Tray 1 and Tray 2 Paper Cassettes.
3) Lift up the 150 FEEDER ASSEMBLY (PL 4.1).
The 150 FEEDER ASSEMBLY clicks into a notch when lifted to the half way point, push
the assembly past the notch.
4) While holding the 150 FEEDER ASSEMBLY, release the hook securing the ROLL ASSEMBLY
NUDGER by hand which is inserted through the space left by the Paper Cassettes, and pull it out
from the SHAFT NUDGER (PL 5.1) (Figure 1).
5) Release the hook securing the ROLL ASSEMBLY FEED by using the same procedures of step 4
above, and pull it out from the SHAFT FEED (PL 5.1) (Figure 1).
When removing, do not touch the roller surface of the ROLL ASSEMBLY NUDGER and
ROLL ASSEMBLY FEED.

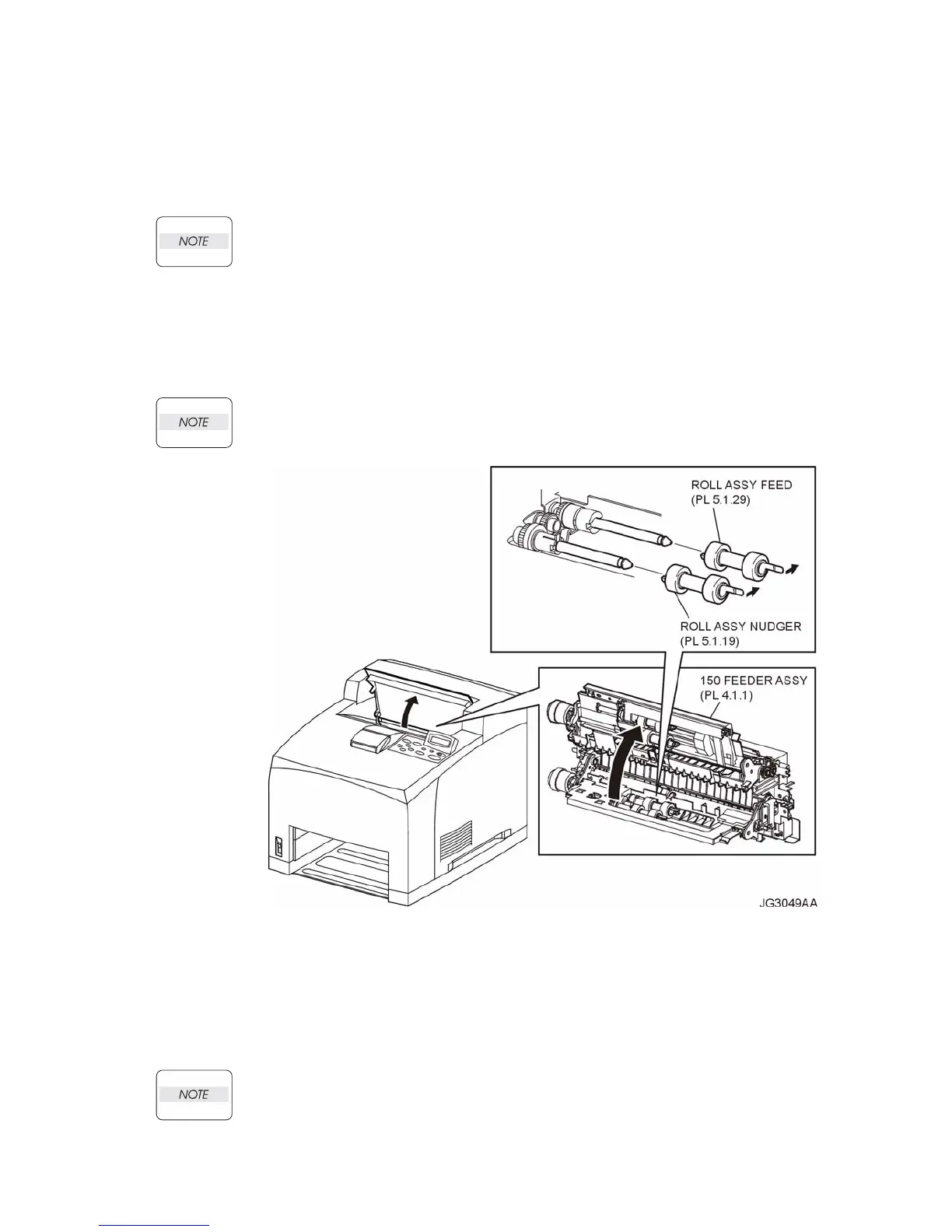

Figure 1. Nudger & Feed Roll Assembly
Replacement
1) While holding the 150 FEEDER ASSEMBLY, install the ROLL ASSEMBLY FEED to the SHAFT
FEED (PL 5.1), and secure the ROLL ASSEMBLY FEED with the hook by using the same proce-
dures of step 4 of removal (Figure 1).
Be sure to install the hook of the ROLL ASSEMBLY FEED into the groove of the SHAFT
FEED.
To Next Page
