Oki B6500 Service Manual

3 - 91
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP5.10 ACTUATOR NO PAPER (PL 5.1)
Removal
1) Remove the COVER REAR 500 (PL 7.1) (RRP7.9).
2) Remove the FUSER ASSEMBLY (PL 6.1) (RRP6.8).
3) Place the printer down on its left side.
Be careful not to scratch the cover, and do not drop the printer.
4) Open the COVER OPEN (PL 1.1).
5) While lifting up the boss of the HOLDER LEFT (PL 5.1) at the back of the 550 FEEDER ASSEM-
BLY, shift the HOLDER LEFT in the direction of the arrow to remove 3 hooks (Figure 1).
6) Remove the HOLDER LEFT from the SUPPORT NUDGER (PL 5.1) (Figure 1). At the same time,
the ACTUATOR NO PAPER is removed.

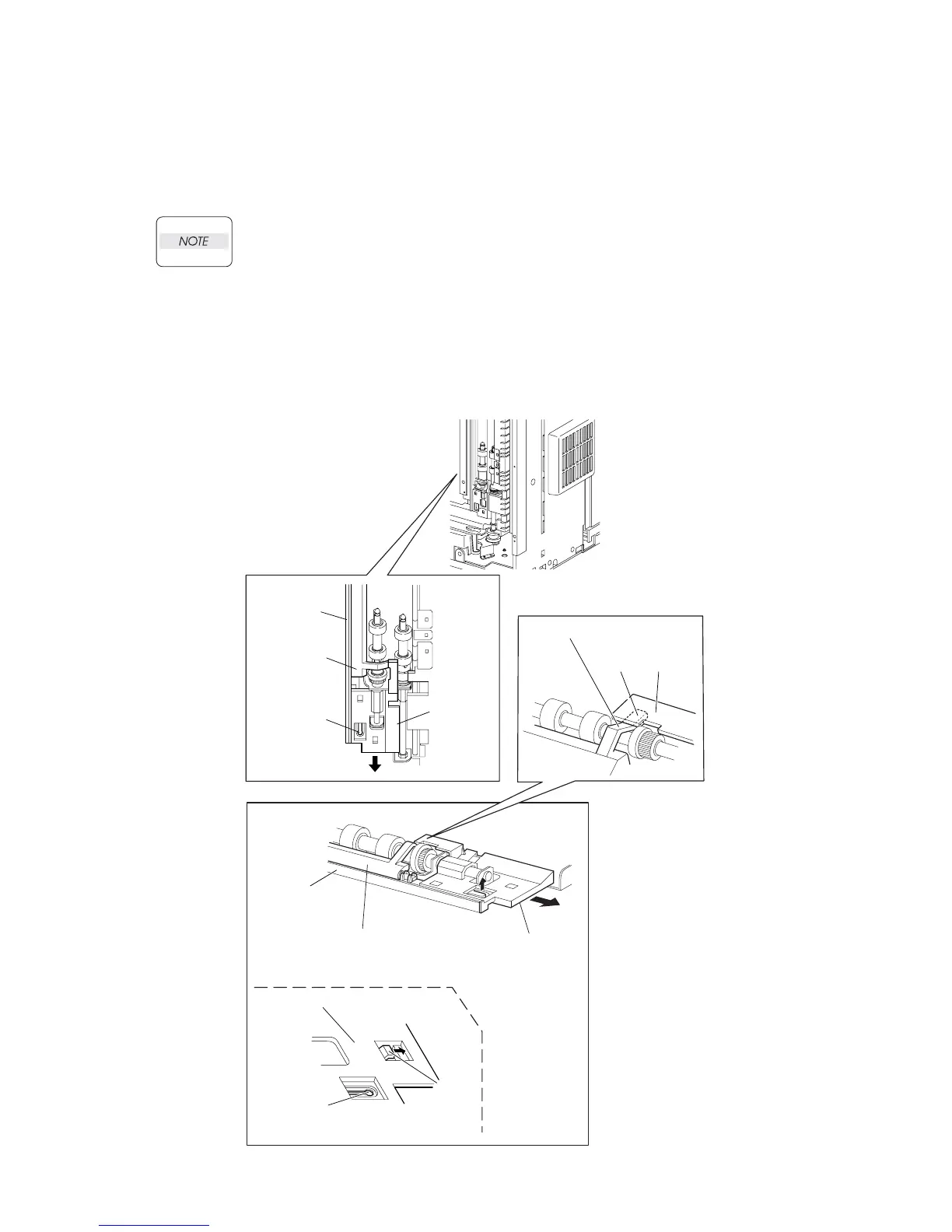

Figure 1. No Paper Actuator
HOLDER
LEFT
(PL7.1.13)
LIFT UP
(BOSS)
SUPPORT
NUDGER
(PL7.1.12)
ACTUATOR
NO PAPER
(PL7.1.14)
JG3198AA
ACTUATOR NO PAPER
(PL7.1.14)
SUPPORT NUDGER
(PL7.1.12)
UNDER VIEW
HOLDER LEFT
(PL7.1.13)
HOOK
LIFT UP
(BOSS)
HOLDER
LEFT
ACTUATOR NO PAPER
HOOK
HOLDER
LEFT
(PL 5.1.12)
(PL 5.1.14)
(PL 5.1.13)
(PL 5.1.12)
(PL 5.1.14)
(PL 5.1.13)
