Chapter 9 ESS Options
2.4 Installing the SIMM Card
1) Turn the printer power OFF and remove the power cord from the outlet.
2) Remove the COVER RIGHT (RRP1.2) (PL1.1.4).
3) Remove the SHIELD ASSY WINDOW (RRP12.8) (PL12.1.15).

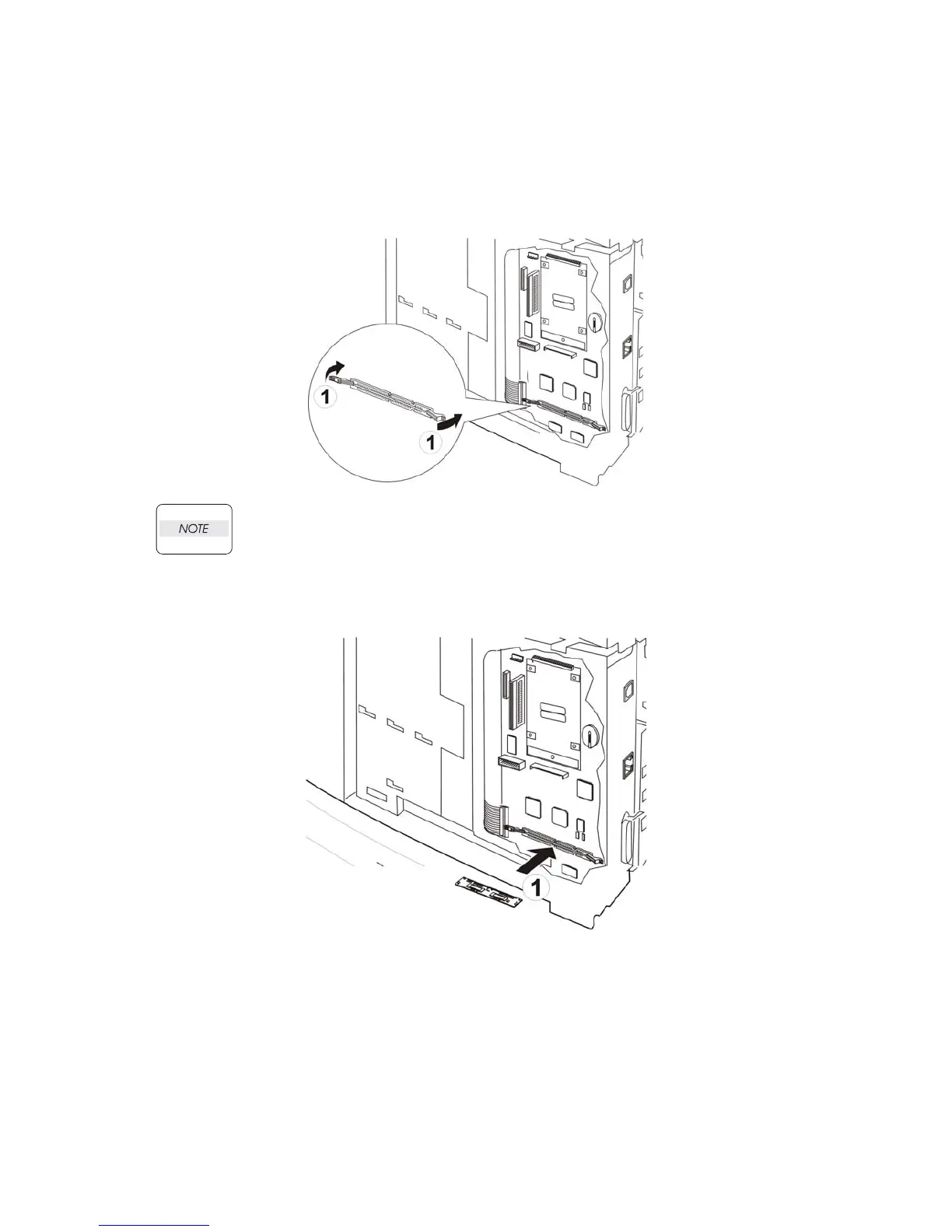

4) Release the latches on the SIMM Card socket (See figure below).
In the step that follows take care when seating the device. The pins are fragile and can be
easily damaged.
5) Carefully align the SIMM Card with the socket on the ESS PWB (See figure below).
