Oki B6500 - Driving Force Transmission Path; Gear Layout; Motor Assy Oct

6 – 38
Chapter 6 Principles of Operation
OCT Option
11. Driving Force Transmission Path
11.1 MOTOR ASSY OCT

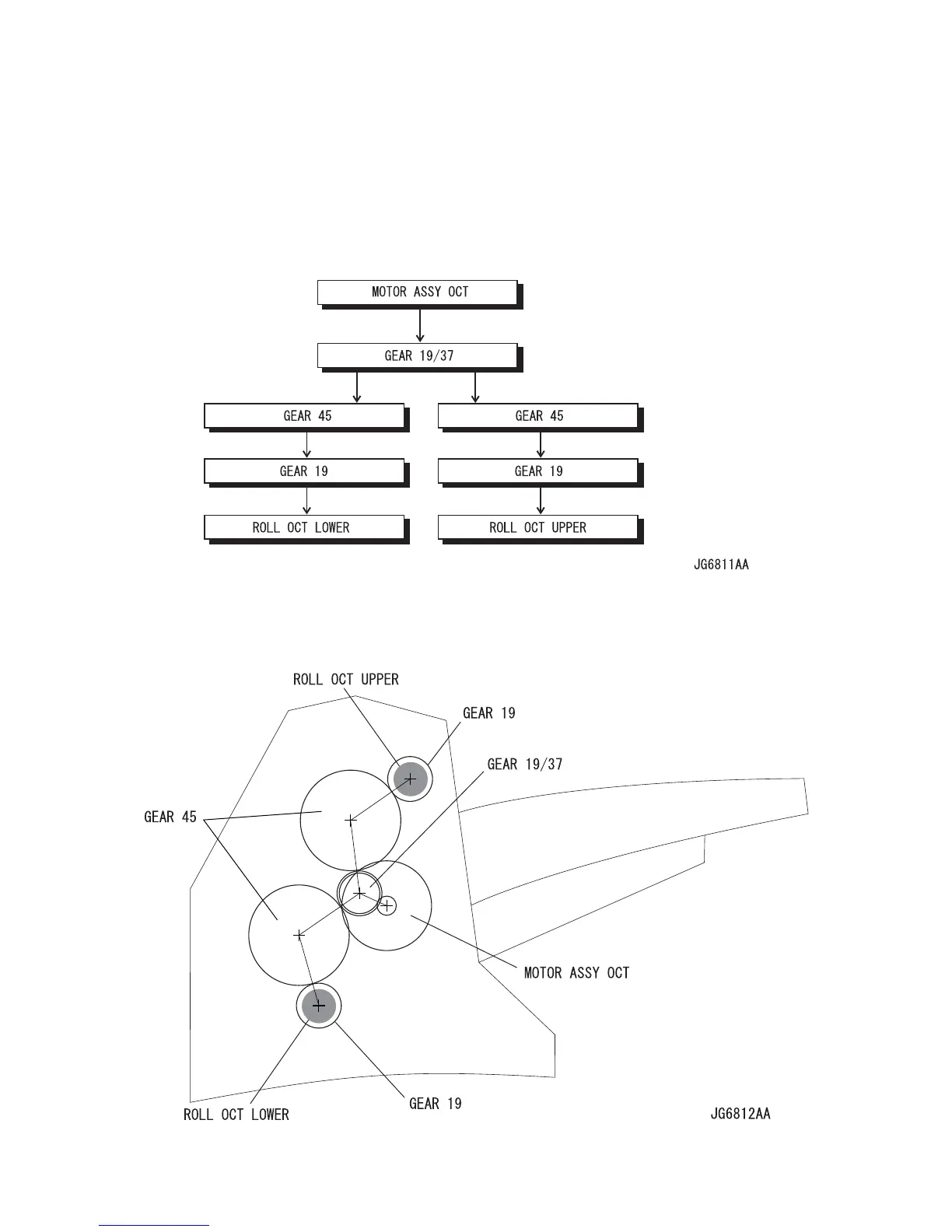

The rotating force of the MOTOR ASSY OCT is transmitted via various gears to
components that need mechanical driving force as shown in the flow given below.
11.2 Gear Layout
