Oki B6500 Service Manual

3 - 67
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP4.7 SENSOR REGI (PL 4.1.30)
Removal
1) Remove the COVER REAR 500 (PL 7.1) (RRP7.9).
2) Remove the COVER REAR (PL 1.1) (RRP1.1).
3) Release the hooks securing the COVER SENSOR (PL 4.1), and remove the COVER SENSOR
from the CHUTE ASSEMBLY REGI (Figure 1).
4) Release the hooks securing the SENSOR REGI, and remove the SENSOR REGI from the
COVER SENSOR (Figure 1).
5) Disconnect the connector (P/J241) of the HARNESS ASSEMBLY TRAY 1 (PL 4.1) from the SEN-
SOR REGI.

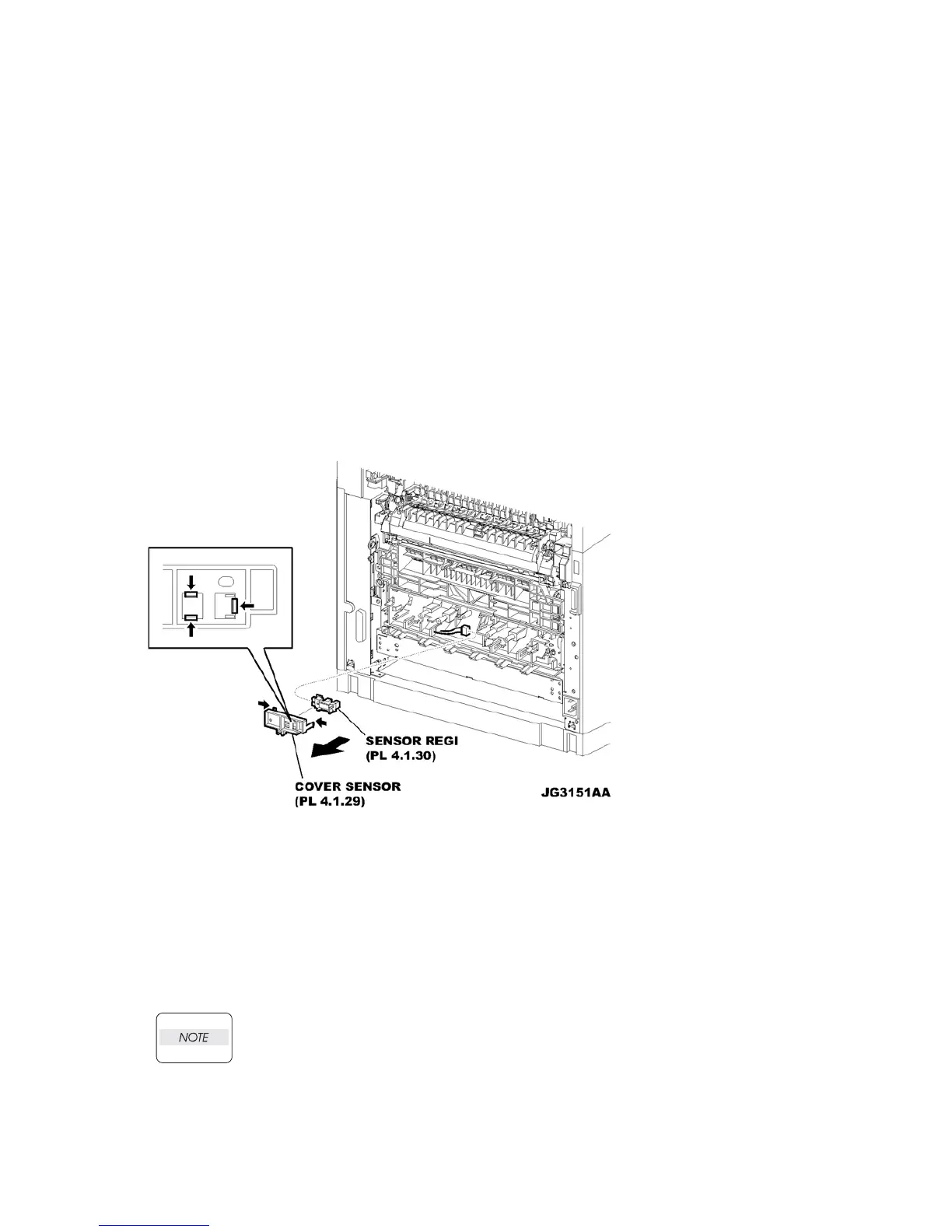

Figure 1. Registration Sensor
Replacement
1) Connect the connector (P/J241) of the HARNESS ASSEMBLY TRAY 1 (PL 4.1) to the SENSOR
REGI.
2) Install the SENSOR REGI to the COVER SENSOR (PL 4.1), and secure it using hooks (Figure 1).
3) Install the COVER SENSOR to the CHUTE ASSEMBLY REGI, and secure it using hooks (Figure
1).
4) Install the COVER REAR (PL 1.1) (RRP1.1)
There are 2 kinds of screws, make sure they are installed correctly.
5) Install the COVER REAR 500 (PL 7.1) (RRP7.9).

Oki B6500 Specifications

General

Color	No
Duplex printing	Yes
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	45 ppm
Flash memory	512 MB
Storage media	HDD
Internal memory	128 MB
Maximum internal memory	640 MB
Internal storage capacity	40 GB
Total input capacity	700 sheets
Total output capacity	500 sheets
Maximum input capacity	1800 sheets
Power requirements	230V
Standard media sizes	3\
Power consumption (active)	880 W
Compatible operating systems	Windows, XP (Home, Professional); 2000 (Workstation, Professional, Server, Advanced Server – SP4 +); NT 4.0 (Workstation, Server – SP6 +); ME; 98/98 SE; Mac OS 9.1+/10.1+; Unix (Sun Solaris 8, 7, 2.5; HP-UX 11.0/ 10.20); Linux (Redhat 6.x).
Envelopes sizes	C5, DL
Media weight (tray 1)	60 - 216 gsm
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
PCL fonts	86
Printer fonts	PCL, PostScript
Maximum duty cycle	200000 pages per month
Number of PostScript fonts	136
Power consumption (standby)	110 W
Power consumption (printing)	1200 W

Weight and Dimensions

Dimensions (WxDxH)	422 x 465 x 404 mm
