3 - 221
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP12.7 SENSOR LOW PAPER (PL12.1)
Removal
1) Remove the COVER RIGHT PLATE (PL 12.1.1). (RRP12.2)
2) Remove the 2 screws securing the HLD LOW PAPER ASSY (PL 12.1.29) to the FRAME CVR
R550 (PL 12.1).
3) Disconnect the connector (P/J810) of the HARNESS LOW PAPER (PL 12.1.33) from the SEN-
SOR LOW PAPER of the HLD LOW PAPER ASSY.
4) Remove the HLD LOW PAPER ASSY.
5) Release the hooks of the SENSOR LOW PAPER, and remove it from the HLD LOW PAPER
ASSY.
Replacement
1) Install the SENSOR LOW PAPER to the HLD LOW PAPER ASSY (PL 12.1.29).
2) Connect the connector (P/J810) of the HARNESS LOW PAPER (PL 12.1.33) to the SENSOR
LOW PAPER of the HLD LOW PAPER ASSY.
3) Install the HLD LOW PAPER ASSY to the FRAME CVR R550 (PL 12.1) using the 2 screws.
4) Install the COVER RIGHT PLATE (PL 12.1.1). (RRP12.2)

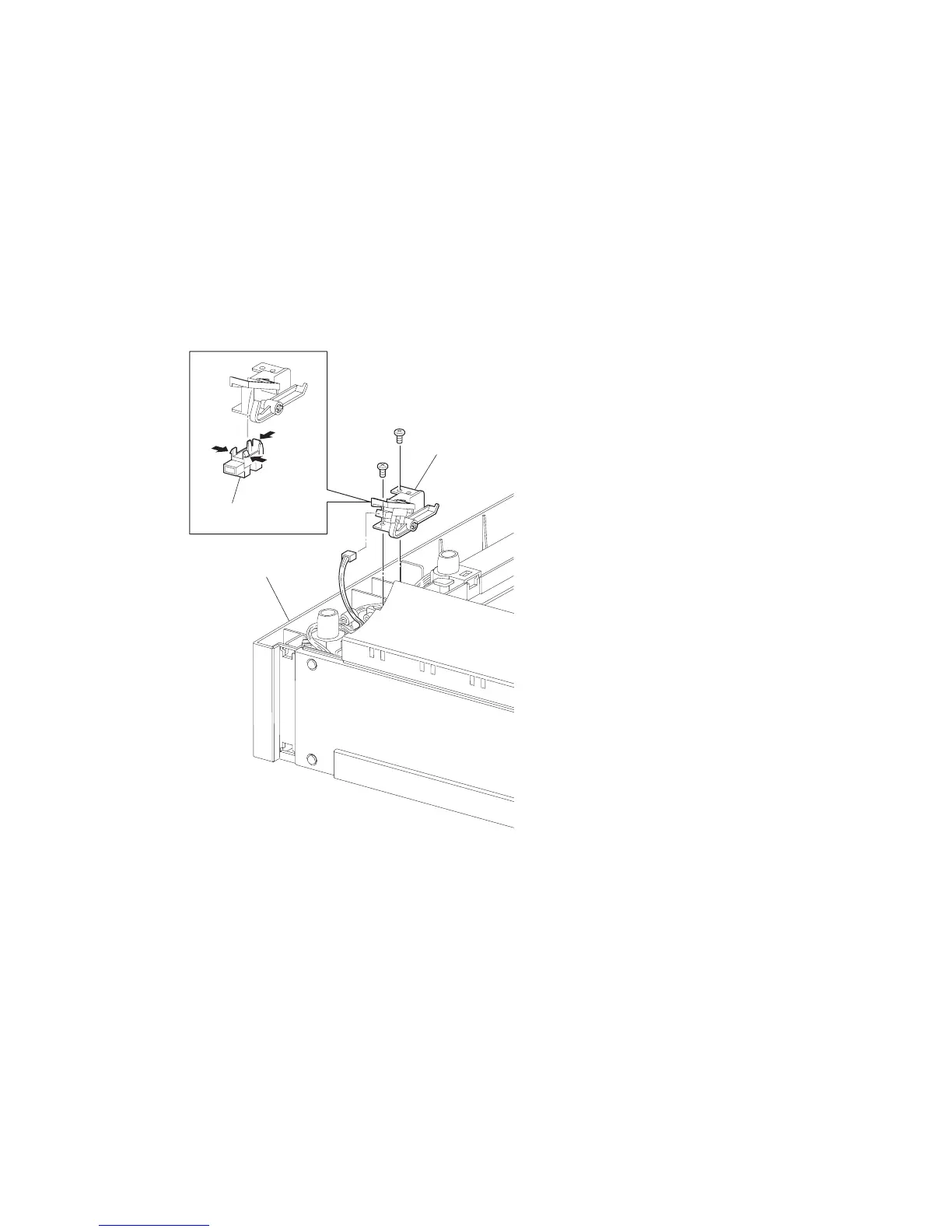

FRAME CVR R550
(PL20.1.28)
SENSOR LOW PAPER
(PL20.1.30)
HLD LOW PAPER ASSY
(PL20.1.29)
JG3508AA
To Next Page
