Chapter 3 Removal and Replacement Procedures (RRPs)
RRP10.2 HSG UPPER ASSY (PL10.1)
Removal
1) Remove the 4 screws (gold tapping, 8mm) securing the HSG UPPER ASSY to the Option
Duplex.
2) Remove the HSG UPPER ASSY from the COVER HSG DUP (PL 10.1).
Replacement
1) Install the HSG UPPER ASSY to the COVER HSG DUP (PL 10.1) using the 4 screws (gold
tapping, 8mm).

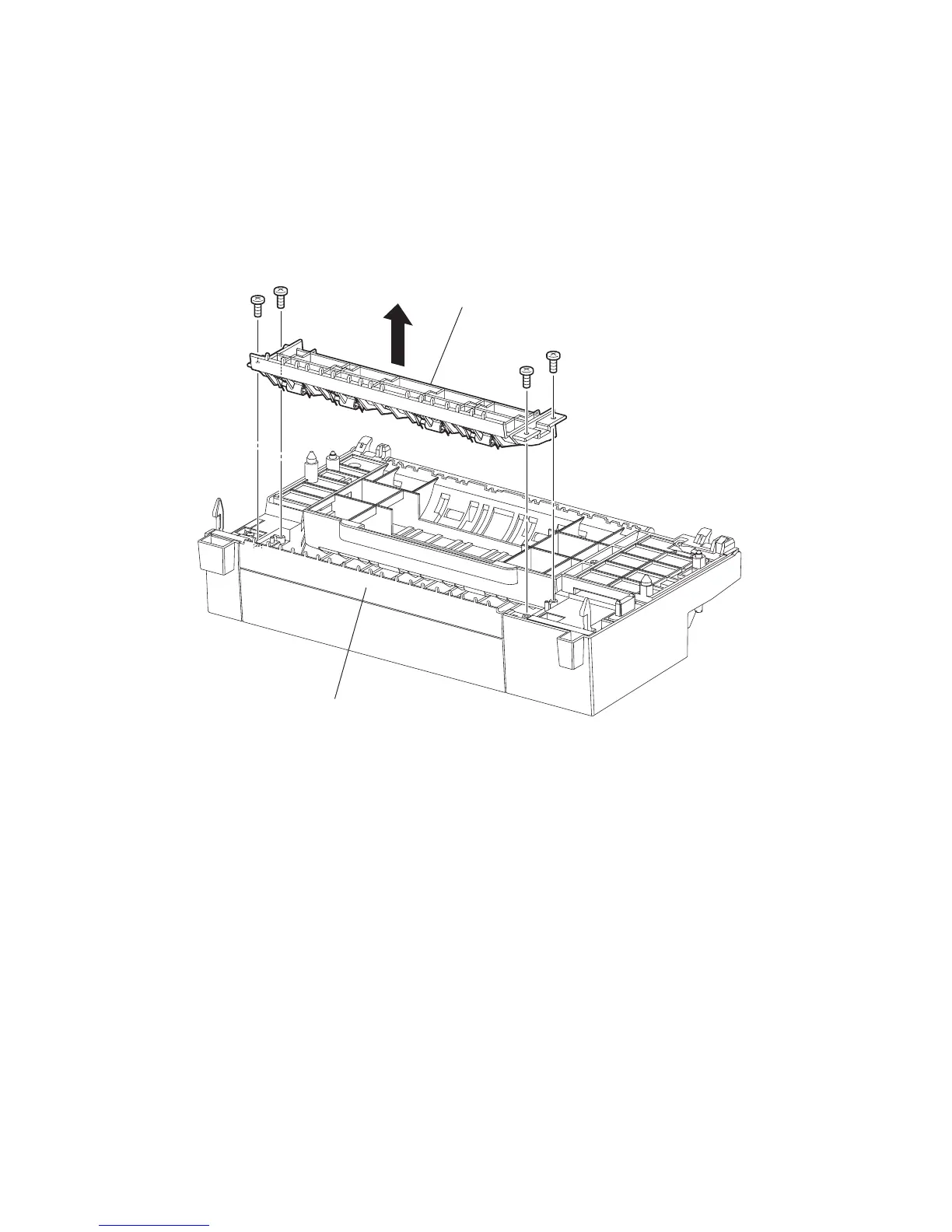

HSG UPPER ASSY
(PL21.1.1)
COVER HSG DUP
(PL21.1.18)
