3 - 86
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP5.7 GUIDE TRAY RIGHT (PL 5.1)
Removal
1) Remove the EP CARTRIDGE and Paper Cassettes.
2) Remove the COVER REAR 500 (PL 7.1) (RRP7.9).
3) Remove the COVER REAR (PL 1.1) (RRP1.1).
4) Remove the FUSER ASSEMBLY (PL 6.1) (RRP6.8).
5) Remove the COVER LEFT (PL 1.1) (RRP1.3).
6) Remove the COVER RIGHT (PL 1.1) (RRP1.2).
7) Remove the COVER EXIT 500 (PL 1.1). (RRP7.1)
8) Remove the 500 EXIT ASSEMBLY (PL 7.1) (RRP7.2).
9) Remove the COVER TOP (PL 1.1) (RRP1.4).
10) Remove the COVER FRONT (PL 1.1) (RRP1.5).
11) Place the printer down on its right side.
12) Disconnect the connector (P/J260) of the HARNESS ASSEMBLY LOW PAPER SNR from the
GUIDE TRAY RIGHT (Figure 1).
13) Remove the screw (silver, 6mm) securing the GUIDE TRAY RIGHT to the frame (Figure 1).
14) Lift up the hook of the GUIDE TRAY RIGHT, and shift it in the direction of the arrow. Then, remove
the GUIDE TRAY RIGHT from the frame (Figure 1).

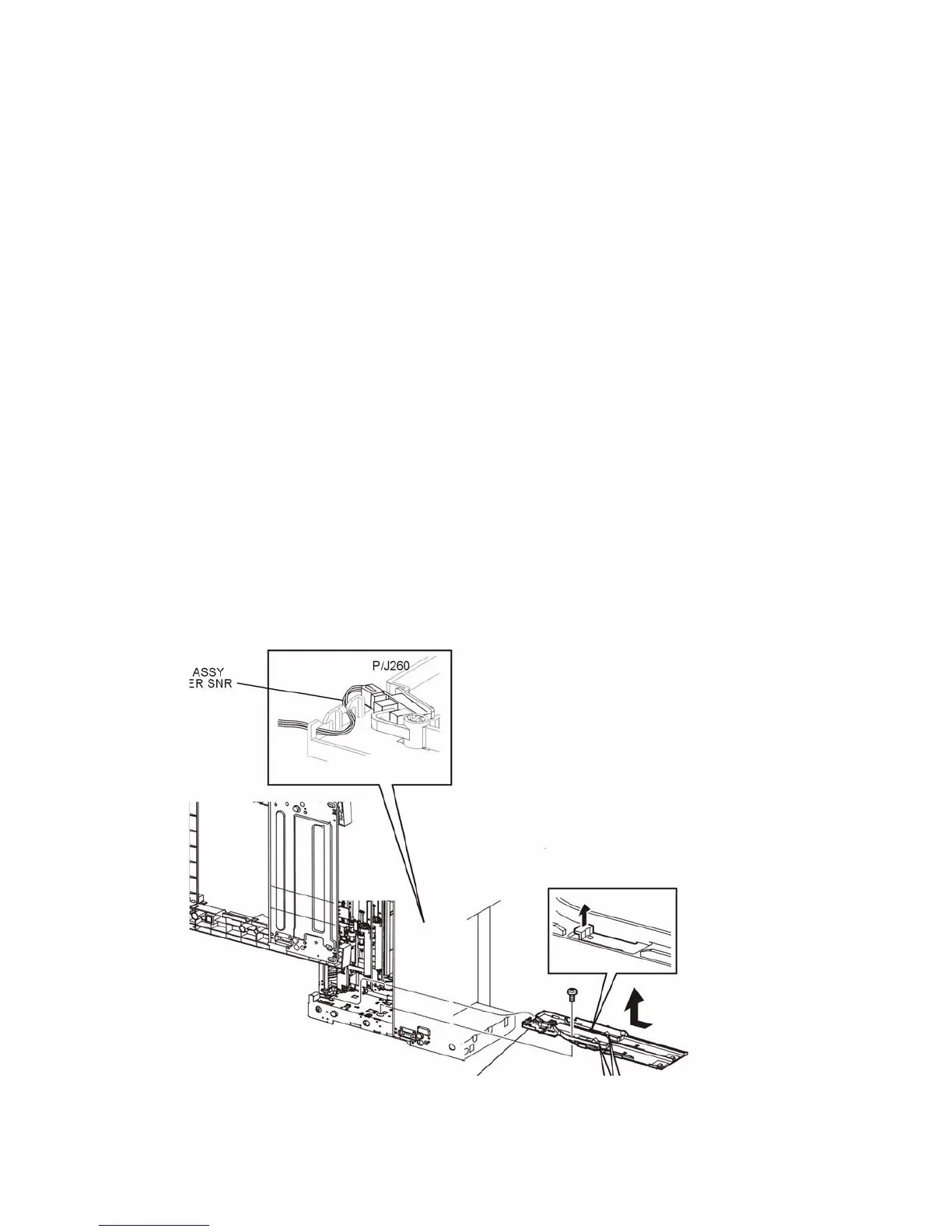

Figure 1. Right Tray Guide
To Next Page
