Oki B6500 Service Manual

6 – 12
Chapter 6 Principles of Operation
4.2 Layout of Paper Transport Path

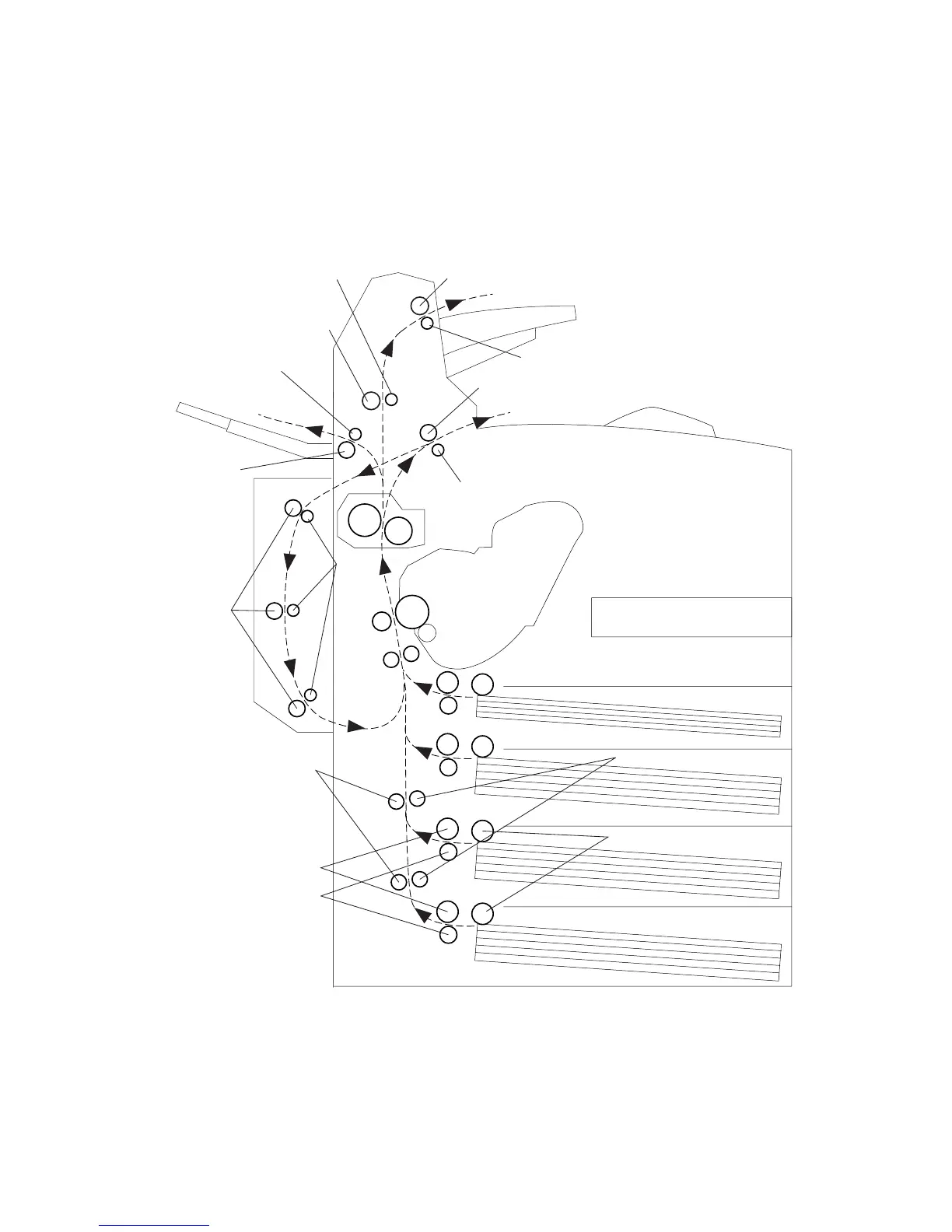

The following is a cross section of the JIGEN printer. Main components directly
associated with the paper path and transport are shown here.
Main components associated with transport of paper (when Option Duplex, Option 550
Feeder, Option OCT and 500 Paper Exit & Option Face Up Tray are installed):
ROLL ASSY FEED
ROLL ASSY RETARD
ROLL ASSY NUDGER
ROLL ASSY TURN
ROLL PINCH TURN
ROLL DUP
ROLL
PINCH
ROLL PINCH EXIT
JG6115AA
ROLL EXIT
ROLL OCT UPPER
ROLL OCT LOWER
ROLL PINCH
ROLL PINCH OCT
ROLL FU
ROLL PINCH FU

Oki B6500 Specifications

General

Color	No
Duplex printing	Yes
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	45 ppm
Flash memory	512 MB
Storage media	HDD
Internal memory	128 MB
Maximum internal memory	640 MB
Internal storage capacity	40 GB
Total input capacity	700 sheets
Total output capacity	500 sheets
Maximum input capacity	1800 sheets
Power requirements	230V
Standard media sizes	3\
Power consumption (active)	880 W
Compatible operating systems	Windows, XP (Home, Professional); 2000 (Workstation, Professional, Server, Advanced Server – SP4 +); NT 4.0 (Workstation, Server – SP6 +); ME; 98/98 SE; Mac OS 9.1+/10.1+; Unix (Sun Solaris 8, 7, 2.5; HP-UX 11.0/ 10.20); Linux (Redhat 6.x).
Envelopes sizes	C5, DL
Media weight (tray 1)	60 - 216 gsm
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
PCL fonts	86
Printer fonts	PCL, PostScript
Maximum duty cycle	200000 pages per month
Number of PostScript fonts	136
Power consumption (standby)	110 W
Power consumption (printing)	1200 W

Weight and Dimensions

Dimensions (WxDxH)	422 x 465 x 404 mm
