Oki B6500 Service Manual

3 - 261
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP12.23HANDLE EXTENSION 550 (PL12.1)
Removal
1) Remove the COVER CST (PL 12.3.1) from the 550 PAPER CASSETTE (PL 12.3.50).
2) Remove the 2 screws on the back side of the HANDLE EXTENSION 550 (PL 12.3.41).
3) Release the 5 hooks at the upper side and the 2 hooks at the lower side of the HANDLE
EXTENSION 550 (PL 12.3.41). then, remove the HANDLE EXTENSION 550 from the HOUS-
ING EXTENSION 550 (PL 12.3.42).
When removing the HANDLE EXTENSION 550, the LOW INDICATOR (PL 12.3.37) and
LOW IND FRONT (PL 12.3.38) will be detached, and be careful not to lose them.
Replacement
1) Install the LOW INDICATOR (PL 12.3.37) and LOW IND FRONT (PL 12.3.38). (RRP12.26)
2) Put the 5 hooks on the upper side and 2 hooks on the lower side of the HANDLE EXTENSION
550 to the HOUSING EXTENSION 550 (PL 12.3.42),
3) Secure the HANDLE EXTENSION 550 (PL 12.3.41) to the HOUSING EXTENSION 550 (PL
12.3.42) using the 2 screws.
4) Install the COVER CST (PL 12.3.1) to the 550 PAPER CASSETTE.
After assembling, make sure that the LOW IND FRONT moves up-and-down in conjunc-
tion with the up-and-down movement of the PLATE ASSY BTM.

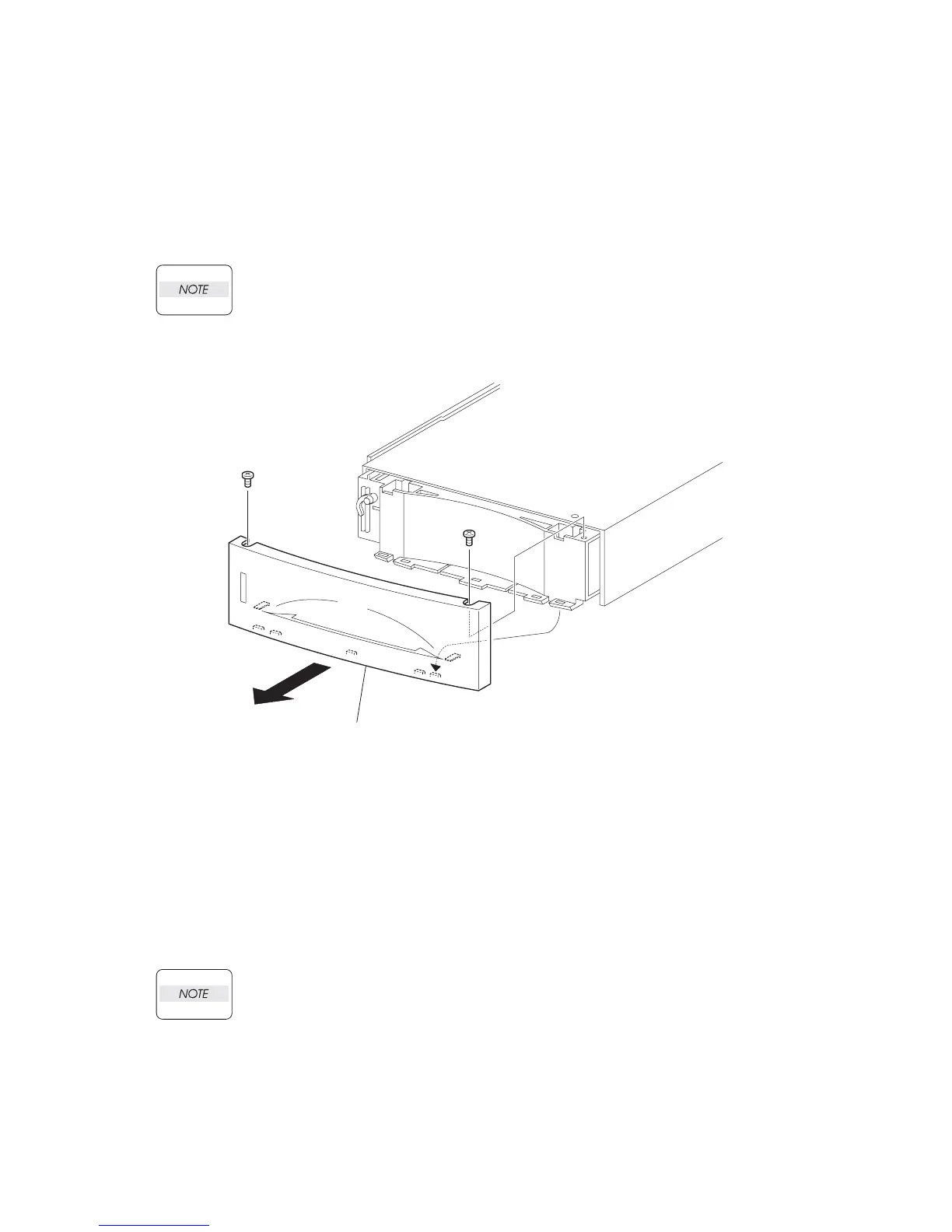

HANDLE EXTENSION 550
(PL20.3.41)
JG3540A
A

Oki B6500 Specifications

General

Color	No
Duplex printing	Yes
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	45 ppm
Flash memory	512 MB
Storage media	HDD
Internal memory	128 MB
Maximum internal memory	640 MB
Internal storage capacity	40 GB
Total input capacity	700 sheets
Total output capacity	500 sheets
Maximum input capacity	1800 sheets
Power requirements	230V
Standard media sizes	3\
Power consumption (active)	880 W
Compatible operating systems	Windows, XP (Home, Professional); 2000 (Workstation, Professional, Server, Advanced Server – SP4 +); NT 4.0 (Workstation, Server – SP6 +); ME; 98/98 SE; Mac OS 9.1+/10.1+; Unix (Sun Solaris 8, 7, 2.5; HP-UX 11.0/ 10.20); Linux (Redhat 6.x).
Envelopes sizes	C5, DL
Media weight (tray 1)	60 - 216 gsm
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
PCL fonts	86
Printer fonts	PCL, PostScript
Maximum duty cycle	200000 pages per month
Number of PostScript fonts	136
Power consumption (standby)	110 W
Power consumption (printing)	1200 W

Weight and Dimensions

Dimensions (WxDxH)	422 x 465 x 404 mm
