Chapter 3 Removal and Replacement Procedures (RRPs)
RRP4.8 SENSOR NO PAPER (PL 4.1.38)
Removal
1) Open the COVER OPEN (PL 1.1).
2) Remove the COVER REAR 500 (PL 7.1) (RRP7.9).
3) Remove the FUSER ASSEMBLY (PL 6.1) (RRP6.8).
4) Lift up the 150 FEEDER ASSEMBLY a little, insert a screwdriver through the space left by the
FUSER ASSEMBLY, and remove the screw (gold, 8mm) securing the HOLDER NO PAPER SEN-
SOR (PL 4.1) (Figure 1).
5) Remove the HOLDER NO PAPER SENSOR from the 150 FEEDER ASSEMBLY.
6) Release the hooks securing the SENSOR NO PAPER to the HOLDER NO PAPER SENSOR, and
remove the SENSOR NO PAPER (Figure 1).
7) Disconnect the HARNESS ASSEMBLY TRAY 1 (PL 4.1) from the connector (P/J240) of the SEN-
SOR NO PAPER (Figure 1).

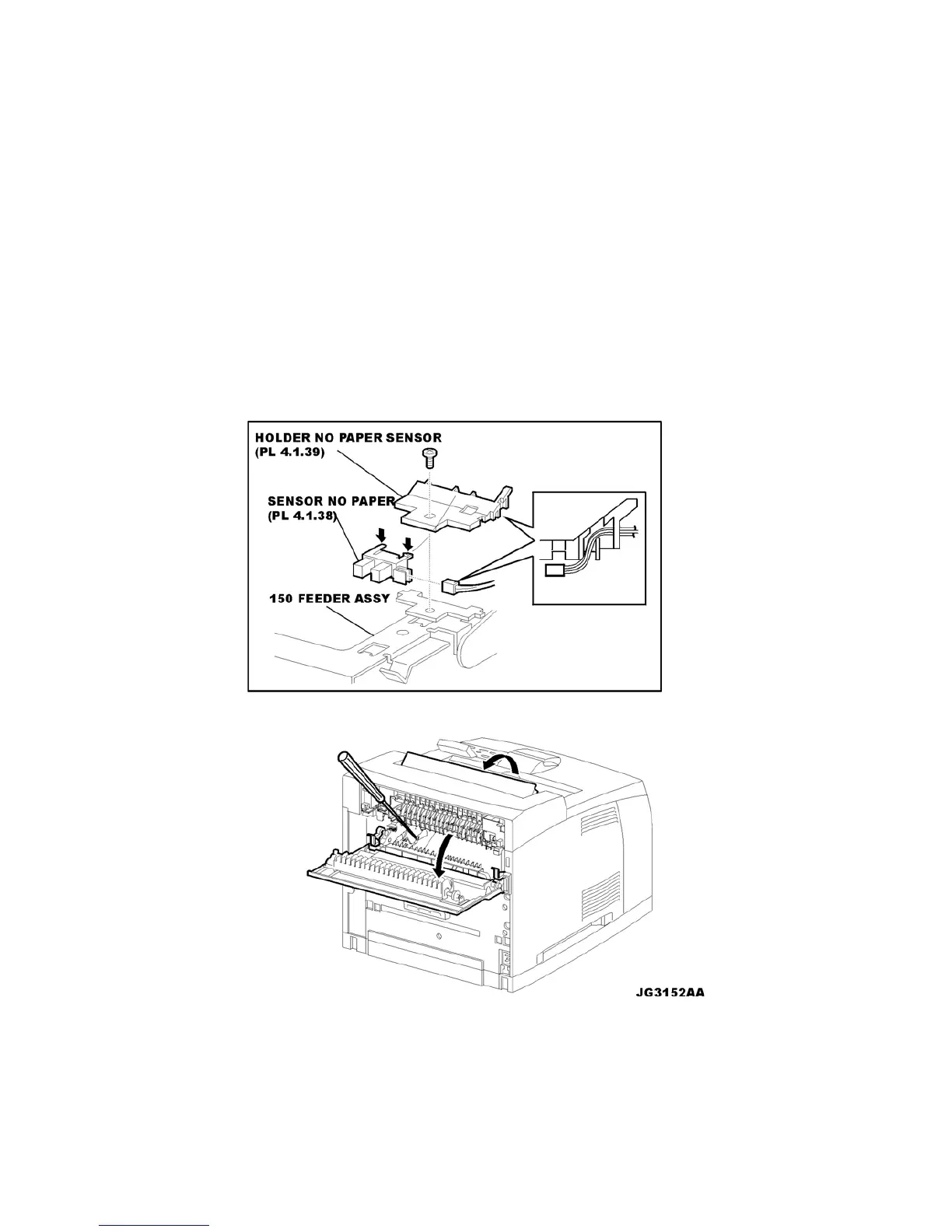

Figure 1. No Paper Sensor
Replacement
1) Connect the connector (P/J240) of the HARNESS ASSEMBLY TRAY 1 (PL 4.1) to the connector
of the SENSOR NO PAPER.
2) Install the SENSOR NO PAPER to the HOLDER NO PAPER SENSOR (PL 4.1), and secure it
using hooks (Figure 1).
