9 - 2
Chapter 9 ESS Options
2. Option Installation
2.1 Installing the HDD
1) Turn the printer power OFF and remove the power cord from the outlet.
2) Remove the COVER RIGHT (RRP1.2) (PL1.1.4)
3) Remove the SHIELD ASSY WINDOW (RRP12.8) (PL12.1.15)
In the step that follows take care when seating the device. The pins are fragile and can be
easily damaged.

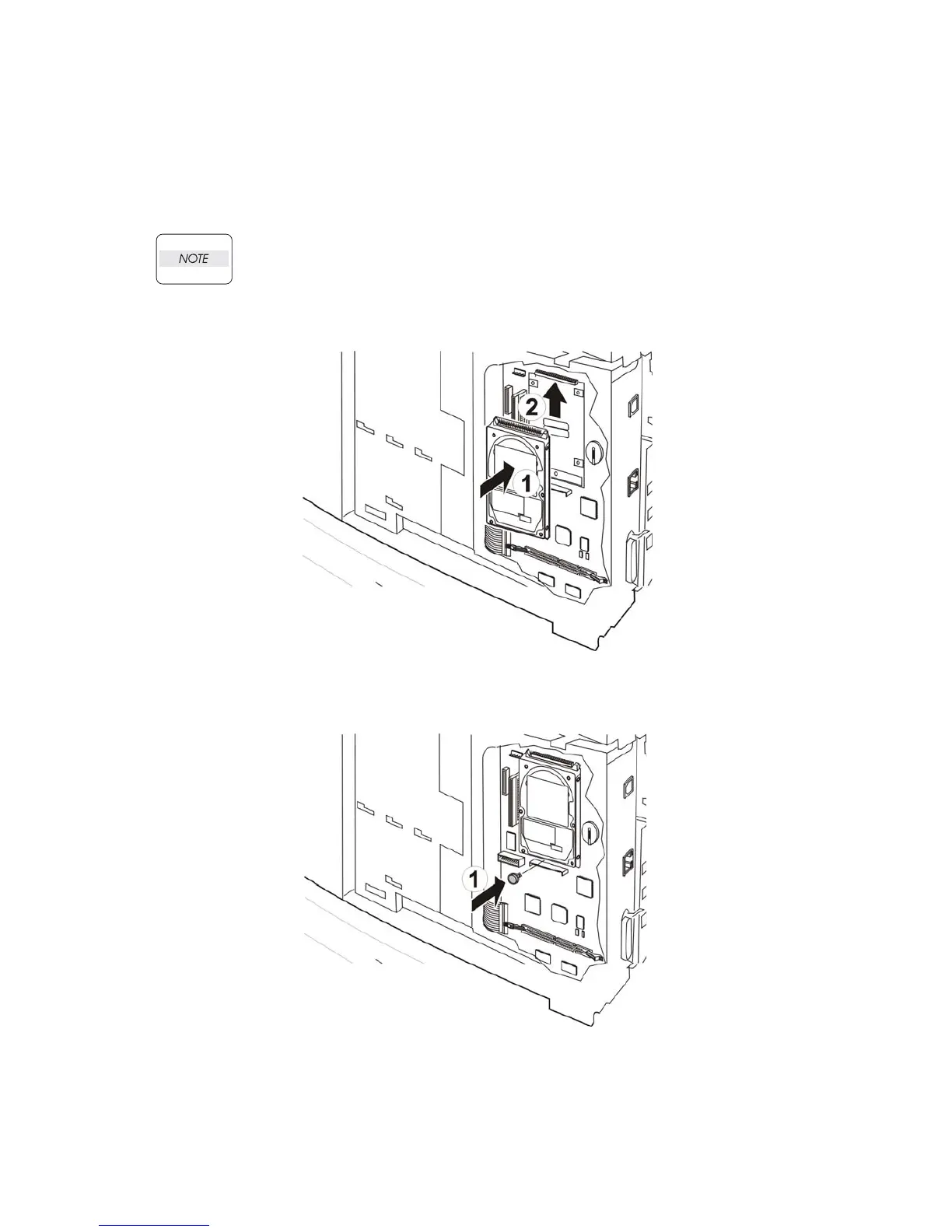

4) Seat the HDD in the ESS PWB (See figure below)
5) Push the latch into position to secure the HDD (See figure below)
6) Replace the SHIELD ASSY WINDOW.
7) Replace the COVER RIGHT.
8) Plug the power cord into the AC outlet and turn the printer power ON.
