Chapter 3 Removal and Replacement Procedures (RRPs)
RRP9.8 SHIELD ASSEMBLY WINDOW (PL 9.1)
Removal
1) Remove the COVER RIGHT (PL 1.1) (RRP1.2).
2) Remove the 2 screws securing the SHIELD ASSEMBLY WINDOW to the frame (Figure 1).
3) Remove the SHIELD ASSEMBLY WINDOW.

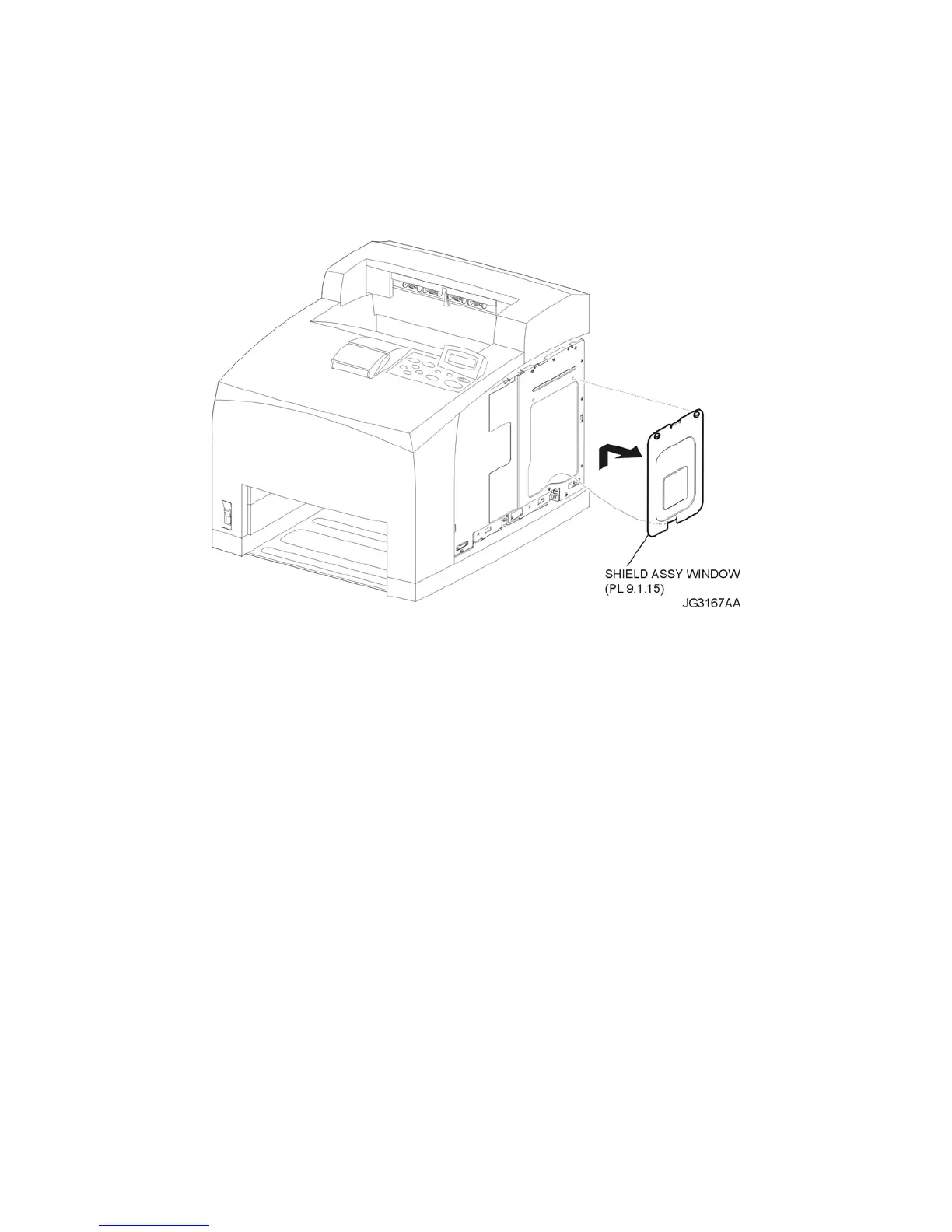

Figure 1. Window Shield Assembly
Replacement
1) Install the SHIELD ASSEMBLY WINDOW to the frame using the 2 screws (Figure 1).
2) Install the COVER RIGHT (PL 1.1) (RRP1.2).
