Oki B6500

3 - 122
Chapter 3 Removal and Replacement Procedures (RRPs)
RRP7.3 CHUTE UP EXIT, CHUTE LOW EXIT (PL 7.1)
Removal
1) Remove the COVER REAR 500 (PL 7.1) (RRP7.9).
2) Remove the COVER REAR (PL 1.1) (RRP1.1).
3) Remove the COVER LEFT (PL 1.1) (RRP1.3).
4) Remove the COVER RIGHT (PL 1.1) (RRP1.2).
5) Remove the COVER EXIT 500 (PL 1.1) (RRP7.1).
6) Remove the 500 EXIT ASSEMBLY (PL 7.1) (RRP7.2).
7) Remove the 2 screws (gold tapping, 8mm) securing the CHUTE UP EXIT to the CHUTE LOW
EXIT (Figure 1).
8) Separate the CHUTE UP EXIT and CHUTE LOW EXIT (Figure 1).

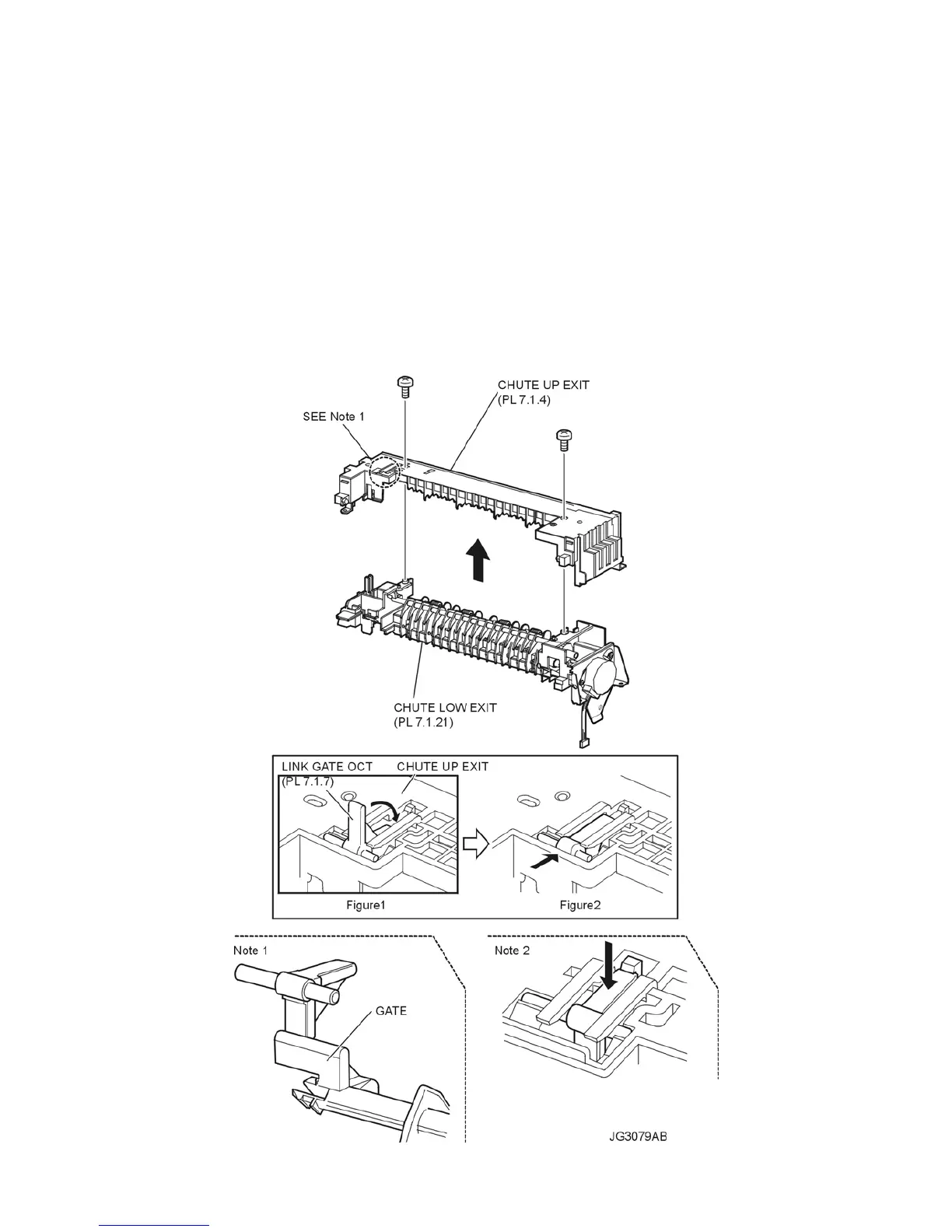

Figure 1. Chute Up & Low Exit
