3 - 142
Chapter 3 Removal and Replacement Procedures (RRPs)
13) Install the COVER RIGHT (PL 1.1) (RRP1.2).
14) Install the COVER LEFT (PL 1.1) (RRP1.3).
15) Install the FUSER ASSEMBLY (PL 6.1) (RRP6.8).
16) Install the COVER REAR (PL 1.1) (RRP1.1).
There are 2 kinds of screws, make sure they are installed correctly.
17) Install the COVER REAR 500 (PL 7.1) (RRP7.9).
18) Install the BTR ASSEMBLY (PL 6.1) (RRP6.9).

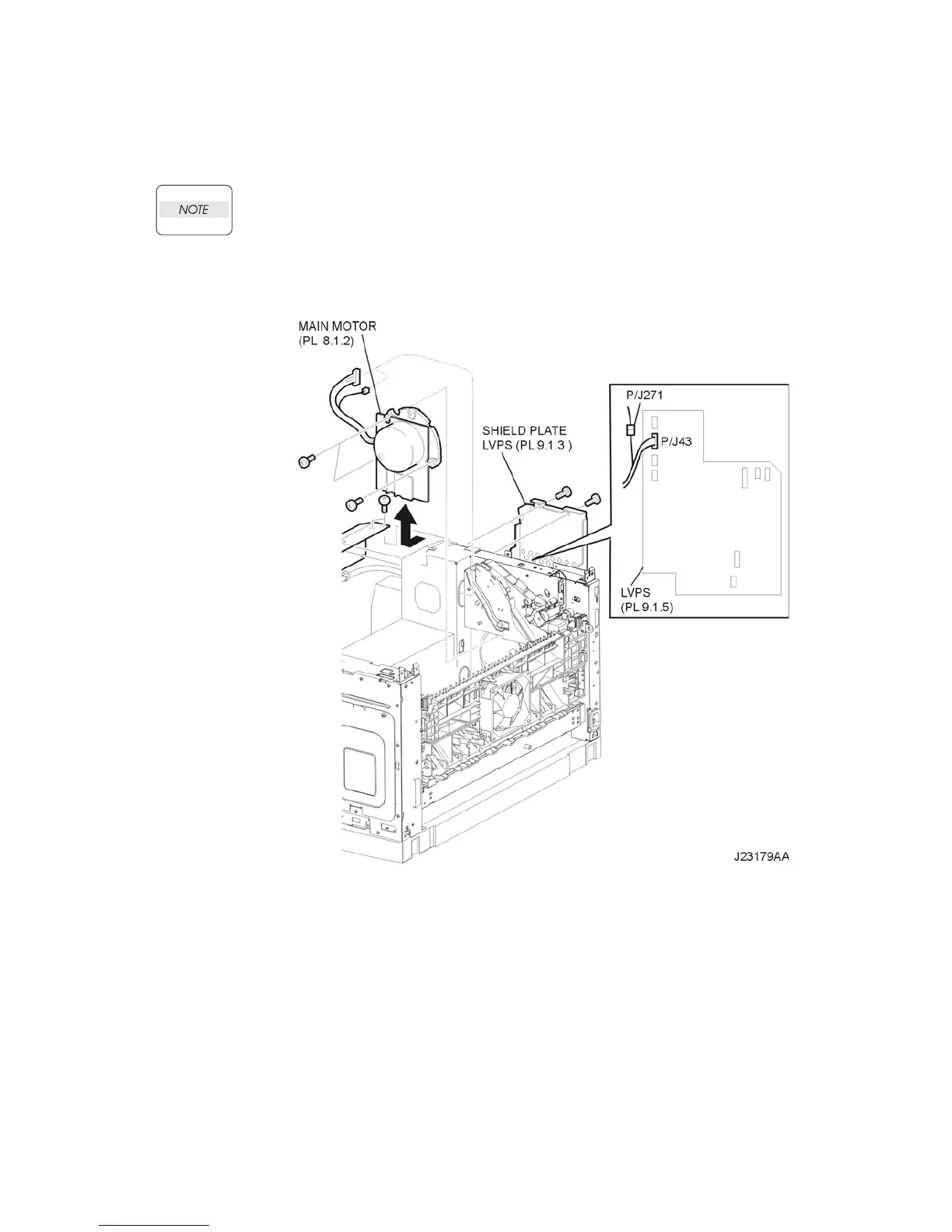

Figure 1. Main Motor
