3 - 167
Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement
1) Install the HSG LOWER DUP to the COVER HSG DUP (PL 10.1) using the 2 SCREW HINGEs
(PL 10.1).
2) Install the SPRING DAMPER (PL 10.1) to the COVER HSG DUP using the SCREW TAPPING
(PL 10.1).

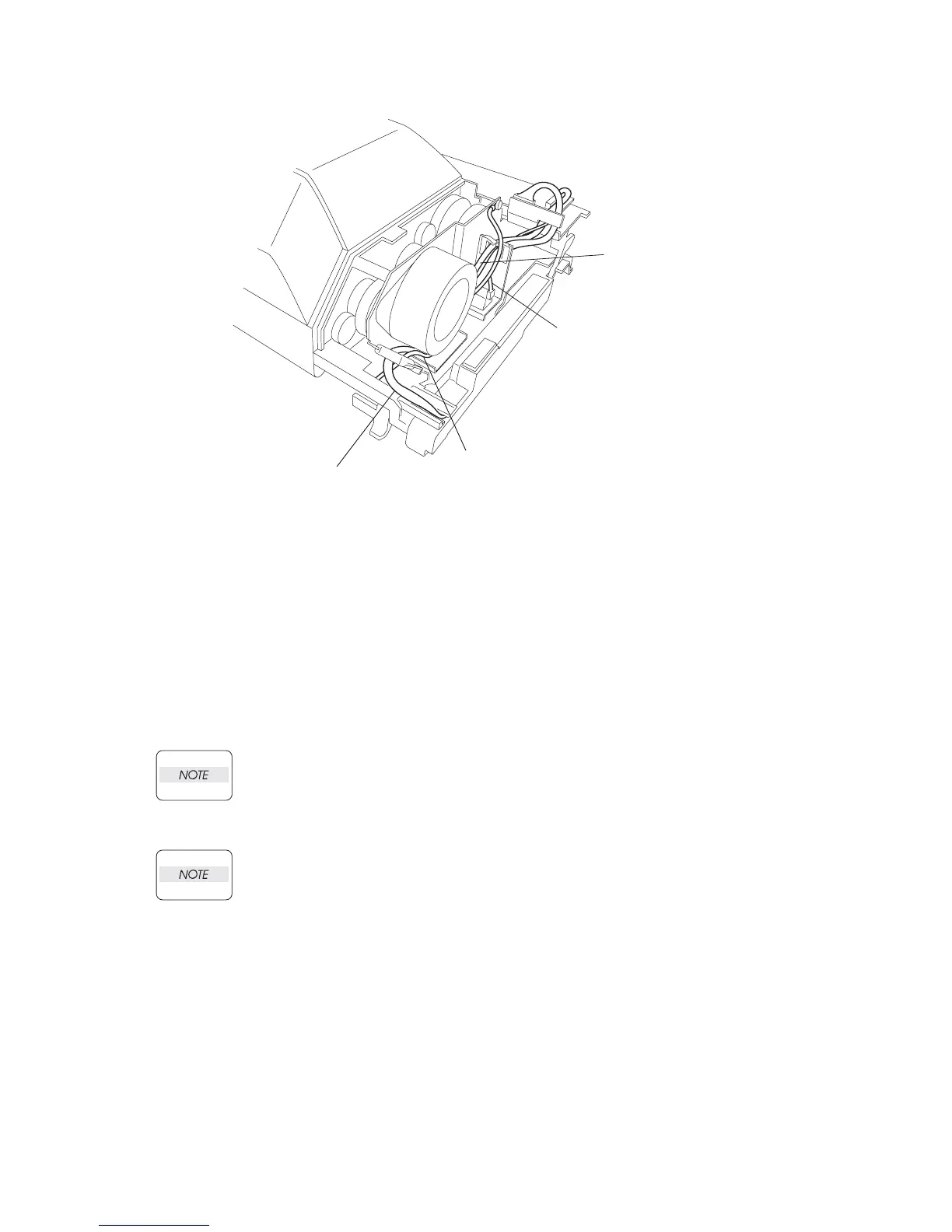

3) Secure the HARNESS ASSY DUP (PL 10.1) using harness clamps as shown in the figure.
4) Secure the HARNESS ASSY DUP EARTH using the screw (silver, 6mm).
5) Connect the connector (P/J50) of the HARNESS ASSY DUP to the PWBA DUPLEX (PL 10.1).
6) Install the COVER RIGHT (PL 10.1). (RRP10.10)
When installing, be sure to fit the positioning holes on the COVER RIGHT to the
bosses on the COVER HSG DUP.
7) Install the COVER LEFT (PL 10.1). (RRP10.9)
When installing, be sure to fit the positioning holes on the COVER LEFT to the
bosses on the COVER HSG DUP.
HARNESS ASSY DUP
HARNESS ASSY
DUP SNR
MOTOR DUPLEX
HARNESS ASSY
DUP EARTH
J23615AA
To Next Page
