Chapter 3 Removal and Replacement Procedures (RRPs)
1.2 Prohibited matter

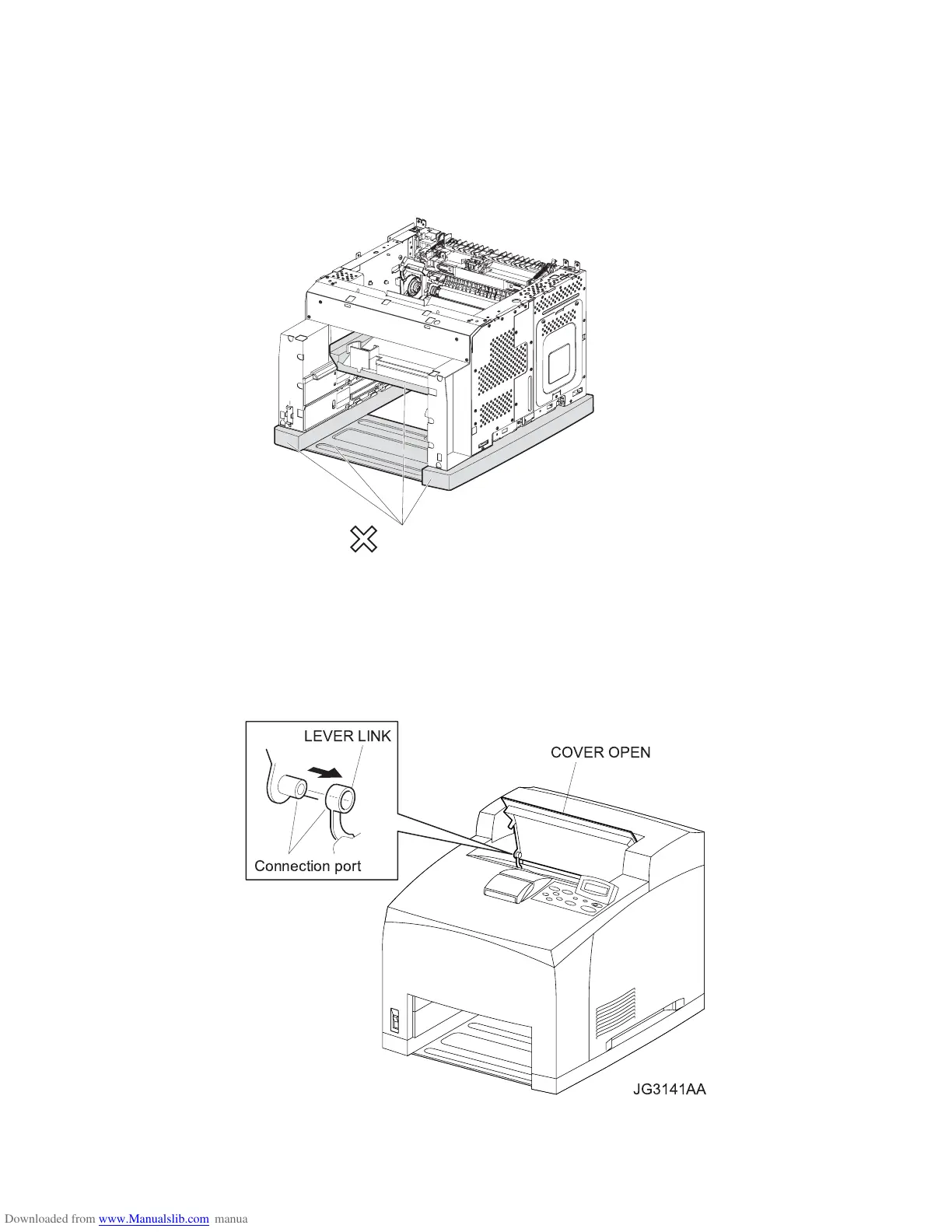

Do not remove the frame components shown in the figure below. Removing any of these components
will make the laser printer go out of alignment. If the frame components are removed or their screws
loosened by mistake, be sure to replace them again on a stable and firm horizontal work surface.
1.3 Confirmation after service
After a service, confirm that the COVER OPEN and the LEVER LINK are connected properly, and con-
firm the operation of the COVER OPEN by opening and closing it.
