3 - 12
Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement
1) Install the ROLL ASSEMBLY RETARD to the SHAFT RETARD (PL 2.1), and secure the ROLL
ASSEMBLY RETARD with the hook.
When installing, do not touch the roller surface of the ROLL ASSEMBLY RETARD.
Be sure to install the hook of the ROLL ASSEMBLY RETARD in the groove of the SHAFT
RETARD.
2) Move the HOLDER RETARD (PL 2.1) in the opposite direction of the arrow, and install it to the 150
PAPER CASSETTE.
After installing, make sure the HOLDER RETARD comes back to the former
position with the spring force of the SPRING RETARD (PL 2.1), when pushing
down the HOLDER RETARD and then release the finger from it.
3) Install the 150 PAPER CASSETTE to the printer.

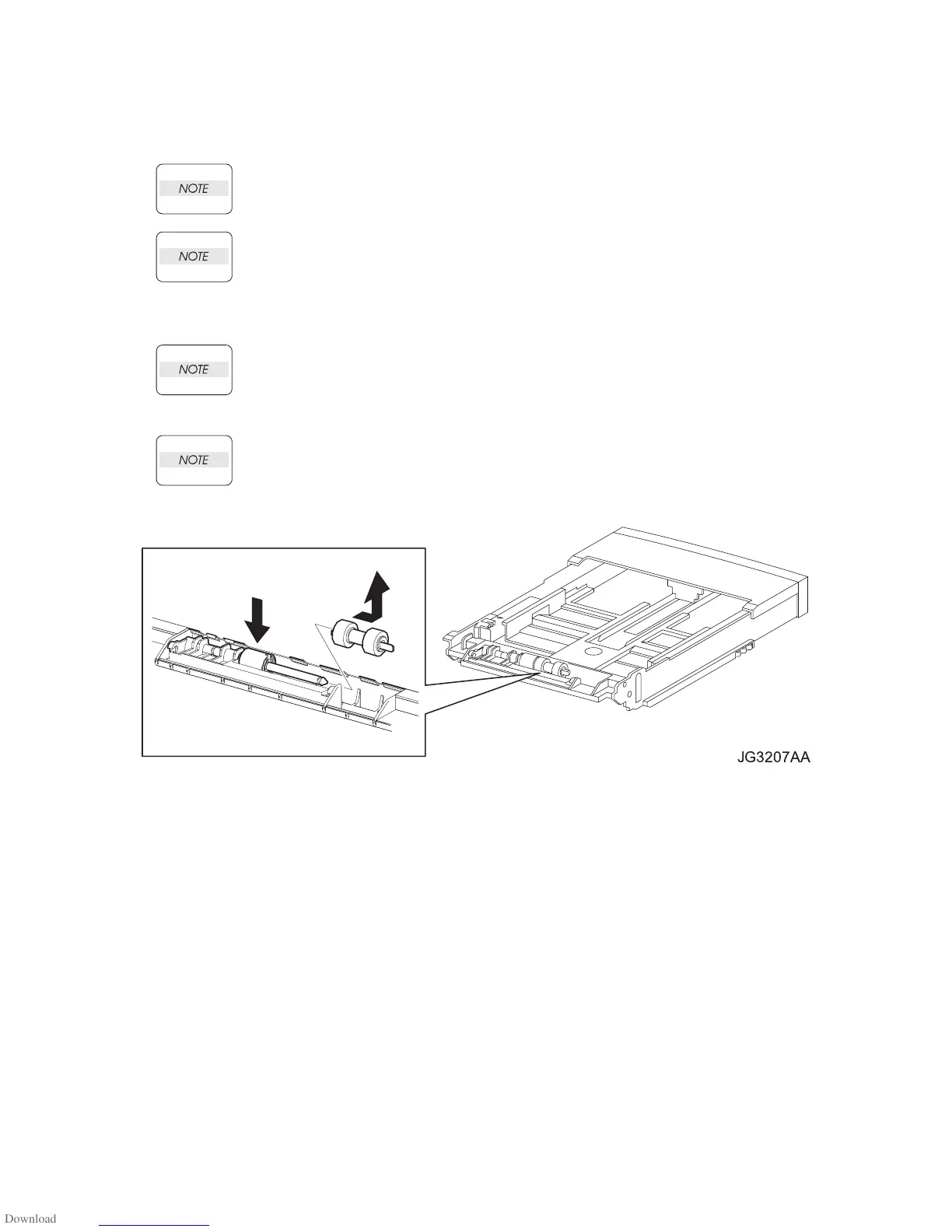

Other than the procedure above, it is possible to remove the ROLL ASSEMBLY RETARD
by pushing down the HOLDER RETARD (Figure 2).
Figure 2. Roll Assembly Retard
JG3207AA
