Chapter 3 Removal and Replacement Procedures (RRPs)
7) Remove the 2 screws (gold tapping, 8mm) from both right and left sides, as well as the 6 screws
(gold tapping, 8mm) on the back (Figure 2), that secure the HOUSING TOP 550 to the HOUSING
BASE 550 (PL 3.1).
8) Release the 4 hooks of the HOUSING TOP 550, and remove the HOUSING TOP 550 together
with the HOUSING EXTENSION 550 (PL 3.1), from the HOUSING BASE 550 (Figure 2).
9) Remove the 4 screws (gold tapping, 6mm) securing the COVER EXTENSION (PL 3.1) to the
HOUSING EXTENSION 550.
10) Remove the COVER EXTENSION from the HOUSING EXTENSION 550.

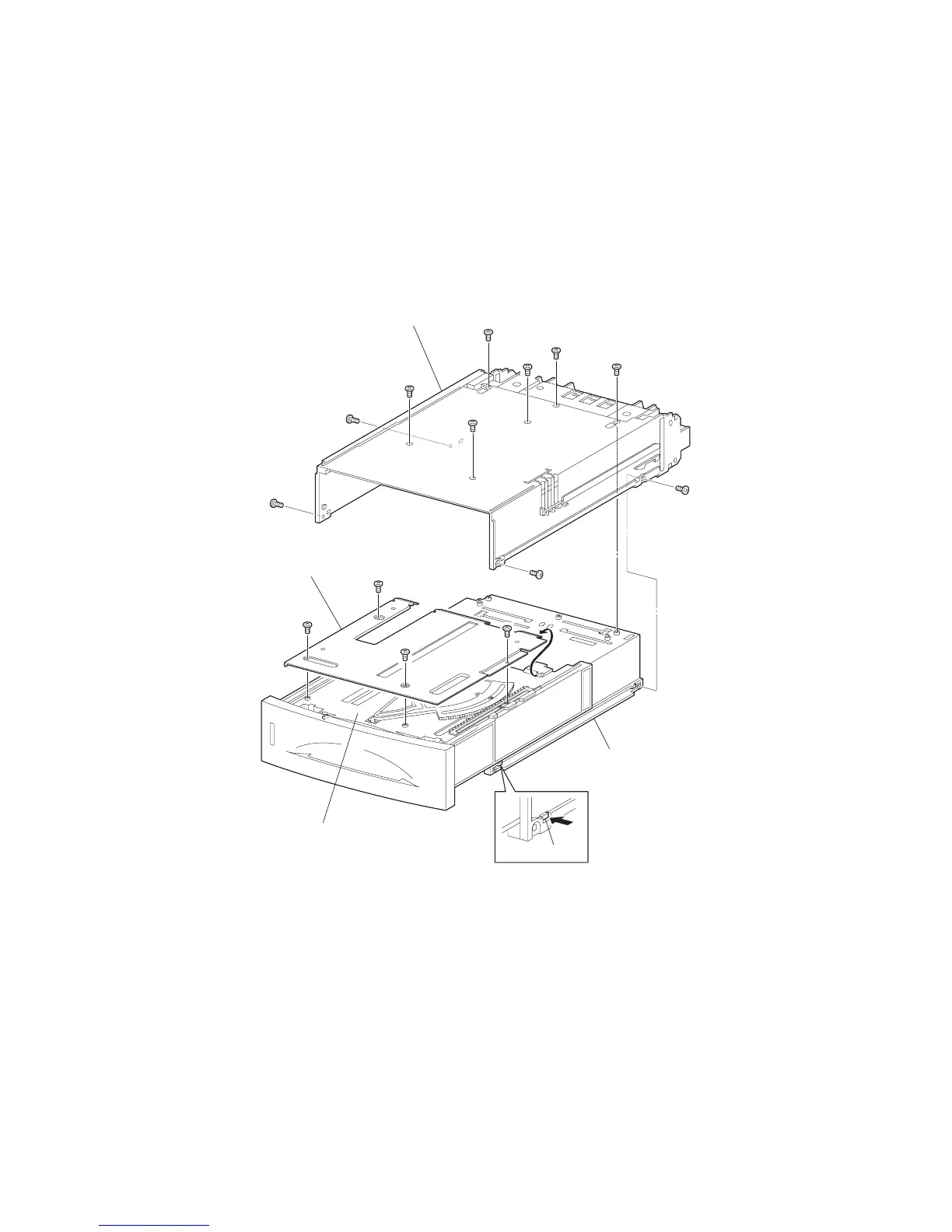

Figure 2. Housing
11) Lift the front of the RACK SIZE (PL 3.1) a little, and turn it in the direction of the arrow to remove it
from the HOUSING EXTENSION 550 (Figure 3).
HOUSING TOP 550
(PL4.1.16)
HOUSING EXTENSION 550
(PL4.1.42)
HOUSING BASE 550
(PL4.1.44)
COVER EXTENSION
(PL4.1.31)
JG3020AA
HOOK
(PL 3.1.44)
(PL 3.1.31)
(PL 3.1.42)
(PL 12.3)
