3 - 193
Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement

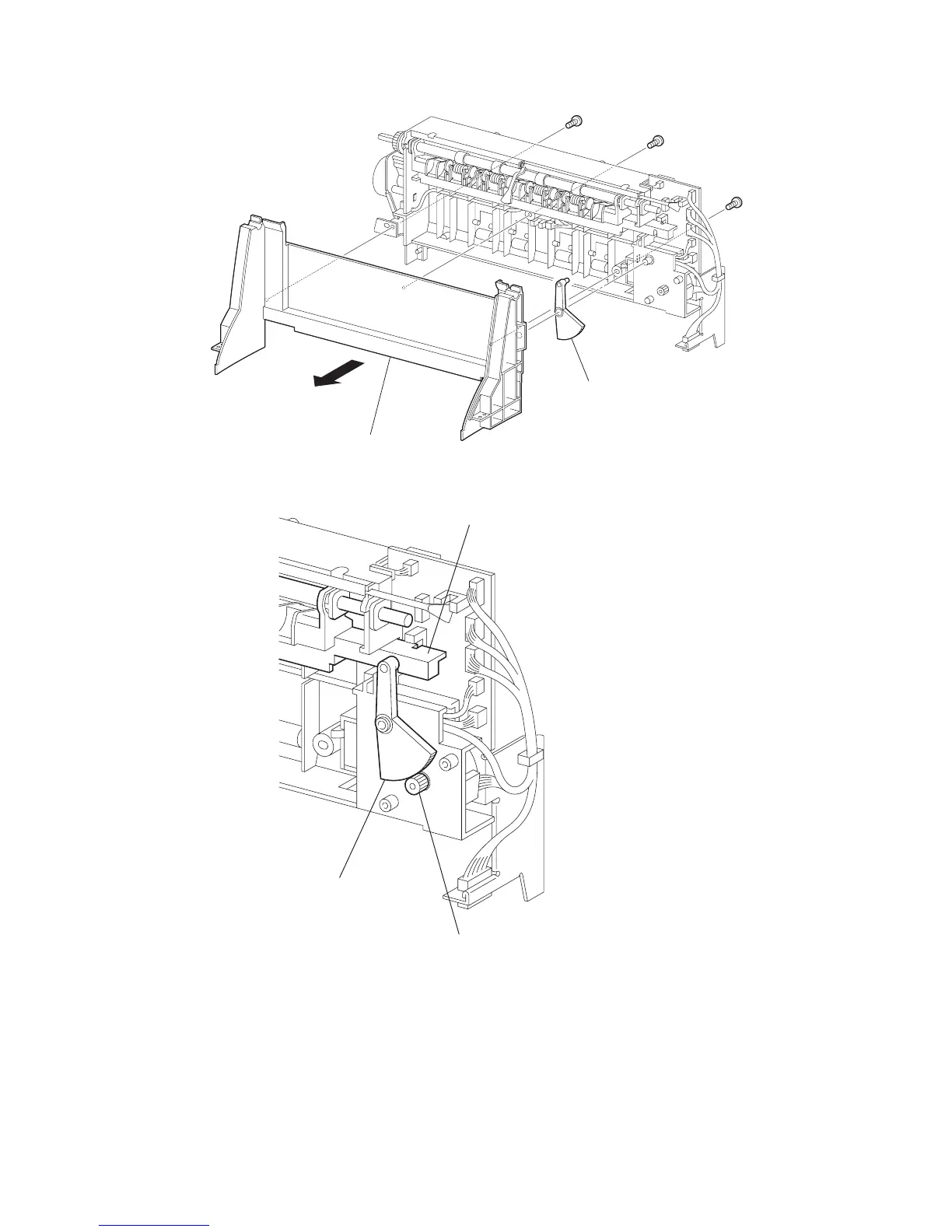

1) Make sure that the GEAR CAM (PL 11.1) and the GEAR of the MOTOR ASSY OFFSET (PL
11.1) are engaged, and the boss of the GEAR CAM is in the groove of the CHUTE OFFSET
(PL 11.1).
2) Secure the COVER FRONT to the Option OCT using the 3 screws (gold tapping, 8mm).
COVER FRONT
(PL23.1.45)
GEAR CAM
(PL23.1.28)
JG3805AC
GEAR CAM
(PL23.1.28)
CHUTE OFFSET
(PL23.1.38)
GEAR OF MOTOR ASSY OFFSET
(PL23.1.20)
JG3806AA
To Next Page
