3 - 239
Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement

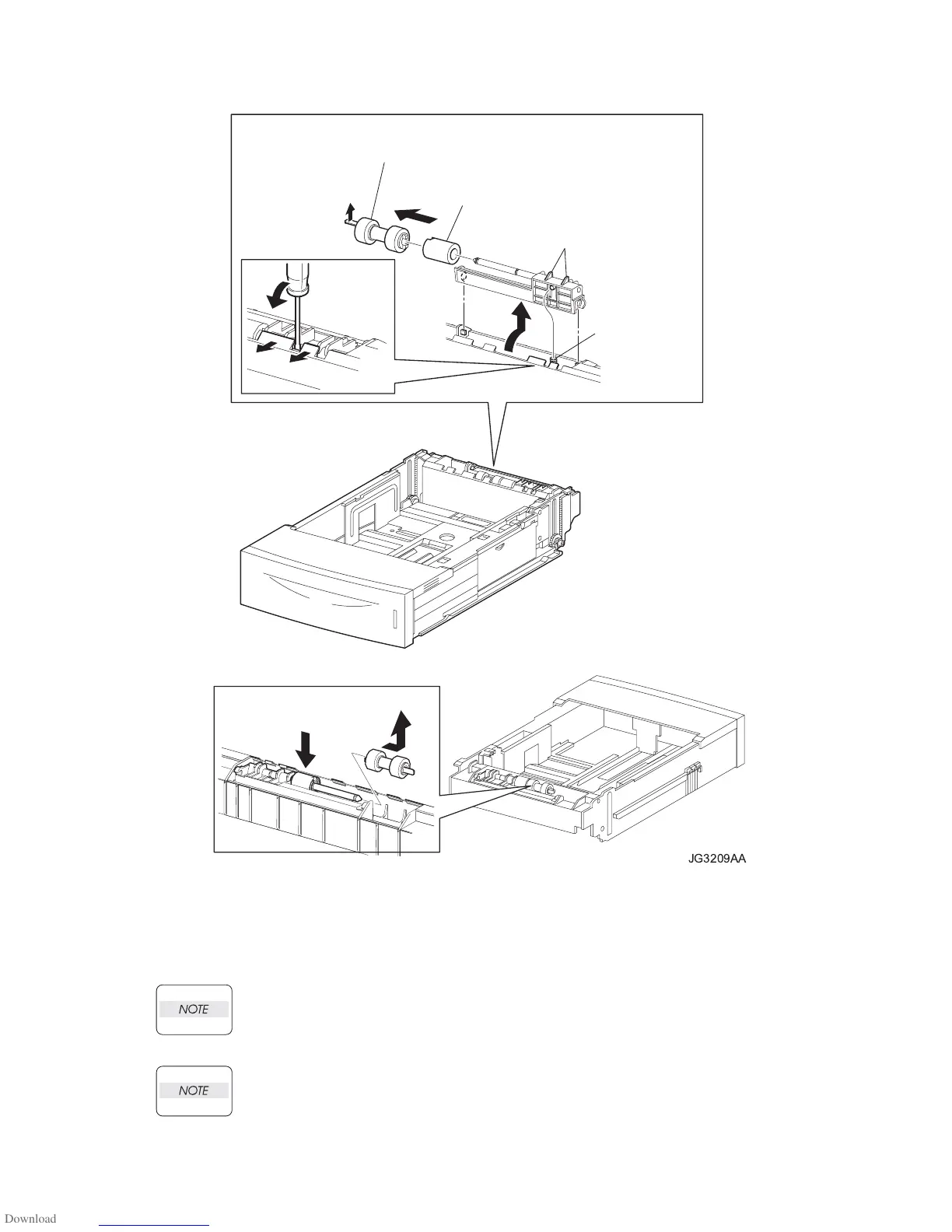

1) Install the ROLL ASSY RETARD to the SHFT RETARD (PL 12.3.4), and secure the ROLL
ASSY RETARD with the hook.
When installing, do not hold the rubber rollers of the ROLL ASSY RETARD.
Be sure to install the hook of the ROLL ASSY RETARD into the groove of the SHAFT
RETARD.
2) Move the HOLDER RETARD (PL 12.3.5) in the opposite direction of the arrow, and install it to
the 550 PAPER CASSETTE (PL 12.3).
JG3518AA
SPRING RETARD
FRICTION CLUTCH
(PL20.3.3)
ROLL ASSY RETARD
(PL20.3.2)
HOOKS
JG3209AA
To Next Page
