3 - 244
Chapter 3 Removal and Replacement Procedures (RRPs)
Replacement

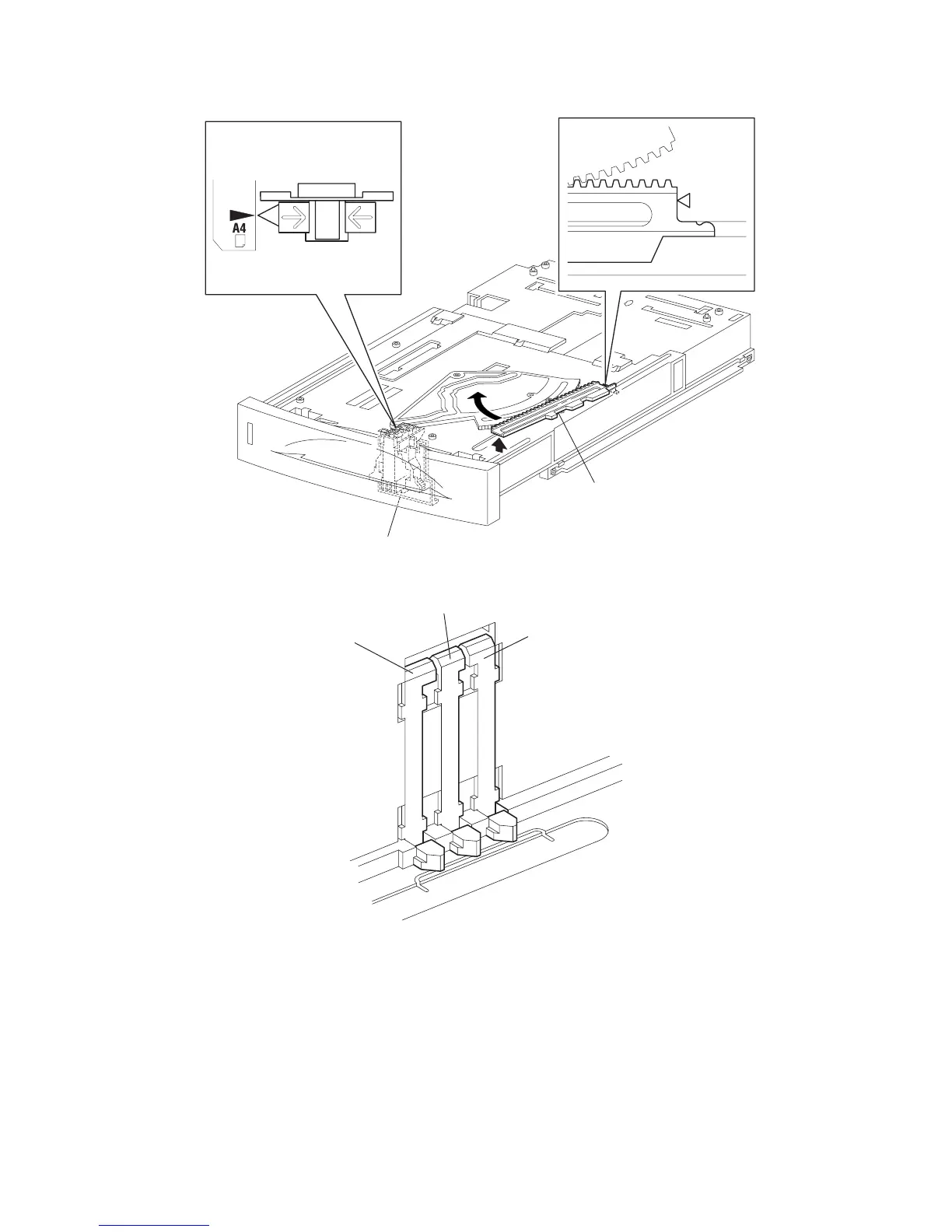

1) Put the hook on the tip of the RACK SIZE into the groove of the HOUSING EXTENSION 550
(PL 12.3.42), and turn it in the opposite direction of the arrow.
2) Align the end of the RACK SIZE wth the triangle mark printed on the HOUSING EXTENSION
550 as shown in the figure, and install the RACK SIZE to the HOUSING EXTENSION 550.
RACK SIZE
(PL20.3.40)
JG3520AB
GUIDE ASSY END 550
NOTE 1
JG3541AA
LINK SW SIZE 1-550
(PL20.3.45)
LINK SW SIZE 2-550
(PL20.3.46)
LINK SW SIZE 3-550
(PL20.3.47)
To Next Page
