Oki B6500

6 – 17
Chapter 6 Principles of Operation
SENSOR LOW PAPER
When paper is low in the Tray2 Paper Cassette, this is detected by the position of
the ACTUATOR LOW PAPER and converted into an electrical signal. When the
detection portion is shielded (i.e. paper is high), /LOW PAPER SNR ON signal is
turned OFF.

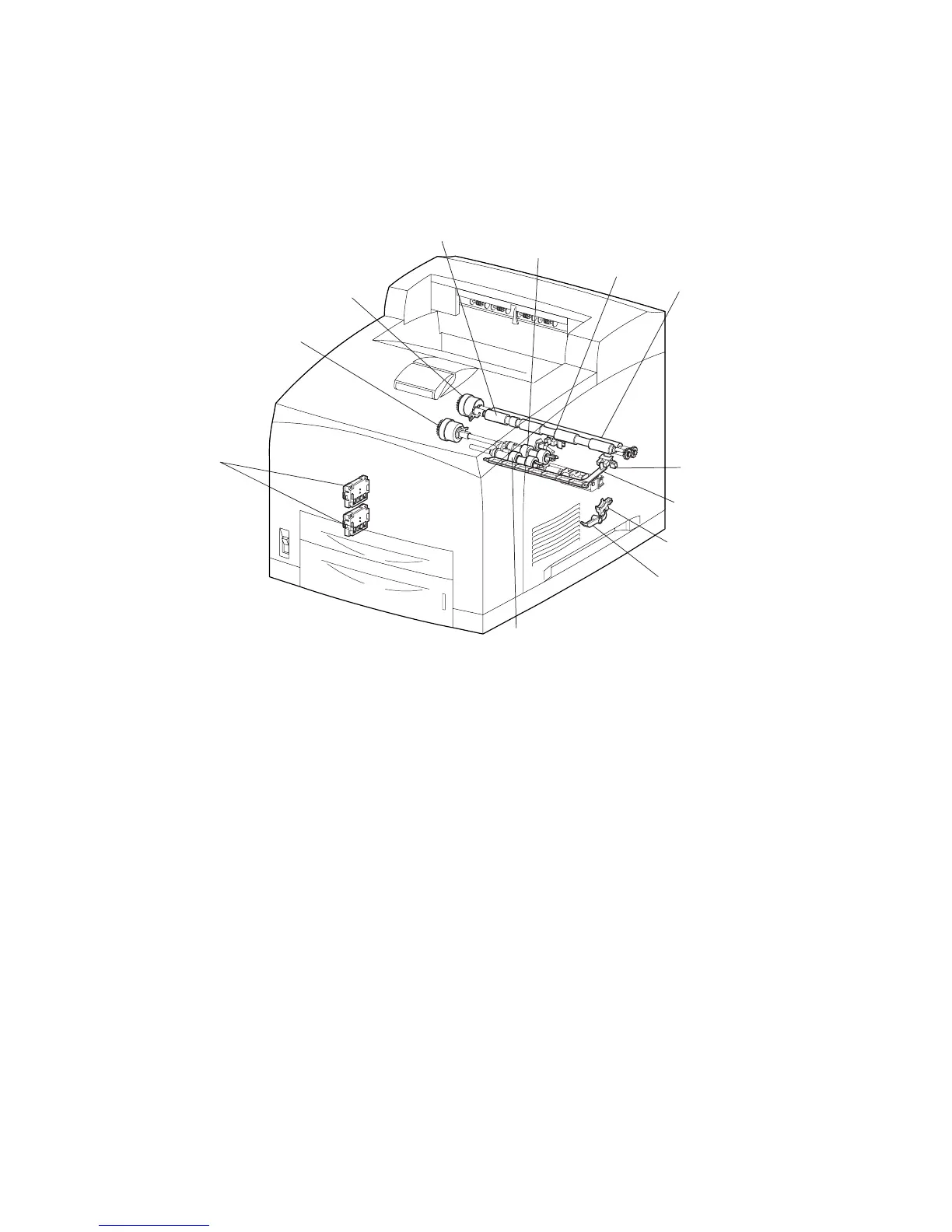

J26118AA
CLUTCH REGI
ROLL ASSY FEED
SENSOR REGI
ROLL REGI RUBBER
ROLL REGI METAL
ROLL ASSY NUDGER
SENSOR NO PAPER
ACTUATOR NO PAPER
CLUTCH ASSY PH
SENSOR LOW PAPER
ACTUATOR LOW PAPER
Size Switch
