Chapter 6 Principles of Operation
MOTOR FEEDER is transmitted to the ROLL ASSY via the CLUTCH PR-REGI.
This conveys the paper into the printer together with ROLL PINCH TURN.
PWBA FEEDER 550
A CPU is installed in the PWBA FEEDER 550. This CPU receives instructions from
HVPS/MCU and from sensors and switches, and controls feeding operation in the
Option 550 Feeder. A flash ROM is used with the CPU installed in the PWBA
FEEDER, so that the firmware can be rewritten through communications.

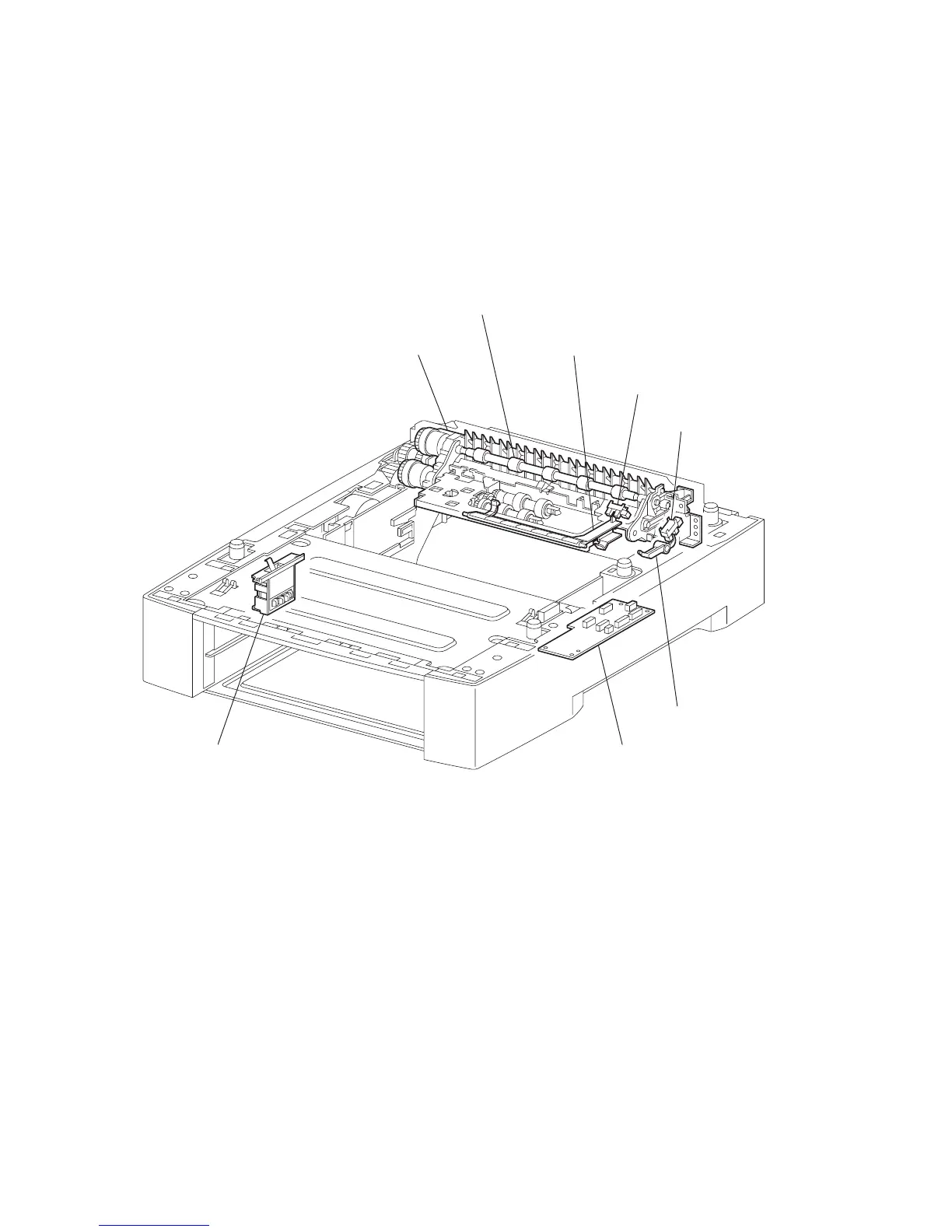

JG6515AA
ROLL ASSY TURN
PWBA FEEDER 550
SENSOR NO PAPER
SENSOR LOW PAPER
ACTUATOR NO PAPER
ACTUATOR LOW PAPER
550 FEEDER OPTION
OPT ASSY SIZE
