Oki B6500 Service Manual

7 – 5

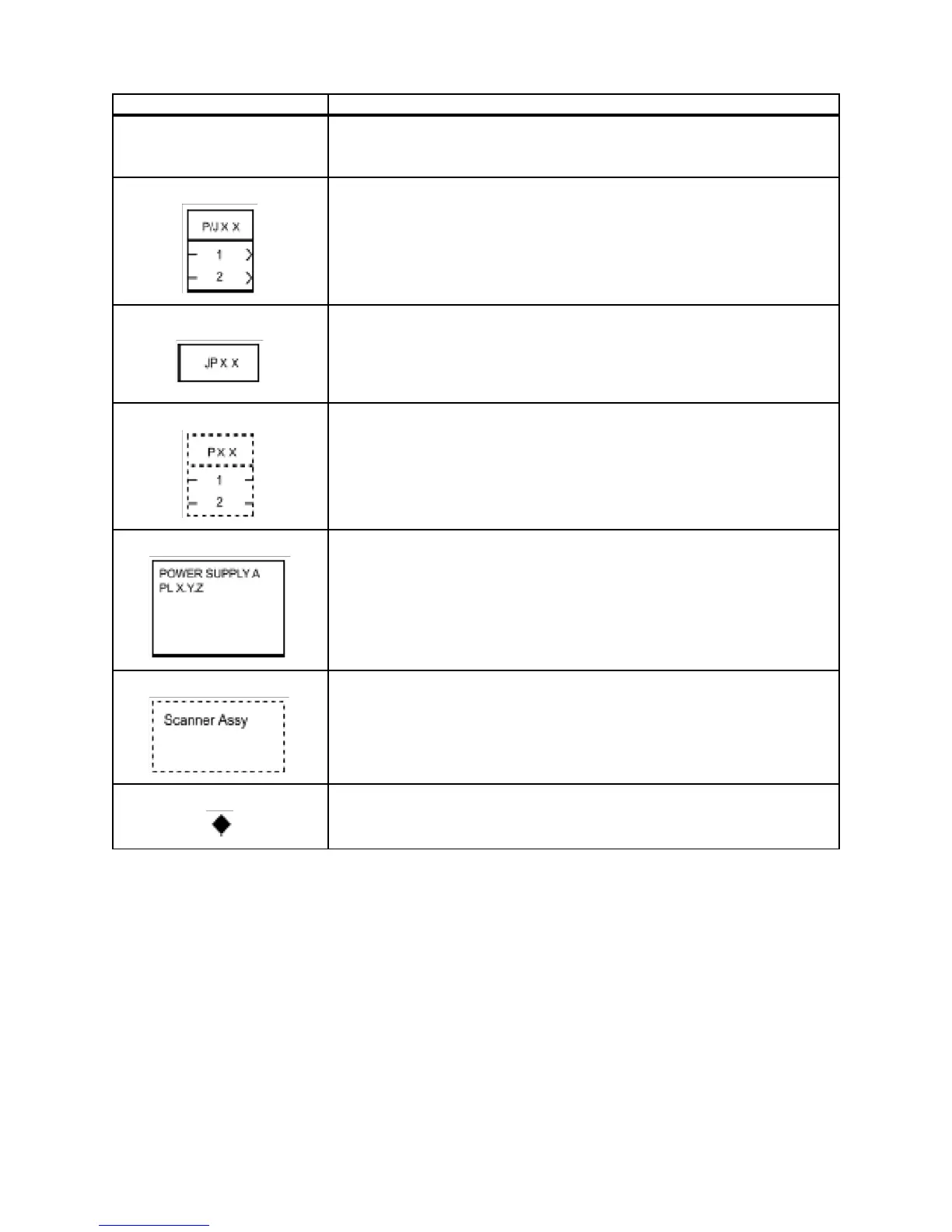

Chapter 7 Wiring Diagrams and Signal Information
RTN
Indicates a return.
Represents a connector. The connector and PIN Nos. are shown
at the upper and lower parts respectively.
"P,-" indicates the plug side of the connector.
"J,>" indicates the jack side of the connector.
Represents a connection terminal with a plate spring on the
printed circuit board. The connector No. is indicated inside the
box.
Represents a connector directly connected to the printed circuit
board. The connector No. is indicated inside the box.
Represents a part.
"PL X.Y.Z" indicates the item "Z" of the plate (PL) "X.Y" described
in Chapter 5 "Parts List."
Represents a functional part within a part, and indicates the name
of the functional part.
Indicates a reference item associated with the section.
Symbols Description

Oki B6500 Specifications

General

Color	No
Duplex printing	Yes
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	45 ppm
Flash memory	512 MB
Storage media	HDD
Internal memory	128 MB
Maximum internal memory	640 MB
Internal storage capacity	40 GB
Total input capacity	700 sheets
Total output capacity	500 sheets
Maximum input capacity	1800 sheets
Power requirements	230V
Standard media sizes	3\
Power consumption (active)	880 W
Compatible operating systems	Windows, XP (Home, Professional); 2000 (Workstation, Professional, Server, Advanced Server – SP4 +); NT 4.0 (Workstation, Server – SP6 +); ME; 98/98 SE; Mac OS 9.1+/10.1+; Unix (Sun Solaris 8, 7, 2.5; HP-UX 11.0/ 10.20); Linux (Redhat 6.x).
Envelopes sizes	C5, DL
Media weight (tray 1)	60 - 216 gsm
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
PCL fonts	86
Printer fonts	PCL, PostScript
Maximum duty cycle	200000 pages per month
Number of PostScript fonts	136
Power consumption (standby)	110 W
Power consumption (printing)	1200 W

Weight and Dimensions

Dimensions (WxDxH)	422 x 465 x 404 mm
