Oki B6500

7 – 15

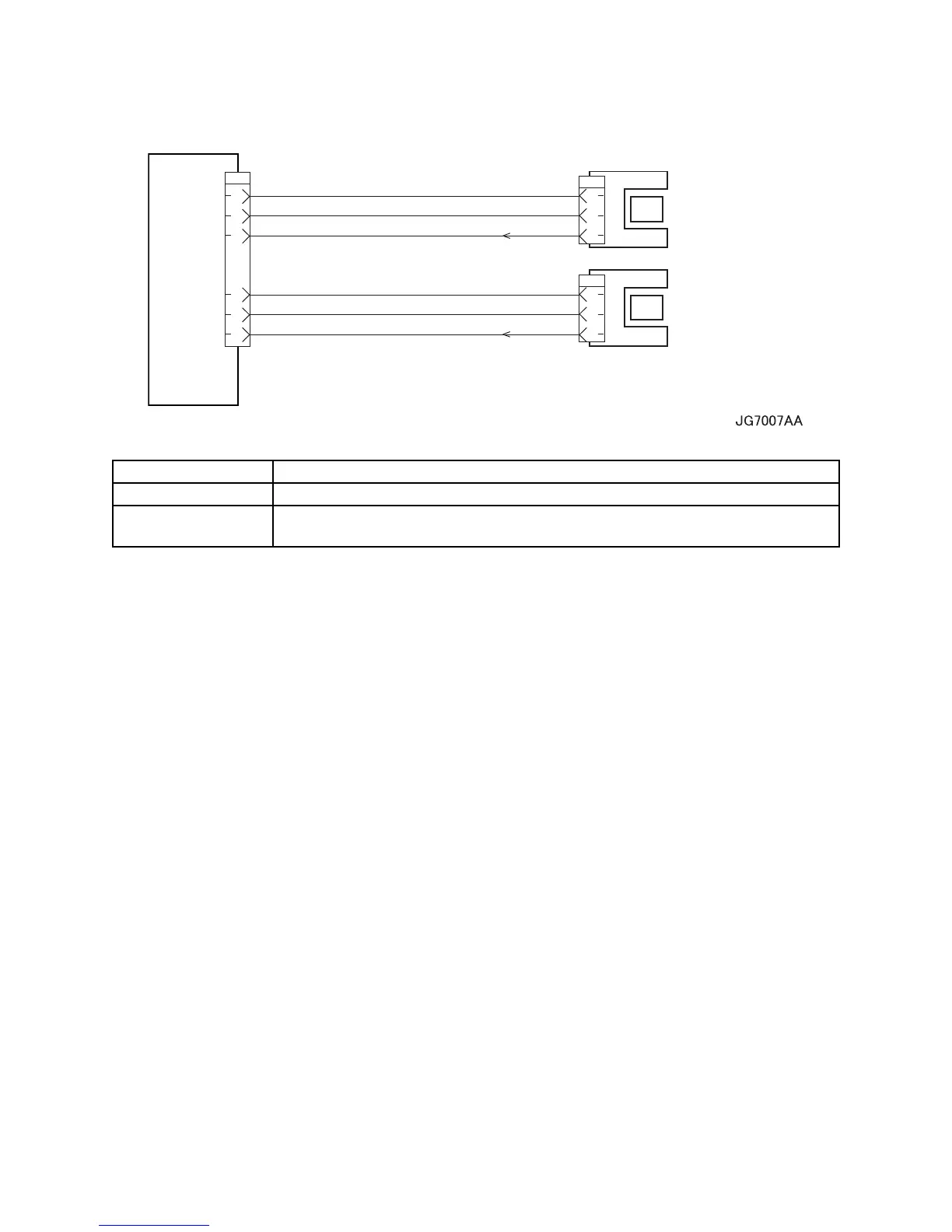

Chapter 7 Wiring Diagrams and Signal Information
6 500 Paper Exit
Signal line name Description
/FULLSTACK SNR ON Signal from SENSOR FULL STACK. This signal goes Low when light is received.
/FACE UP OPEN SNR
ON
Signal from SENSOR FACE UP OPEN. This signal goes Low when light is received.
P/J29
2
3
1
4
5
6
HVPS/
MCU
PL12.1.19
HARNESS ASSY EXIT SNR
PL10.1.27
SENSOR
FULL STACK
PL10.1.26
2
1
3
P/J290
Pull Up 3.3V
LG
/ FULLSTACK SNR ON
SENSOR
FACE UP OPEN
PL10.1.25
2
1
3
P/J291
Pull Up 3.3V
LG
/ FACE UP OPEN SNR ON
