Chapter 7 Wiring Diagrams and Signal Information
Option OCT

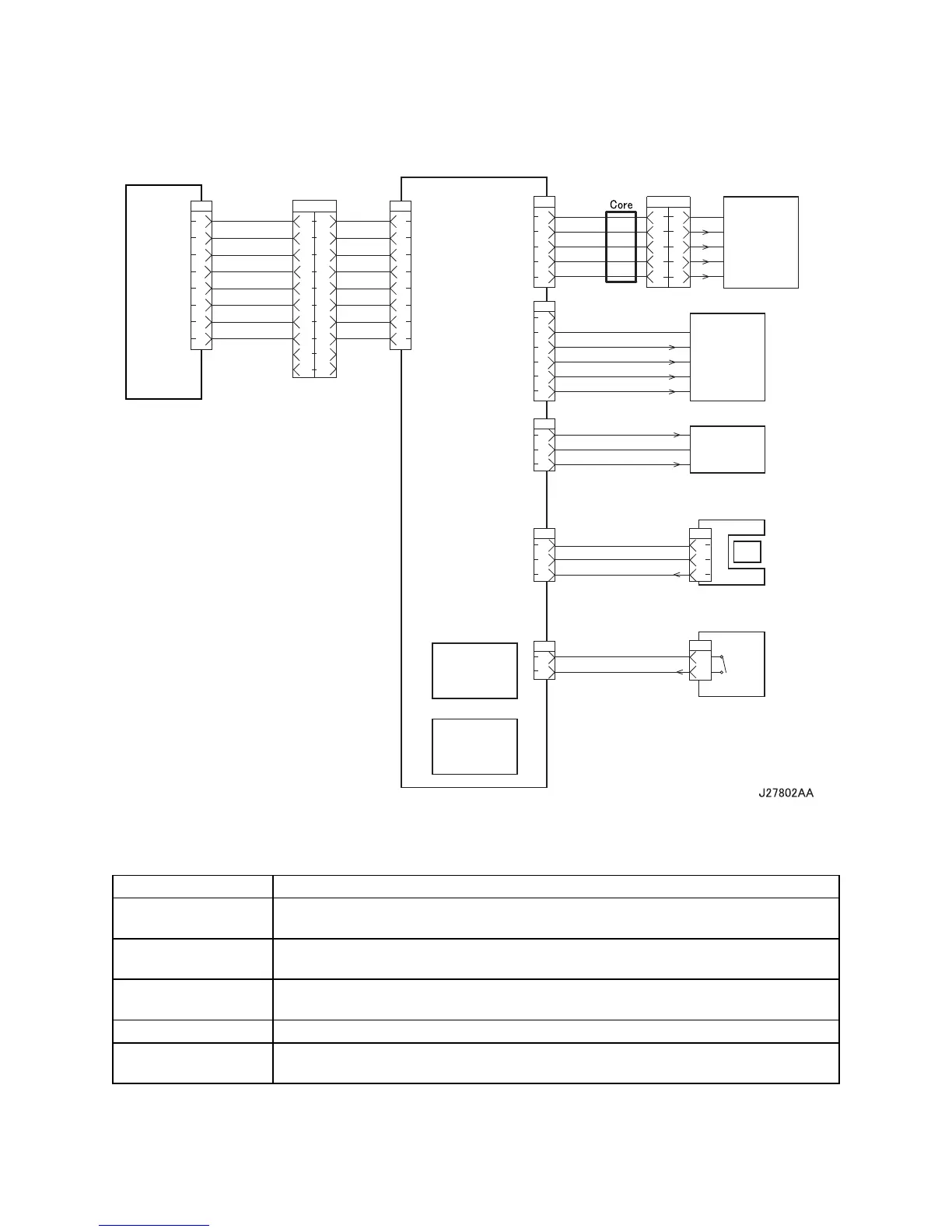

Signal line name Description
A and B
Excitation signal for MOTOR ASSY OCT and MOTOR ASSY OFFSET. Phases A
and B.
/A and /B
Excitation signal for MOTOR ASSY OCT and MOTOR ASSY OFFSET. Phases /A
and /B.
DIR SOL FUKKI DIR
SOL KYUIN
Control signal for SOLENOID ASSY GATE.
/OCT SNR ON Signal from SENSOR DUP. This signal goes Low when light is received.
/REAR COVER OPEN
Signal from S/W REAR COVER. This signal goes Low when the rear cover of OCT
(COVER REAR) is closed.
7
6
5
4
3
2
1
8
2
3
4
5
6
7
8
9
10
1
9
8
7
6
5
4
3
2
1
10
P/J30
2
3
4
5
6
7
8
1
P/J70
2
3
4
5
1
P/J71
24V DC
A
B
/A
/B
P/J3070
24V DC
RTN
RTN
LG
TXD
RXD
N.C.
N.C.
N.C.
N.C.
N.C.
24V DC
3.3V DC
HVPS/
MCU
PL12.1.19
PWBA OCT
PL23.1.22
HARNESS ASSY
OCT2
PL23.1.25
HARNESS ASSY
OCT1
PL12.1.26
MOTOR
ASSY OCT
PL23.1.6
MOTOR
ASSY
OFFSET
PL23.1.20
SOLENOID
ASSY GATE
PL23.1.27
HARNESS ASSY
OCT SNR
PL23.1.26
HARNESS ASSY
OCT MOT
PL23.1.46
HARNESS ASSY
REAR COVER
PL23.1.29
SENSOR
OCT
PL23.1.30
S/W REAR
COVER
PL23.1.18
Sensor
Full Stack
Sensor
Offset
2
3
4
5
6
1
P/J72
24V DC
A
B
/A
/B
2
1
3
P/J75
2
3
1
P/J73
1
2
P/J74
2
1
3
P/J730
DIR SOL FUKKI
DIR SOL KYUIN
24V DC
Pull Up 3.3V
LG
LG
/ REAR COVER OPEN
/ OCT SNR ON
1
2
P/J740
4
3
2
1
5
2
3
4
5
1
P/J710
To Next Page
