Mixed signal option (MSO, R&S RTP-B1)
R&S
®
RTP
940User Manual 1337.9952.02 ─ 12

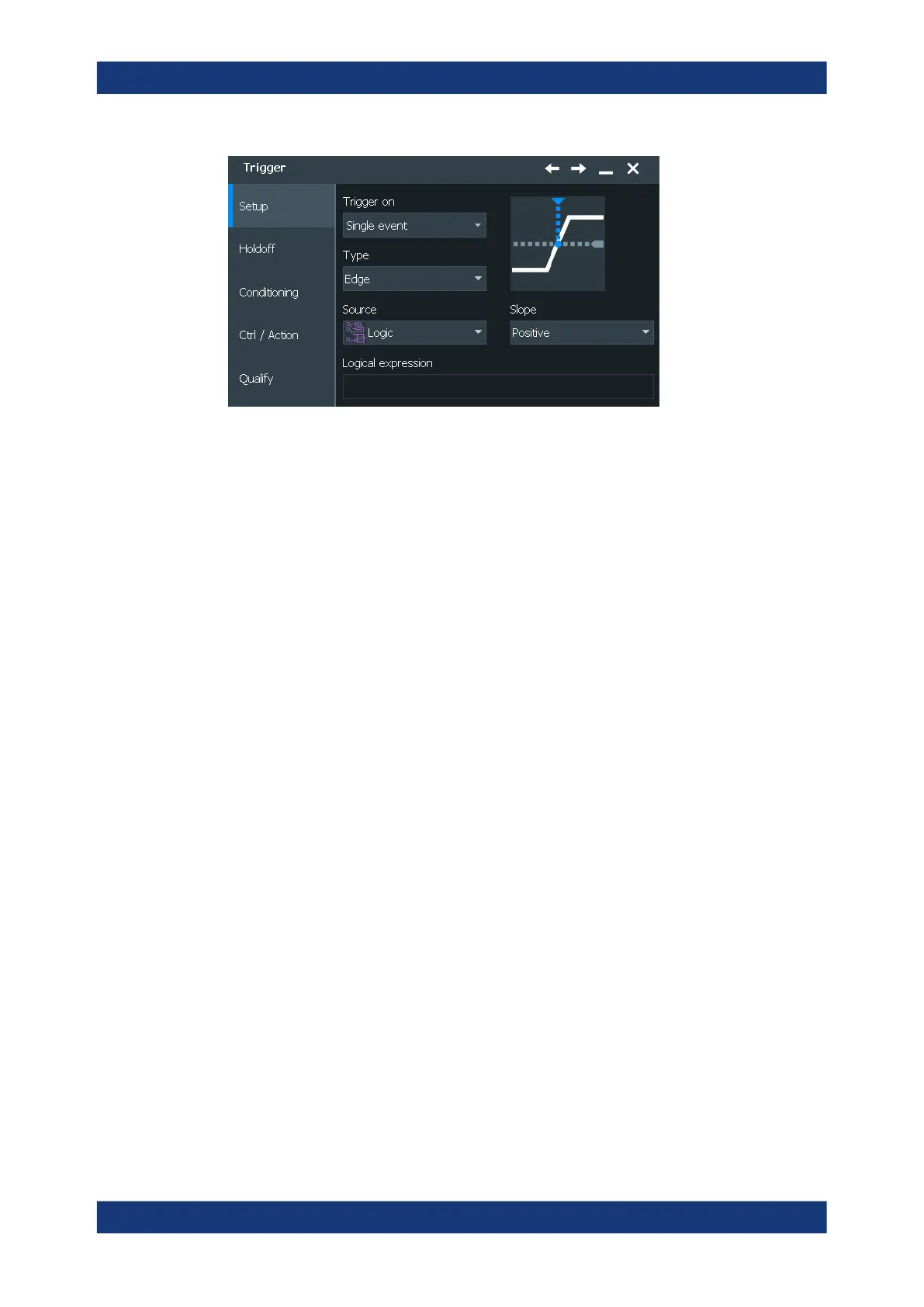

Figure 14-1: Edge trigger settings for trigger source = logical combination of digital channels (Logic)
Slope
Defines the edge - the state transition - of the signal.
"Positive"
Means a 0 to 1 transition of the state.
"Negative"
Means a 1 to 0 transition of the state.
"Either"
Triggers on any activity on the selected trigger source.
Remote command:
TRIGger<m>:PARallel:EDGE:SLOPe on page 2210
Logical expression
Defines a logical combination of several digital channels as trigger condition if "Logic"
is set for "Source".
If the "Slope" is positive, the trigger occurs when the logical expression becomes true.
If the "Slope" is negative, the trigger occurs when the logical expression becomes
false.
Remote command:
TRIGger<m>:PARallel:EDGE:EXPRession[:DEFine] on page 2210
14.3.1.3 Width
The width trigger detects positive and/or negative pulses of a pulse width (duration)
inside or outside of a defined time limit. It can trigger on a single digital channel or a
logical combination of digital channels.
The instrument triggers at the end of the detected pulse.
