OPERATION 5
MHL360 E 5.9
5.4.4.2 Skylight
The skylight can only be opened completely.
Intermediate positions are not possible. The
skylight cannot be opened if it is made of rein-
forced glass.
►
Open or close the skylight by swinging the
handle (106/1).
5.4.4.3 Side windows
The front and rear side window can be
opened in various positions.
►
Slide locking device (1071) upwards.
►
Use the handle (107/1) to slide the side
window to the desired catch (107/2).
►
Snap in locking device (107/3).
5.4.5 Adjusting the sunblind
Front windshield
►
Pull the sunblind down using the handle
(108/2) and hook it into the brackets
(108/1) in the desired position.
Skylight
►
Pull the sunblind forward using handle
(108/4) and hook it onto the brackets
(108/3) in the desired position.
►
The springs will pull the sunblind back up.
When rolling the sunblind up, take hold of it
by the handle (108/2) or (108/4) and guide
it back.
5.4.6 Switching interior lamp on as
needed
The interior lamp (92/2) can be used to light
the cab. An adjustable reading lamp (92/1) is
available for reading the operating instruc-
tions.
►
Switch the desired light on or off with the
button toggle (92/3).
BSB51195
1

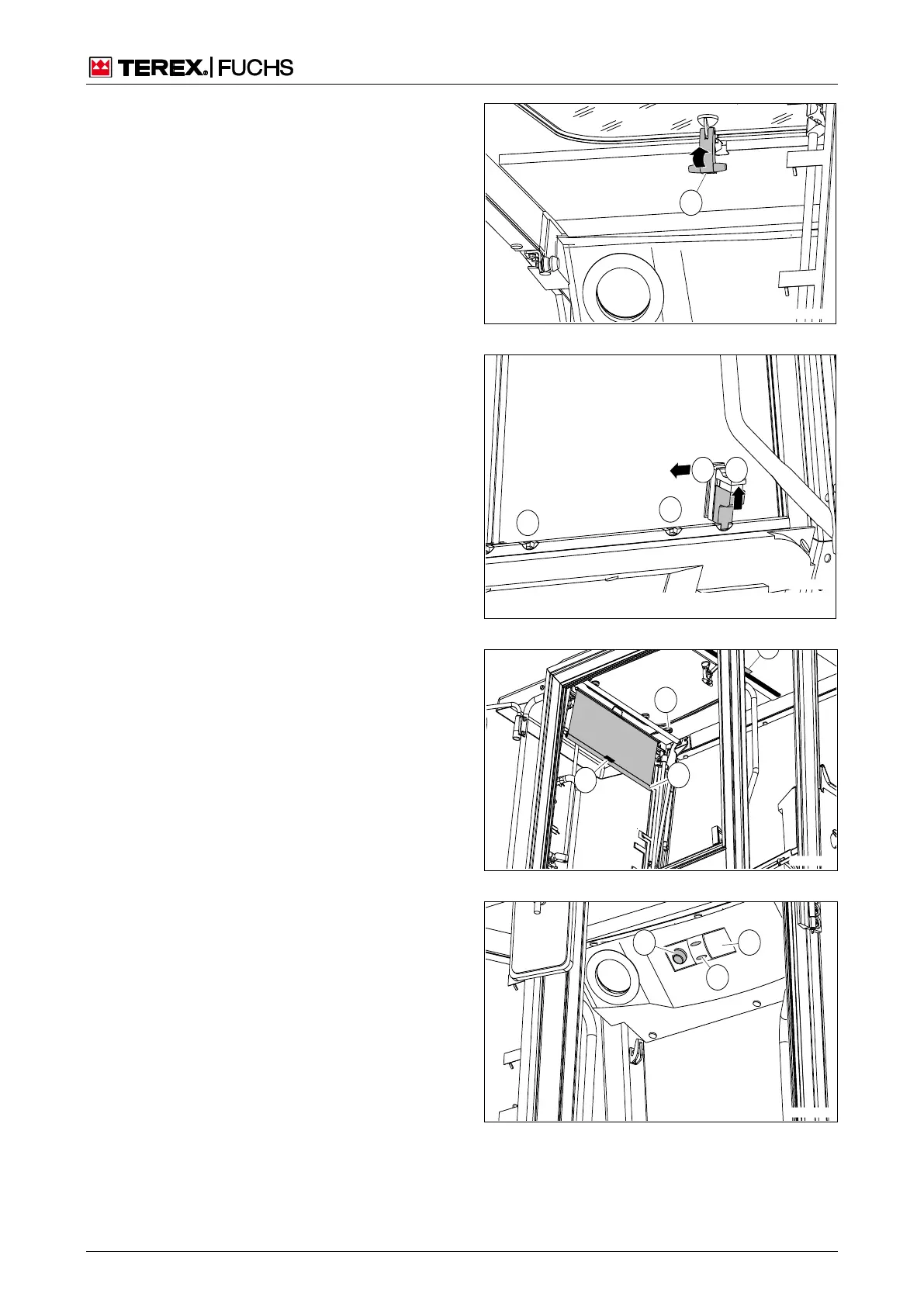

Fig. 106 Closing the skylight
1
BSB51196
2
3
3
Fig. 107 Opening the side window
1
2
3
BSB51194
4
Fig. 108 Sunblinds
1 2
3
BSB51193
Fig. 109 Interior lamp
