7 CARE AND MAINTENANCE
7.66 MHL360 E
7.7.15.2 Rear axle differential
Checking the axle oil level
►
Remove the check and filler plug (320/1),
check and top up with oil if necessary.
Changing axle oil
►
Park the machine on level ground.
►
Apply the parking brake.
►
Open the check and filler plug (320/1).
►
Open the drain plug (320/2) on the differ-
ential and drain oil.
►
Flush out the axle if necessary.
►
Carefully close the drain plug (320/2).
►
Fill with oil through the check and filler plug
(320/1) up to the bottom edge of the bore.
►
Carefully close the check and filler plug.
7.7.15.3 Wheel hub
ATTENTION
The wheel hubs and axle casings (differentials)
have separate oil chambers.
Checking the oil level
►
Turn the wheel until the drain plug (321/2)
on the hub is at the bottom.
►
Remove the check and filler plug (321/1),
check and top up with oil if necessary.
Changing the oil
►
Turn the wheel until the drain plug (321/2)
on the hub is at the bottom.
►
Open the check and filler plug (321/1).
►
Open the drain plug and drain the oil.
►
Rinse if required.
►
Carefully close the drain plug.
►
Fill with oil through the check and filler plug
(321/1) up to the bottom edge of the open-
ing.
►
Carefully close the check and filler plug.
360-0860-106
1
2

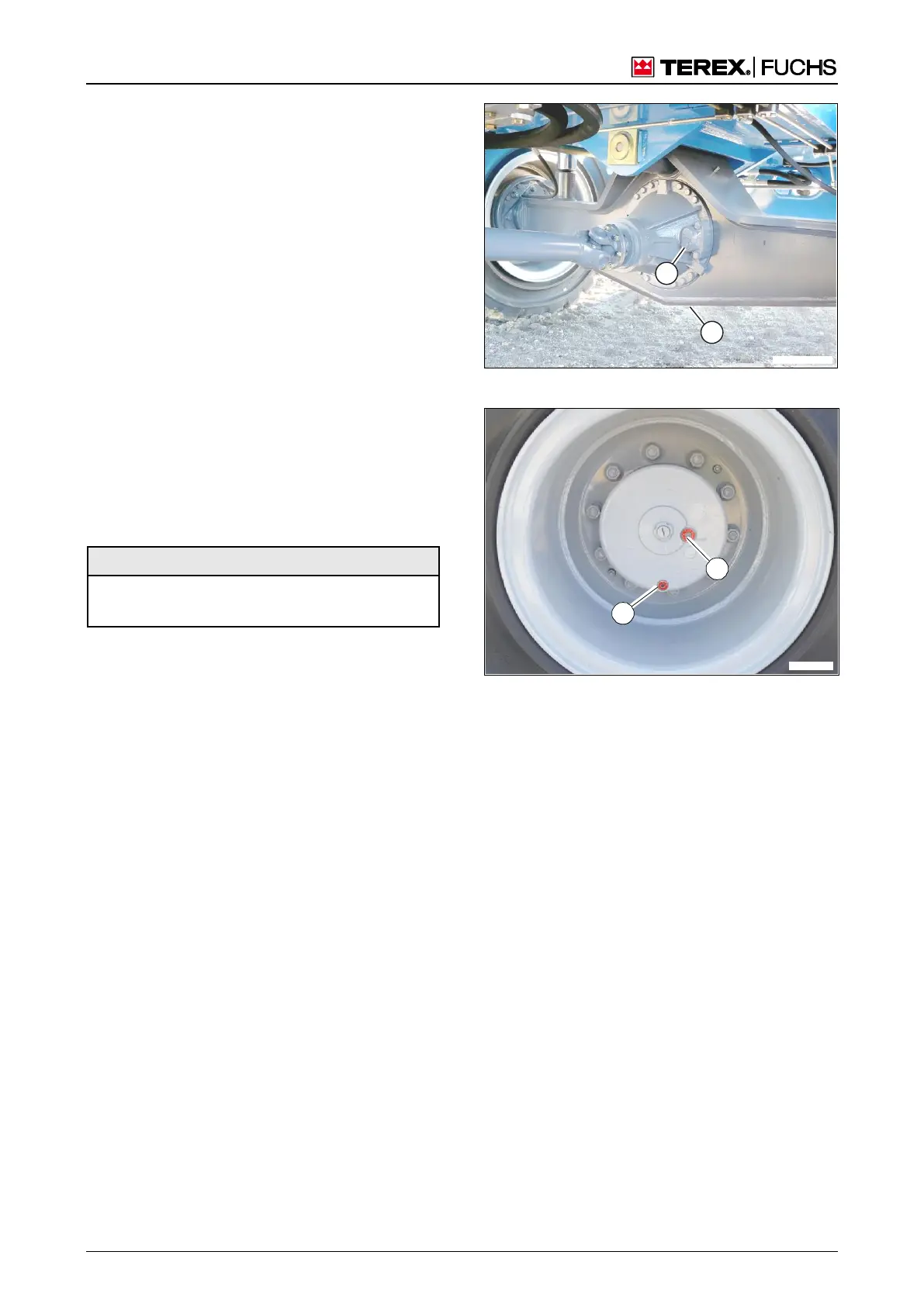

Fig. 320 Rear axle differential
1
BSB50044
2
Fig. 321 Wheel hub
