7.7.15.4 Manual transmission
Checking the oil level
►
Park the machine on level ground.
►
Remove the check and filler plug (322/1)
and add oil up to the bottom of the drill hole
if necessary.
Changing the oil
►
Park the machine on level ground.
►
Open the check and filler plug (322/1).
►
Open the drain plugs (322/2) and (322/3)
and drain the oil.
►
Rinse the transmission if required.
►
Carefully close the drain plugs (322/2) and
(322/3).
►
Fill with oil up to the bottom edge of the
bore through the check and filler plug
(322/1). Check the oil level of the manual
transmission again.
►
Carefully close the check and filler plug.
BSB50045
1
2 3

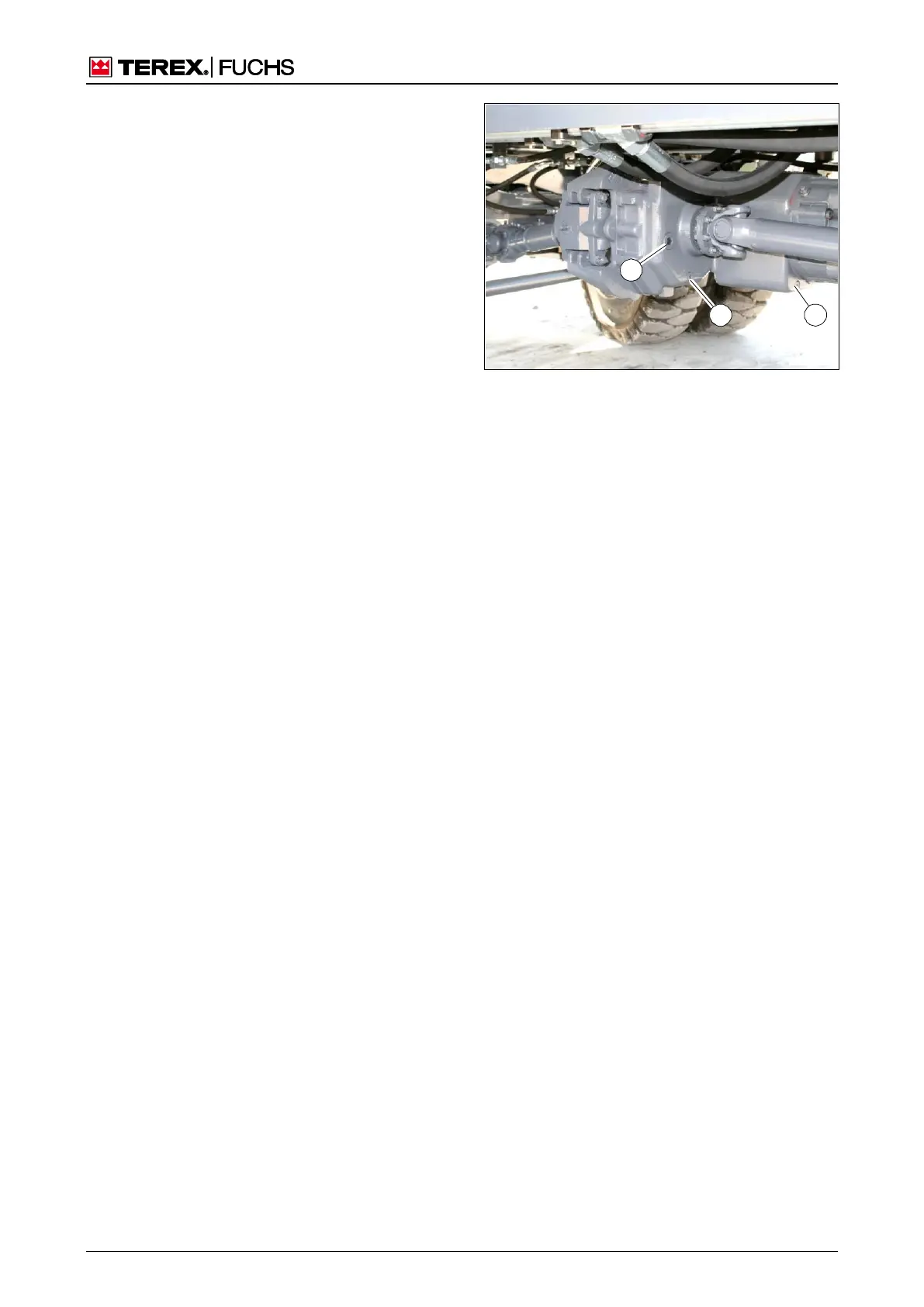

Fig. 322 Transmission
