7 CARE AND MAINTENANCE
7.68 MHL360 E
7.7.15.5 Swing gear
►
Park the machine on level ground.
►
Unscrew the cover (323/2) on the oil filler.
►
Unscrew the service opening cover
(323/4).
►
Connect the drain hose to the shuttle valve
(323/3). Open the valve and drain the oil.
►
Carefully close the valves. Remove the
drain hose from the shuttle valve (323/3).
►
Screw on the service opening cover
(323/4).
►
Add new oil.
►
Check the oil level with the oil level dip-
stick (323/1). To measure the level, lay the
side of the oil level dip-stick (324/1) onto
the sealing surface (324/2).
►
Seal the oil filler with the cover (323/2).
BSB51018
1
2
3
4

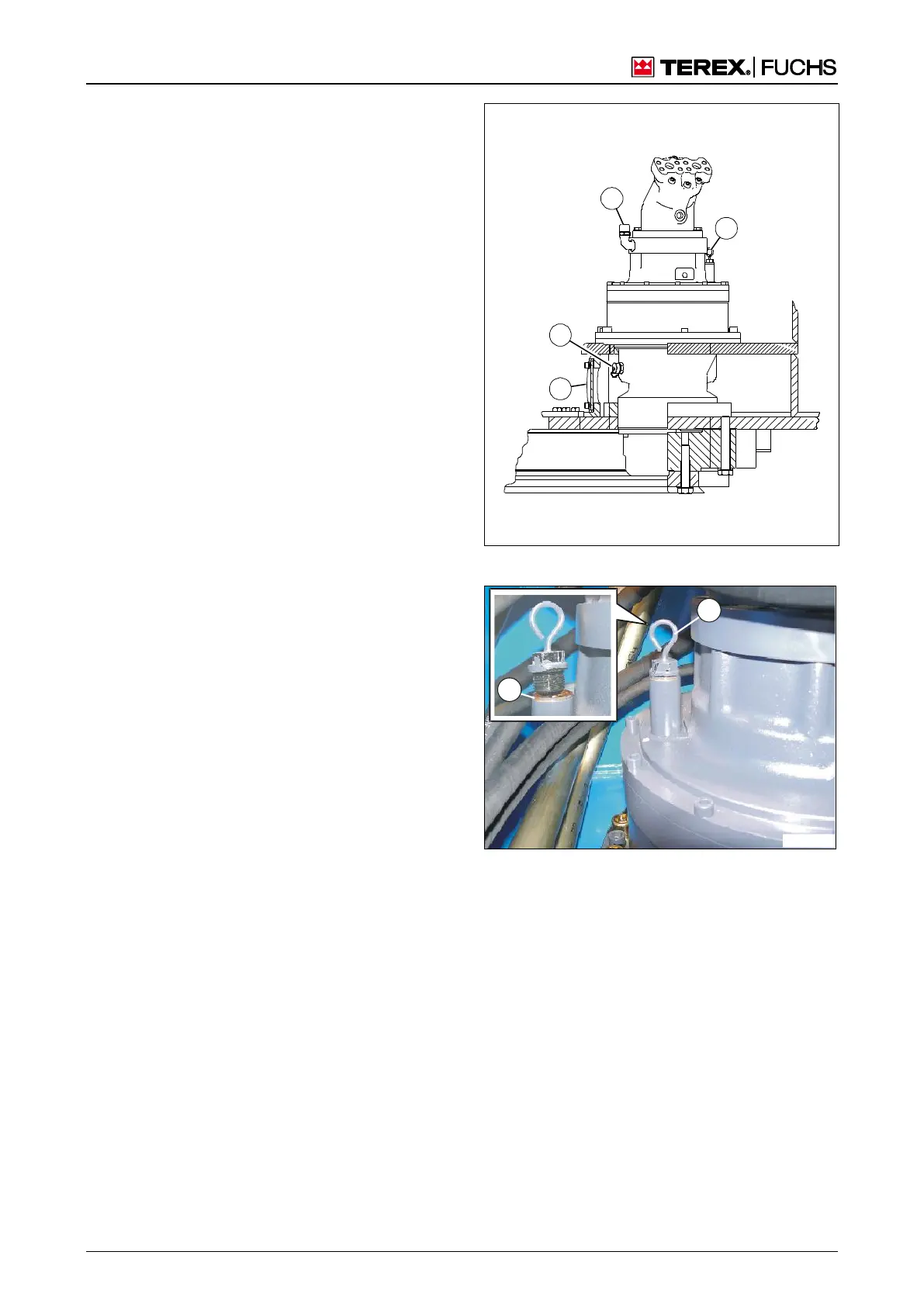

Fig. 323 Swing gear
BSB50046
1
2
Fig. 324 Swing gear oil level check
