Toa VX-2000SF - Page 130

Chapter 7: PC SOFTWARE OFFLINE SETTINGS
7. CONFIGURATION SETTING MODE
7-15

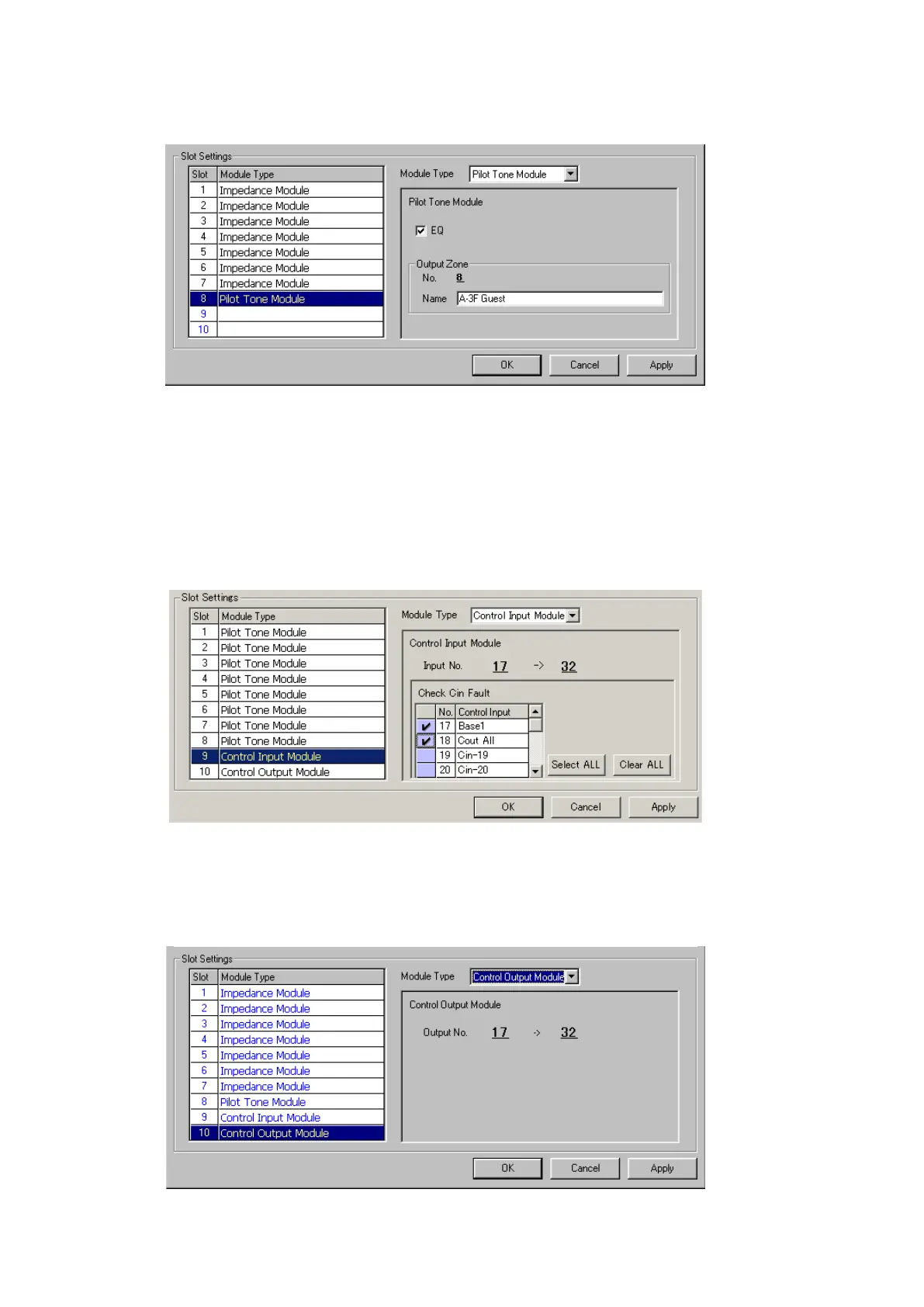

3) Pilot Tone Module
Refers to the VX-200SP Pilot Tone Detection module.
•EQ: WhenusingtheVX-200SEEqualiserCard,tickthischeckbox.
•OutputZone: Enterazonename.
4) Control Input Module
Refers to the VX-200SI Control input module.
The control input numbers assigned to the control input modules are displayed.
5) Control Output Module
Refers to the VX-200SO Control Output module.
The control output numbers assigned to the control output modules are displayed.
Continued on next page
