6.10.3 Stuck-at faults
The following figure shows how the SAF detector detects a stuck-at-one error on the qreqn signal.

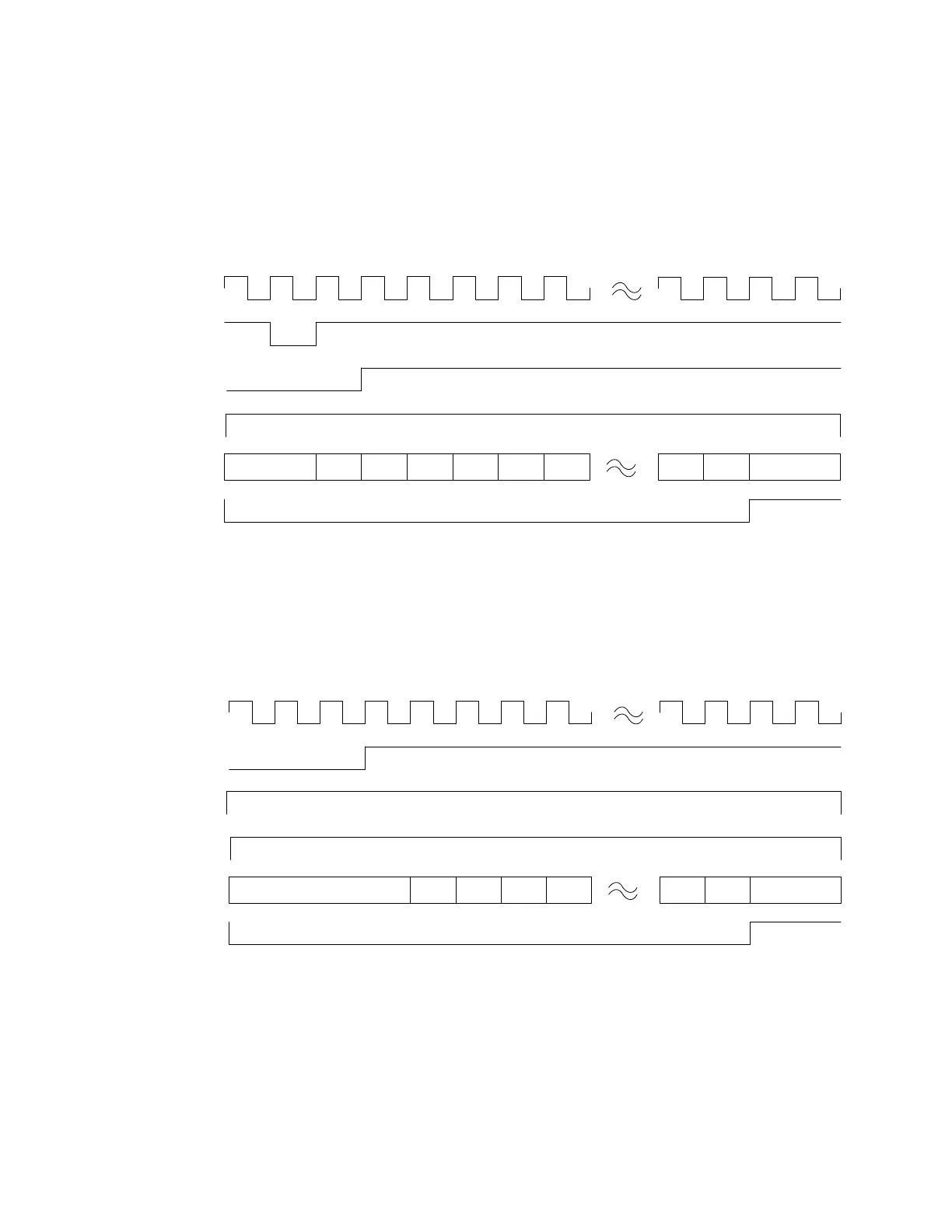

Figure 6-18: Stuck-at-one error on qreqn signal
63 62 63
Error
Count
QREQn_chk
QREQn
clk
QREQn_int
62 61 60 59 2 1 0
The following figure shows how the SAF detector detects a stuck-at-one error on the qreqn_chk
signal.
Figure 6-19: Stuck-at-one error on qreqn_chk signal
63
Error
Count
QREQn_chk
QREQn
clk
QREQn_int
62 61 60 59 2 1 0
