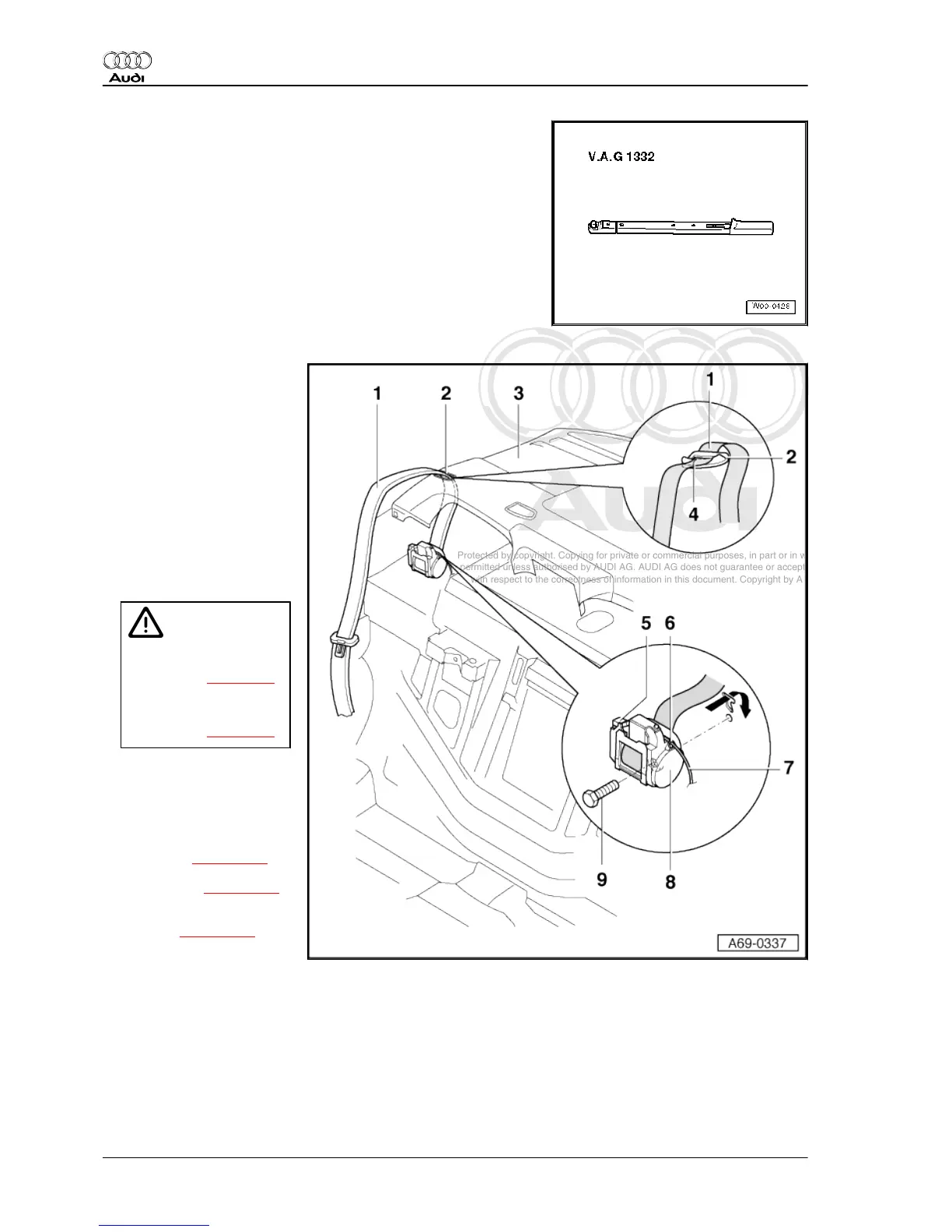

♦ Torque wrench -V.A.G 1332-
1 - Webbing
2 - Webbing guide trim
3 - Rear shelf
4 - Opening in webbing guide
trim
5 - Belt tensioner connector
6 - Clip
7 - Cable
8 - Belt reel/belt tensioner
♦ Removing
WARNING
♦Heed the safety regula‐
tions for pyrotechnic
components ⇒ page 94 .
♦Heed the disposal regu‐
lations for pyrotechnic
components ⇒ page 96 .
– With the ignition switch‐
ed on, disconnect the
battery earth wire ⇒
Electrical system; Rep.
gr. 27 .
– Remove the rear seat
bench ⇒ page 333 .
– Remove the rear seat
backrest ⇒ page 334 .
– Remove the rear outer
floor panel anchorage
point ⇒ page 113 .
– Unscrew the bolt -9-.
– Unplug the belt tension‐
er connector -5-.
– Disengage the belt reel -8-.
♦ Installing
– Engage the belt reel -8- in arrow direction.
– Make sure the cable -7- is secured at the clip -6-.
– Continue installing the belt reel -8- in the reverse order of removal.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
110 Rep. gr.69 - Passenger protection
