– Unplug the connector at the seat height adjustment motor and detach the seat height adjustment motor.
♦ Installing ⇒ page 304

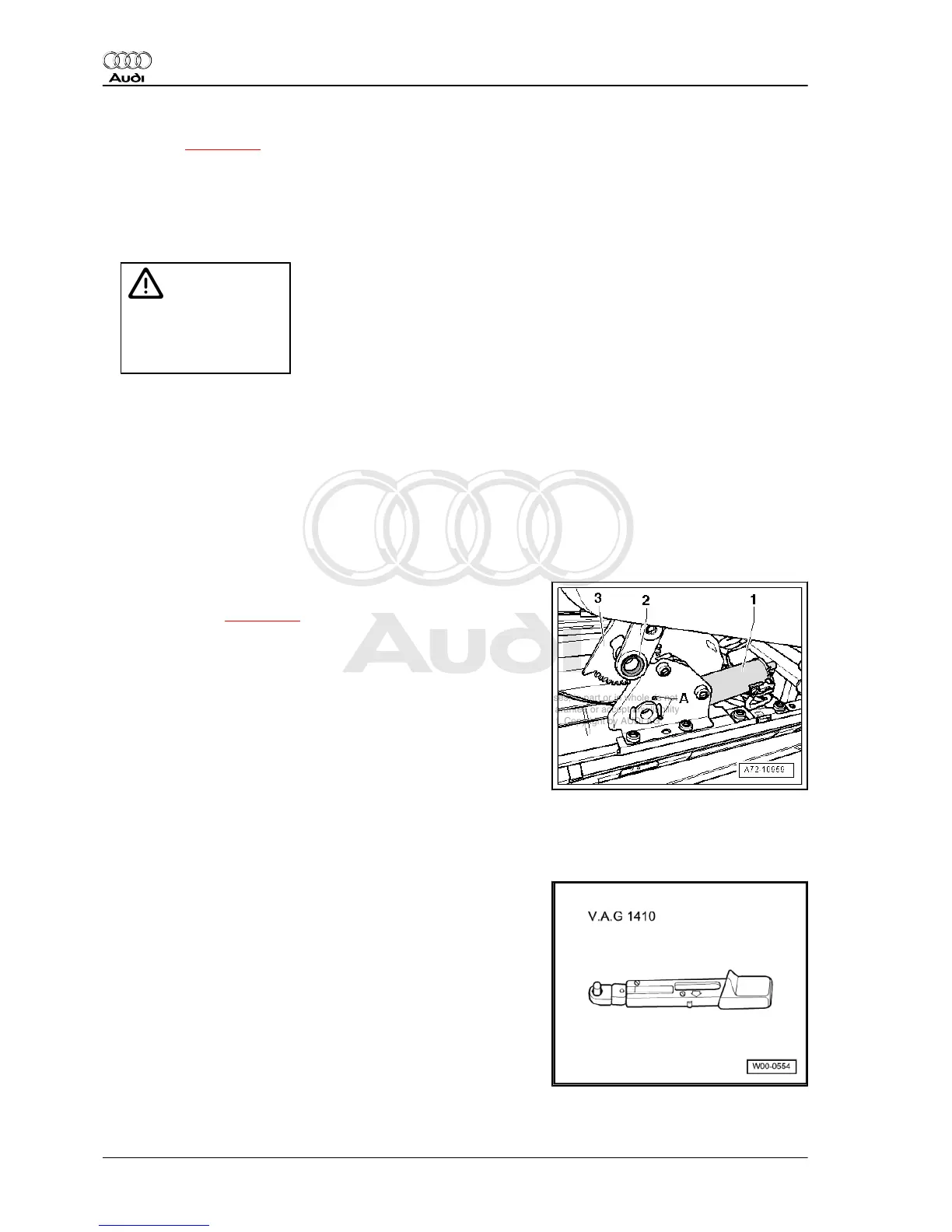

– Position the motor -1- with the pins -A- (2x) in the corresponding mount.
– Screw on the motor.
– Swivel down the seat upper frame and guide the toothed segment -3- into the seat height adjustment
motor.
Caution
Take care never to dam‐
age the mounting bush
when inserting the nut
and the stepped pin -2-.
– Insert the nut.
– Screw on the stepped pin.
– Tighten the bolts for attaching the seat upper frame to the seat base frame.
– Perform the remaining operations.
6 - Seat upper frame
7 - Cover
Replacing motor
Tightening torque: ⇒ page 302
1.23 Removing and installing seat angle ad‐
justment motor
Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1410/-
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
304 Rep. gr.72 - Seat frames
