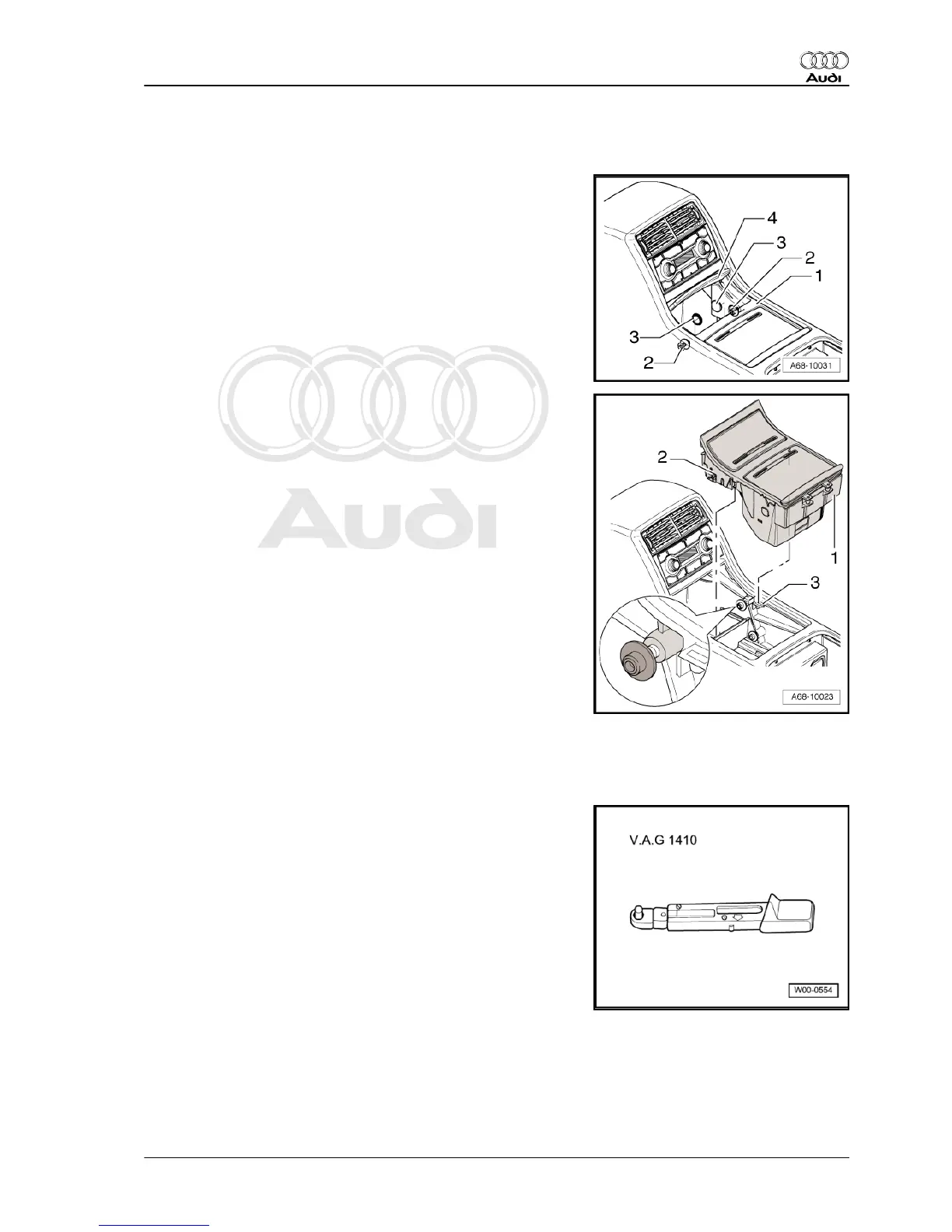

3.5 Removing and installing cup holder unit
with small storage compartment lid
– Open lid of small storage compartment -4-.
– Unclip cover panels -3- (2x).
– Remove bolts -2-.
– Close lid of small storage compartment -4-.
– Pull cup holder unit -1- with retaining tabs -2- upwards out of
mountings -3-.
– Unplug connector to cup holder unit -1-.
3.6 Removing and installing small storage
compartment
Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1410-
