76 – Gas, water, electricity
1 Servicing refrigerator box

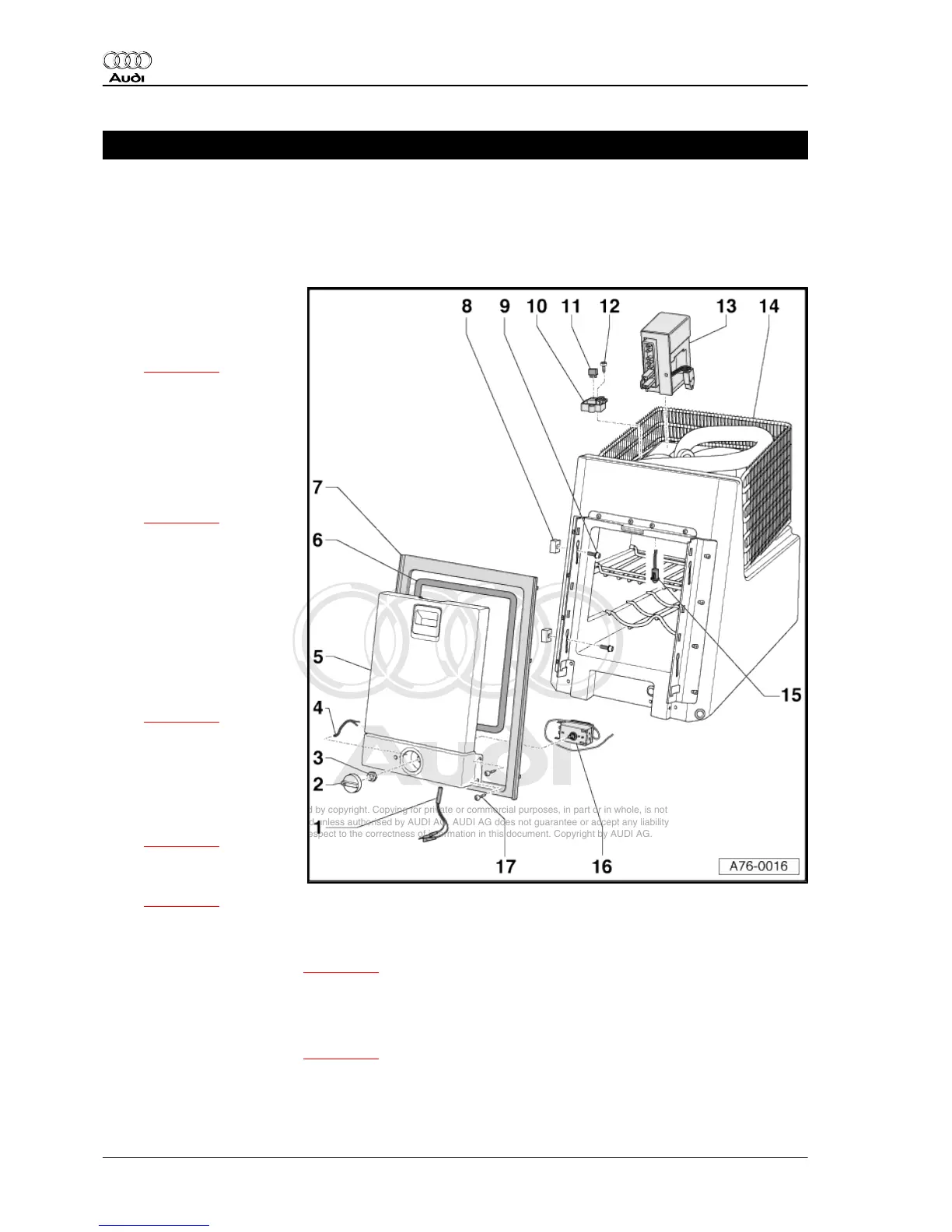

1.1 Exploded view of components
1 - Contact switch
❑ For actuating interior
light
❑ Removing and installing
⇒ page 387
2 - Rotary knob
❑ For thermostat
3 - 12 Nm
4 - Light-emitting diode (LED)
❑ For operation indicator
❑ Removing and installing
⇒ page 388
5 - Hinged cover for refrigera‐
tor box
6 - Seal
7 - Trim frame
8 - Clamping element
9 - 4 Nm
10 - Battery monitor
❑ Removing and installing
⇒ page 390
11 - Locking element
12 - 1.5 Nm
13 - Control unit for refrigerator
box compressor
❑ Removing and installing
⇒ page 391
14 - Refrigerator box
❑ Removing and installing
⇒ page 385
15 - Light-emitting diode (LED)
❑ For refrigerator box interior light
❑ Removing and installing ⇒ page 390
16 - Thermostat
❑ With capillary tube
❑ Take care not to kink or damage capillary tube
❑ Removing and installing ⇒ page 386
17 - 1.5 Nm
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
384 Rep. gr.76 - Gas, water, electricity
