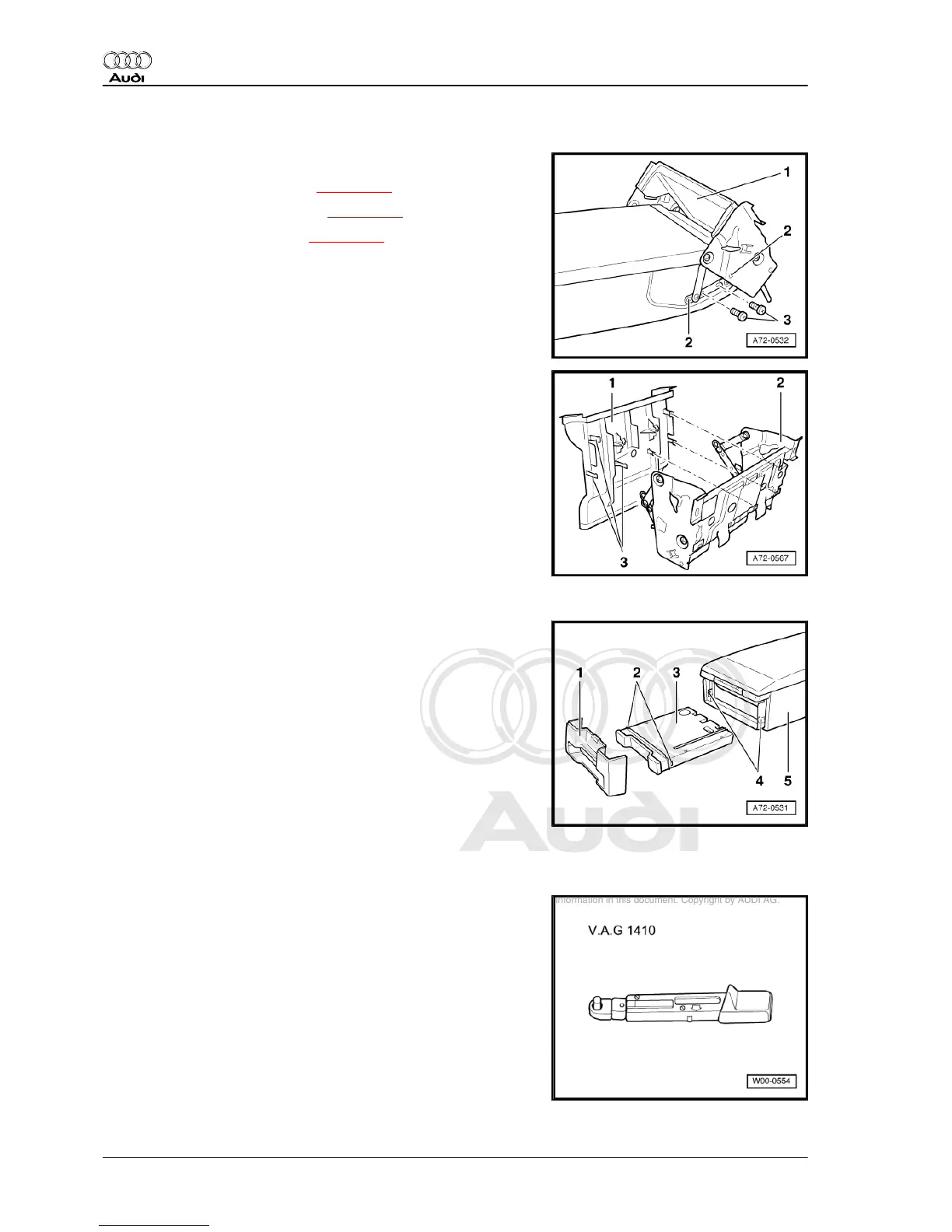

2.4 Dismantling centre armrest
♦ Removing
– Remove the rear seat bench ⇒ page 333 .
– Remove the rear seat backrest ⇒ page 334 .
– Remove the centre armrest ⇒ page 335 .
– Unscrew the bolts -3- (4x).
– Prise the holder -1- out of the guides -2- (4x).
– Detach the holder -1-.
– Unfasten the trim -1- at the clips -3- (6x) and remove from the
holder -2-.
♦ Installing
– Assemble the centre armrest in the reverse order of removal.
2.5 Removing and installing cup holder
♦ Removing
– Use a screwdriver to prise out the trim -1- at the guides -2-
(2x).
– Use a screwdriver to prise out the cup holder -3- at the guides
-4- (2x) and pull out the cup holder -3- to the front.
♦ Installing
– Install the cup holder -3- in the reverse order of removal.
2.6 Removing and installing centre mount
Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1410/-
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
336 Rep. gr.72 - Seat frames
