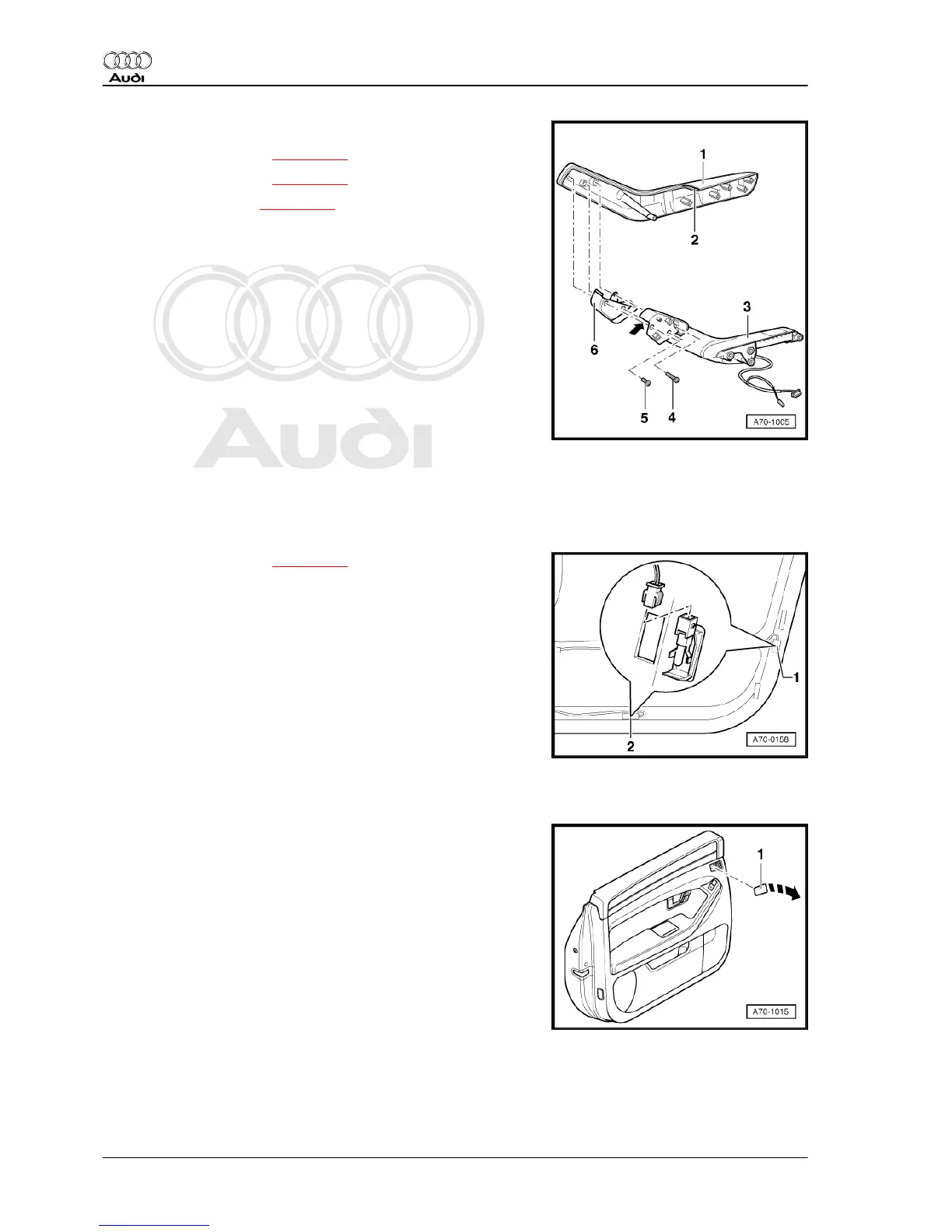

♦ Removing
– Remove the door trim ⇒ page 189 .
– Remove the insulation ⇒ page 192 .
– Remove the armrest ⇒ page 193 .
– Unscrew the bolts -5- (2x).
♦ Tightening torque 2 Nm.
– Unscrew the bolt -4-.
♦ Tightening torque 2 Nm.
– Pull the front section -3- of the armrest -1- out of the
guide -2-.
– Push down the cover -6- to the rear.
– Unplug the connector on the inside of the front section
-arrow-.
♦ Installing
– Install the window regulator switch module in the reverse order
of removal.
2.8 Removing and installing door warning
light and footwell light
– Remove the door trim ⇒ page 189 .
– Use a screwdriver to prise out the door warning light -1- from
underneath and pull out the door warning light -1- with the ca‐
ble.
– Unplug the connector at the door warning light -1-.
– Use a screwdriver to prise out the exit light -2- at the front and
pull out the exit light -2- with the cable.
– Unplug the connector at the exit light -2-.
2.9 Removing and installing treble loud‐
speaker trim
– Use a screwdriver to carefully prise out the treble loudspeaker
trim -1- in arrow direction.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
194 Rep. gr.70 - Trim, insulation
