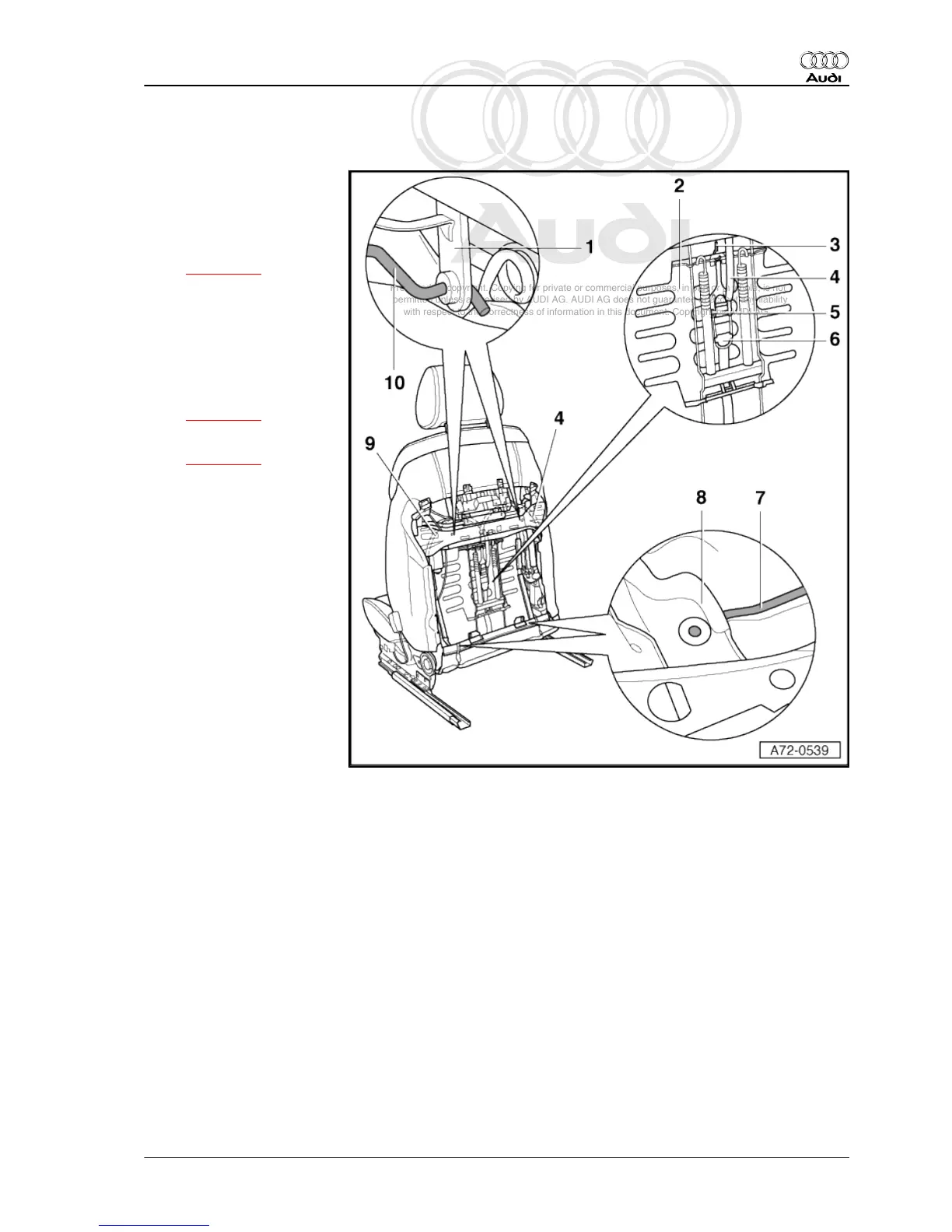

1.28 Removing and installing 4-way lumbar support
1 - Holder (2x)
2 - 4-way lumbar support
♦ Removing
– Remove the seat
⇒ page 282 .
– Attach the holder for
seat repair -VAS 6136-
to the engine and gear‐
box holder -VAS 6095- .
– Attach the front seat to
the holder for seat repair
-VAS 6136- .
– Remove the upper
backrest cover panel
⇒ page 309 .
– Remove the lower back‐
rest cover panel
⇒ page 310 .
– Disengage the fasten‐
er -7- at the bottom on
the left and right from
the backrest frame -8-.
– Disengage the fasten‐
er -10- at the top on the
left and right from the
holders -1- (2x).
– Disengage the Bowden
cable for lumbar support
adjustment -9- at the
hook -3-.
– Disengage the Bowden
cable for lumbar support
height adjustment -4- at
the retainer -5- and at
the guide roller -6-.
– Take out the 4-way lum‐
bar support -2-.
♦ Installing
– Install in reverse order.
3 - Hook
4 - Bowden cable for lumbar support height adjustment
5 - Retainer
6 - Guide roller
7 - Fastener
8 - Backrest frame
9 - Bowden cable for lumbar support adjustment
10 - Fastener
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
1. Front seats (memory seat, electrically operated seat) 311
