1.31 Removing and installing upper backrest adjustment motor

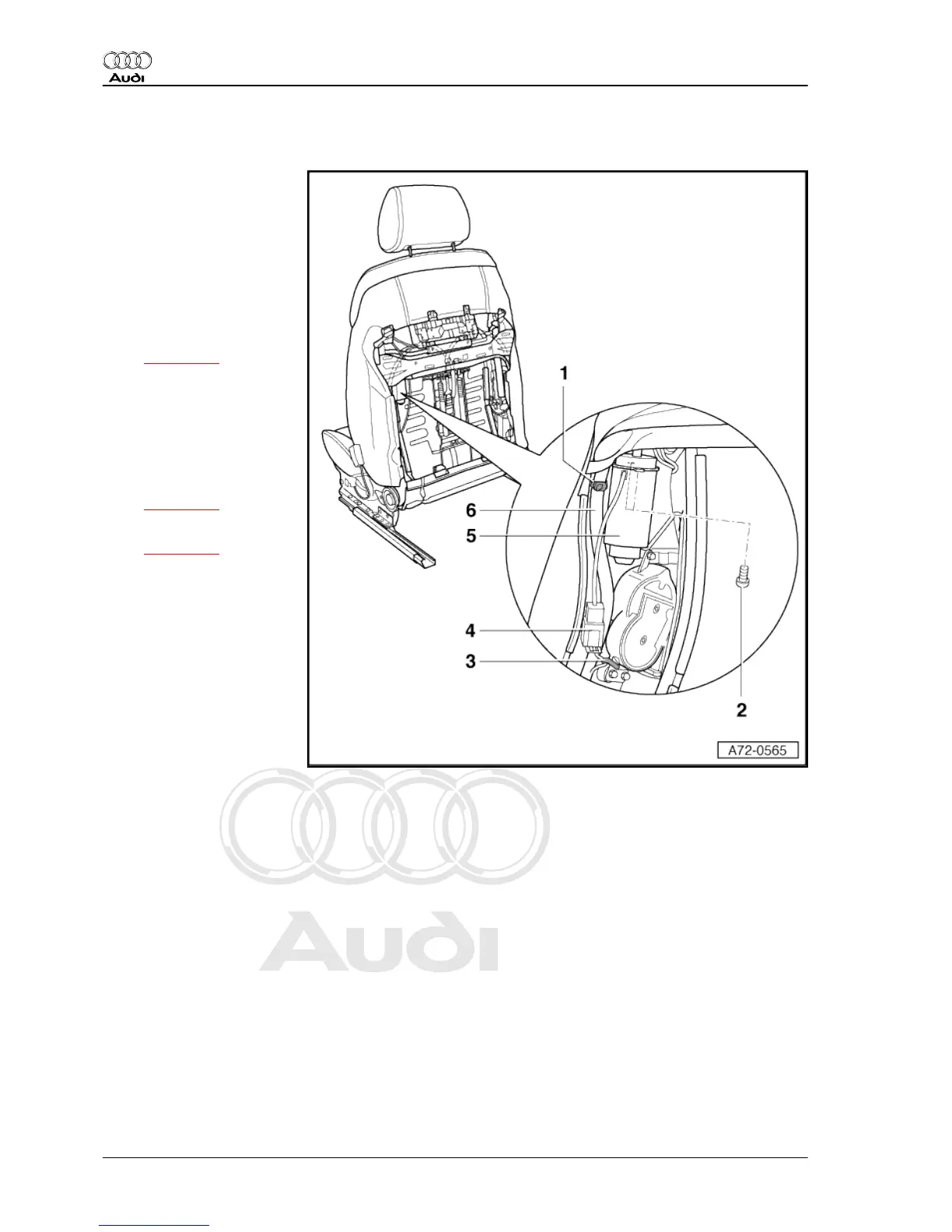

1 - Cable tie
2 - Bolts (2x)
3 - Cable tie
4 - Connector
5 - Upper backrest adjustment
motor
♦ Removing
– Remove the seat
⇒ page 282 .
– Attach the holder for
seat repair -VAS 6136-
to the engine and gear‐
box holder -VAS 6095- .
– Attach the front seat to
the holder for seat repair
-VAS 6136- .
– Remove the upper
backrest cover panel
⇒ page 309 .
– Remove the lower back‐
rest cover panel
⇒ page 310 .
– Unfasten the cable tie
-3-.
– Unplug the connector
-4-.
– Unclip the cable tie -1-
from the backrest frame.
– Pull the wiring har‐
ness -6- aside.
– Unscrew the bolts -2-
(2x).
– Pull out the upper back‐
rest adjustment motor
-5- downwards.
♦ Installing
– Install the upper back‐
rest adjustment motor -5- in the reverse order of removal.
