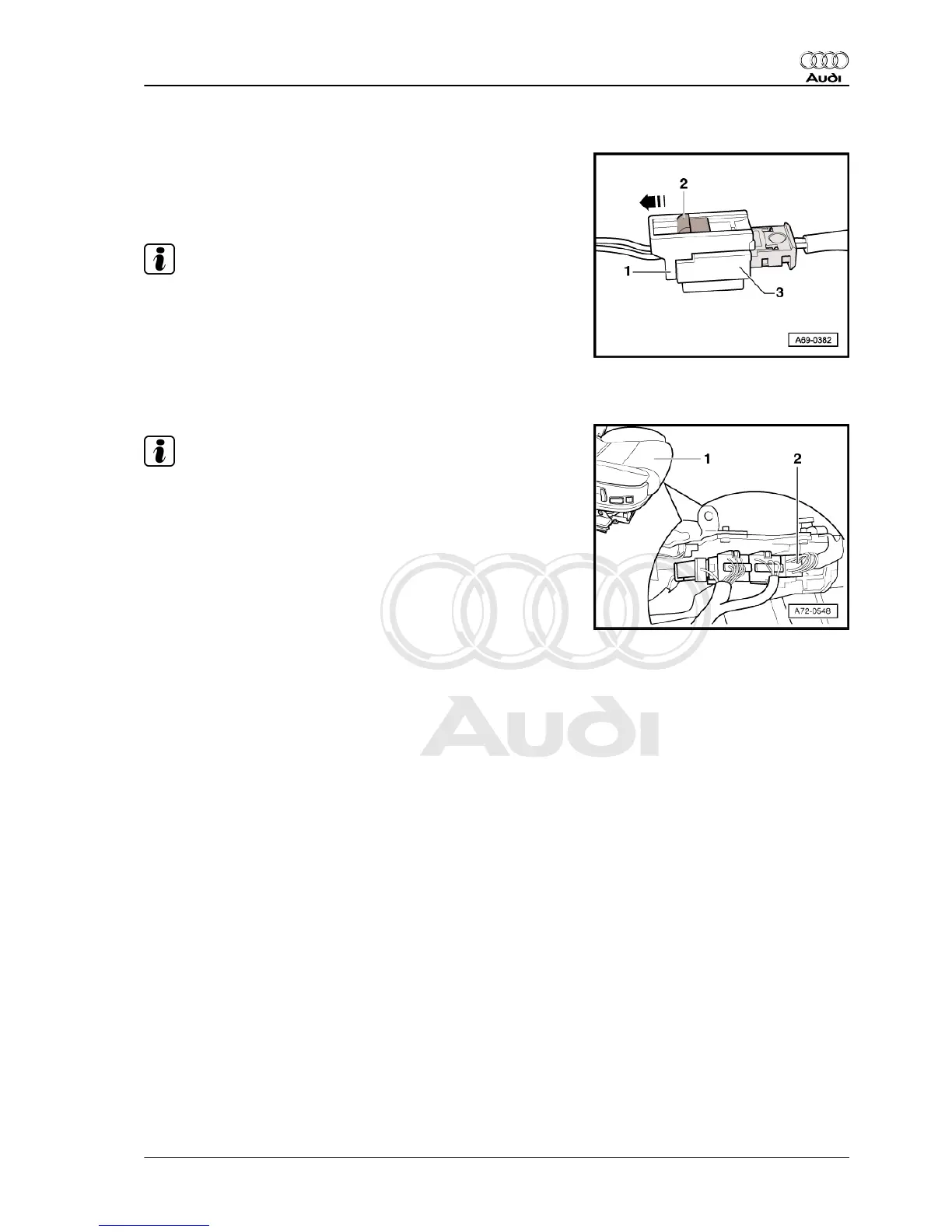

1.3 Unplugging connector for side airbag
– Pull the catch -2- in arrow direction and unplug the connectors
-1- and -3-.
– With the ignition switched on, connect the battery earth wire
⇒ Electrical system; Rep. gr. 27 .
Note
If the airbag warning lamp -K75- indicates a fault following instal‐
lation, the event recorder must be interrogated, erased and inter‐
rogated again ⇒ Vehicle diagnostic tester.
1.4 Pin assignment of emergency power
supply connector
Note
♦ Providing an emergency power supply for the seat longitudinal
adjustment (SLV) and seat height adjustment (SHV) motors
involves energising the pins at the emergency power supply
connector -2-. The corresponding pins are given in the follow‐
ing list.
♦ The standard settings are not retained when use is made of
the emergency power supply and the seat has to be re-adap‐
ted ⇒ Refer to Guided fault-finding: Adaption of motors.
– 1: SLV switch (-)
– 2: SLV switch (+)
– 3: SHV switch (-)
– 4: SHV switch (+)
– 5: SLV motor (-)
– 6: SLV motor (+)
– 7: SHV motor (-)
– 8: SHV motor (+)
