Note
Mark the wires before detaching.

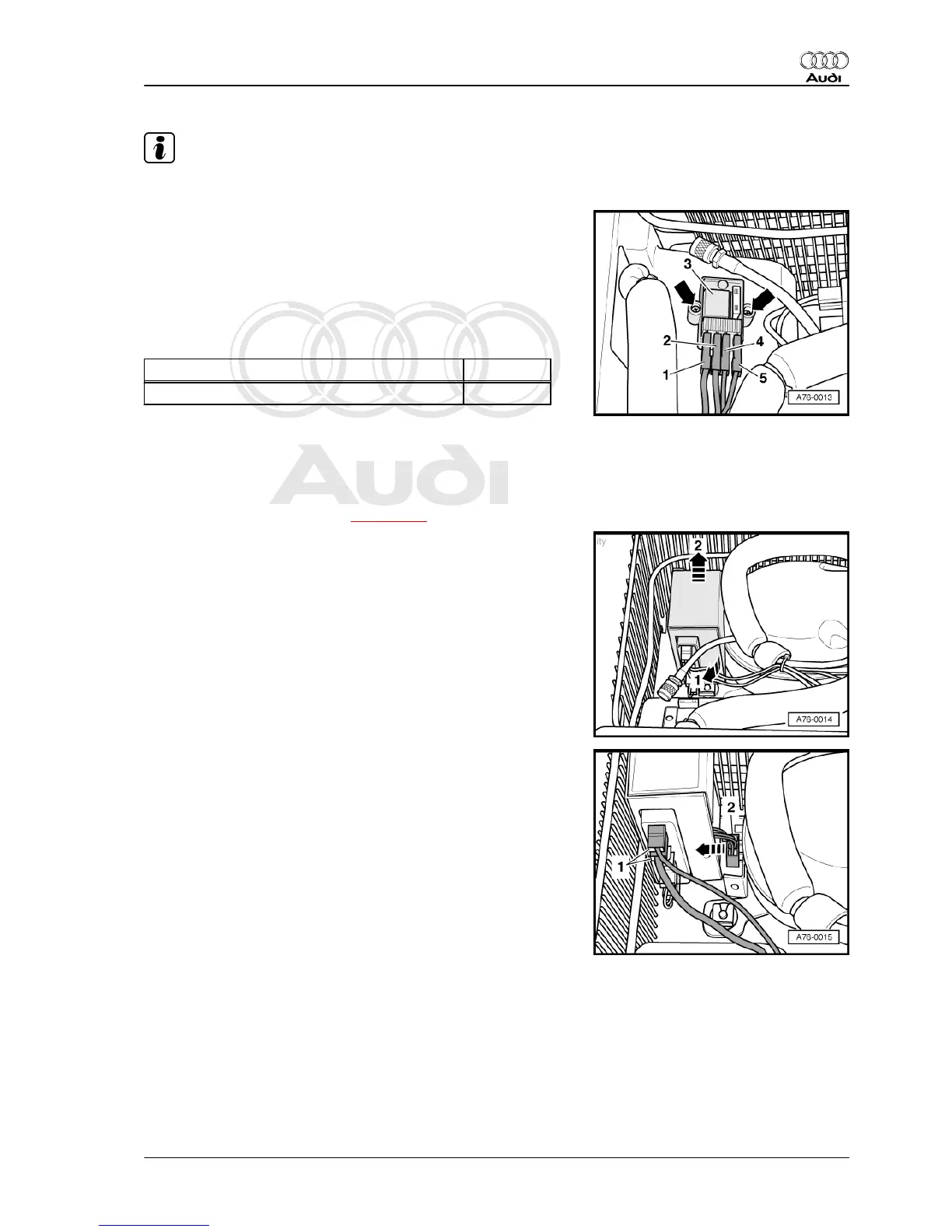

– Unplug the connectors -1-, -2-, -4- and -5-.
– Screw out the bolts -arrows-.
– Detach the battery monitor -3-.
Installing
Install in reverse order.
Tightening torque
Component
Nm
Battery monitor to housing
1.5
1.8 Removing and installing control unit for
refrigerator box compressor
Removing
– Remove the refrigerator box ⇒ page 385 .
– Twist and pull the control unit off the holder -arrow 1-.
– Lift off the control unit -arrow 2-.
– Press the connector -2- off the compressor in arrow direction.
– Unplug the connectors -1- at the control unit.
Installing
Install in reverse order.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
1. Servicing refrigerator box 391
