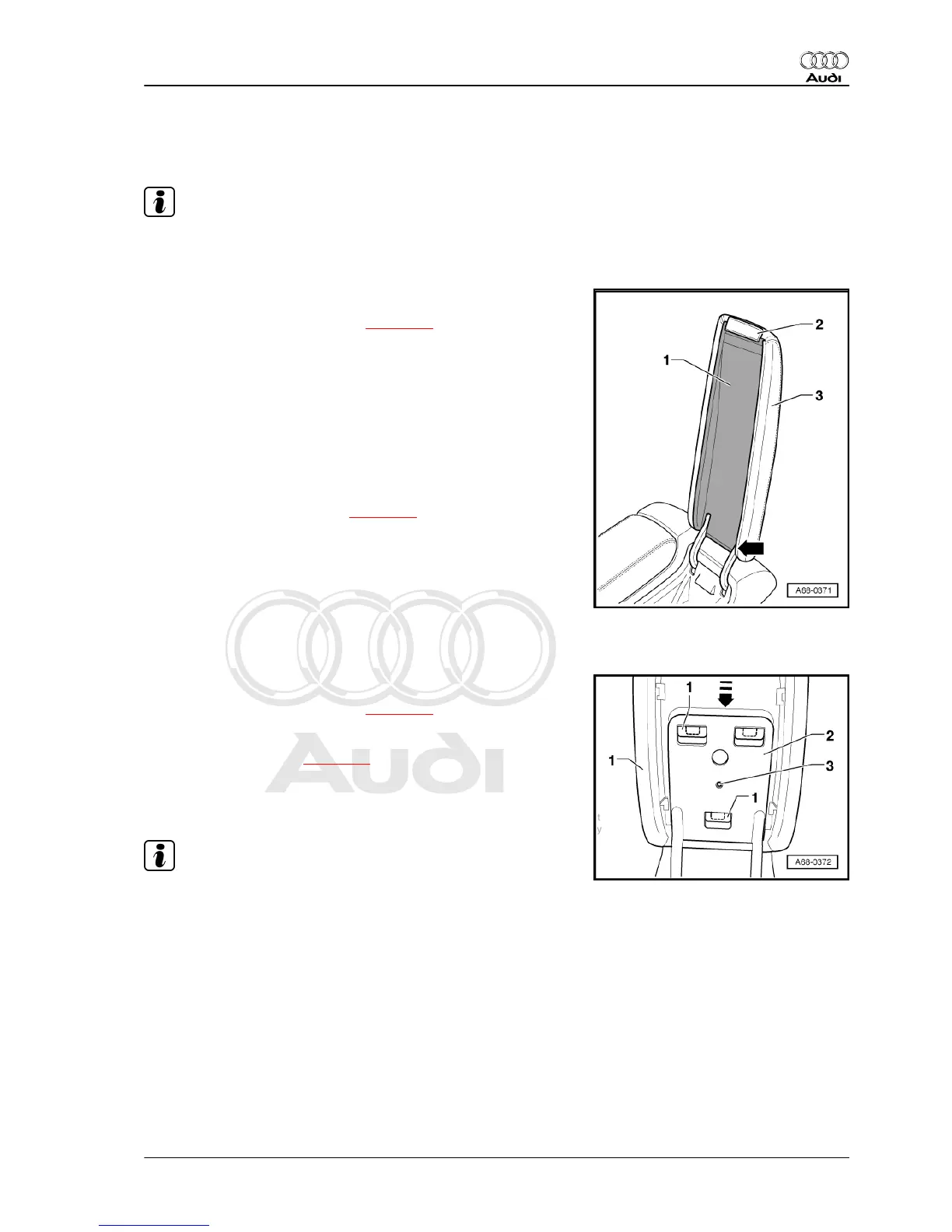

5.4 Removing and installing cover panel for
centre armrest (split)
Note
♦ Never press button in padding after removing cover panel.
♦ Pressing button would cause inserted spring to be ejected.
Removing
– Remove centre armrest (split) ⇒ page 84 .
– Open centre armrest.
– Starting at bottom -arrow-, carefully prise cover -1- off padding
-3-.
– Pull out cover panel -1- downwards.
Installing
– Slide cover panel -1- beneath button -2-.
– Clip cover panel -1- to padding -3-.
– Install centre armrest (split) ⇒ page 84 .
5.5 Removing and installing padding for
centre armrest (split)
Removing
– Remove centre armrest (split) ⇒ page 84 .
– Open centre armrest.
– Remove cover panel ⇒ page 87 .
– Press padding -1- in direction of -arrow- until lugs of carrier
-2- are disengaged from guides of padding -1- and retaining
tab -3- is released.
Note
♦ Never press button in padding after removing cover panel.
♦ Pressing button would cause inserted spring to be ejected.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
5. Front centre armrest (split) 87
