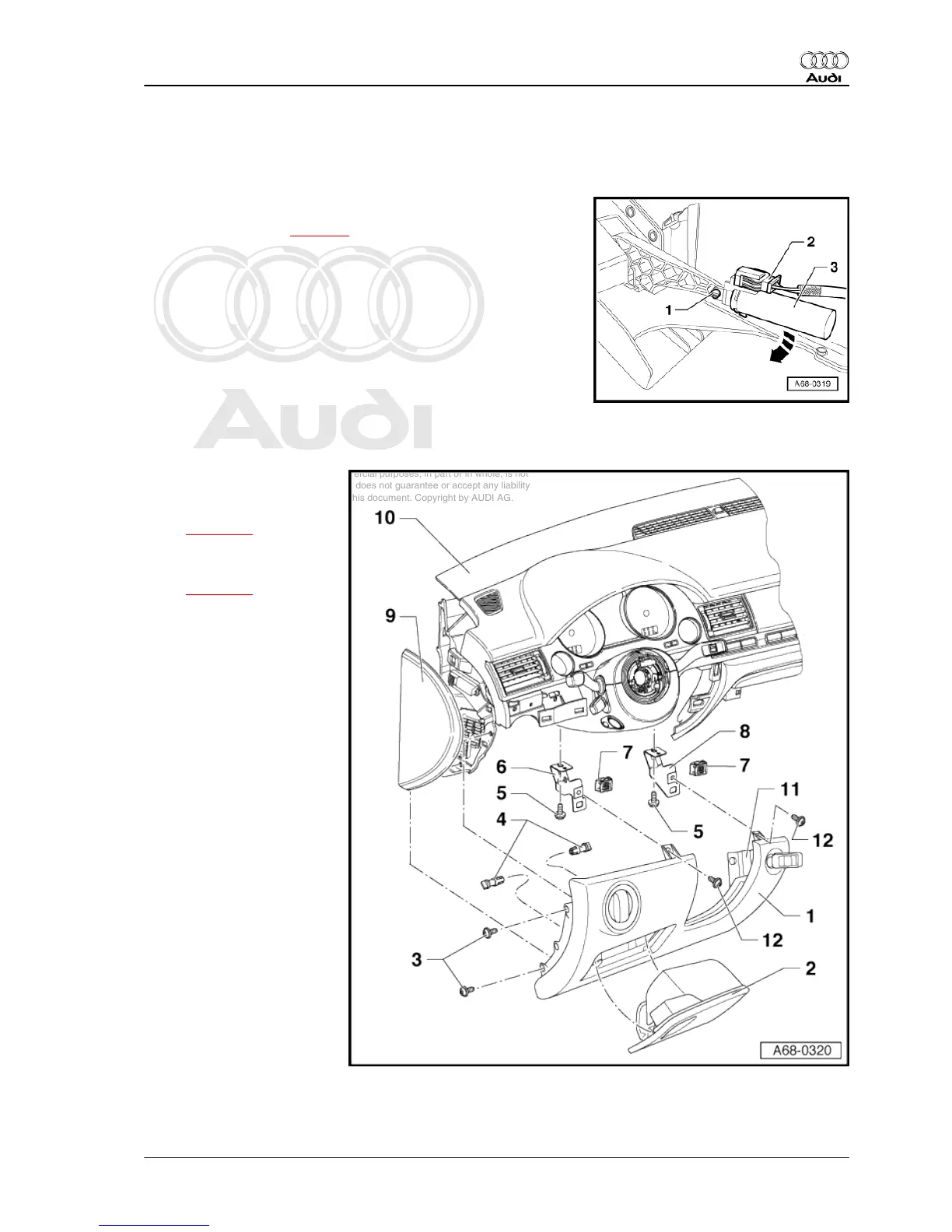

1.4 Removing and installing cushioning
mechanism for glove box lid/knee bol‐
ster
Removing
– Remove glove box ⇒ page 3 .
– Open glove box.
– Unplug electrical connector -2-.
– Pull out pivot pin -1-.
– Release cushioning mechanism for glove box lid -3- in clock‐
wise direction and detach cushioning mechanism.
Installing
Install in reverse order of removal.
1.5 Exploded view of storage compartment/knee bolster (driver's side)
1 - Storage compartment/knee
bolster (driver's side)
❑ Removing and installing
⇒ page 10
2 - Storage box
❑ Removing and installing
⇒ page 11
3 - Bolts (2x), 4 Nm
4 - Pivot pin (2x)
❑ For securing storage
box
5 - Bolts (2x), 4 Nm
6 - Support (left-side)
7 - Speed nut (2x)
8 - Support (right-side)
9 - Dash panel end trim (left-
side)
10 - Dash panel
11 - Entry and start authorisa‐
tion switch -E415-
❑ Removing and installing
⇒ Electrical system;
Rep. gr. 96
12 - Bolts (2x), 4 Nm
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
1. Shelves / trim panels 9
