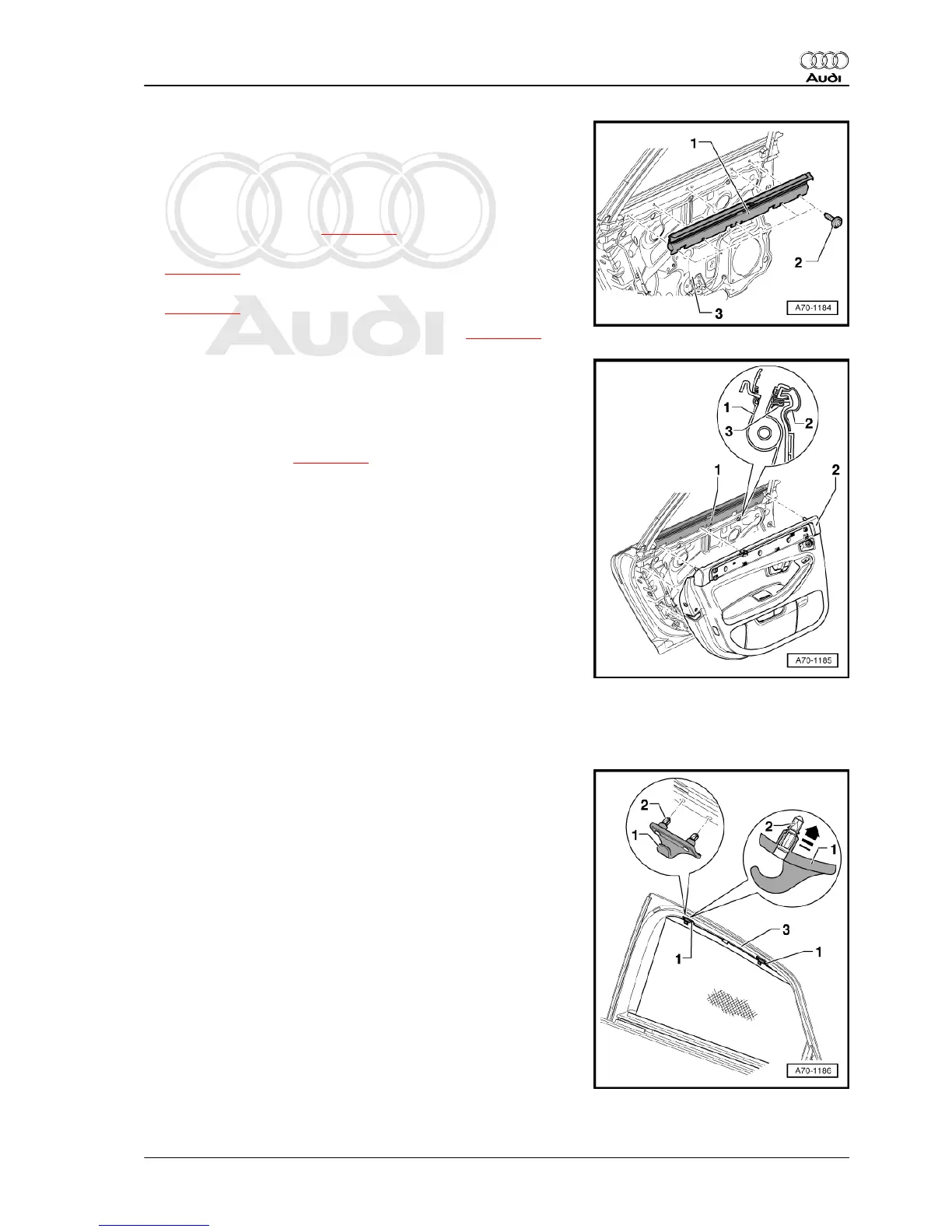

Installing
– Attach the sun blind -1- to the door -3-.
– Tighten the bolts -2- (5x) to the specified torque.
– Make sure all clips are in position on the back of the door trim.
– Replace damaged clips ⇒ page 191
– Engage the Bowden cable for the interior door handle
⇒ page 191
– Plug in the connector at the window regulator control unit
⇒ page 191
– Plug in the connector at the bass loudspeaker ⇒ page 191
– Move the door trim -2- to the sun blind -1- and position the door
trim.
– Clip the door trim -2- to the sun blind -1- (4 clips).
3 - Clips
– Install the door trim ⇒ page 189 .
Tightening torque:
Sun blind to door: 3 Nm
2.17 Removing and installing hook for sun
blind
Removing
– Press in the pin -2- (2x) slightly in arrow direction.
– Detach the hook -1- from the door frame -3-.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
2. Rear door trim panels 199
