5 - Bolts (6x), 4 Nm
6 - Bracket for centre console extension
Removing
– Remove extension for centre console ⇒ page 59 .
– Remove air duct intermediate piece ⇒ page 70 .
– Remove bolts -7- (4x).
– Unscrew bolts -5- (6x).
– Pull out intermediate piece -4- towards rear.
– Unscrew nuts for bracket for centre console extension -6- ⇒ Item 4 (page 50) .
– Take out bracket for centre console extension -6-.
Installing
Install in reverse order of removal.
7 - Bolts (4x), 4 Nm
3.13 Bracket for centre console extension
(front)

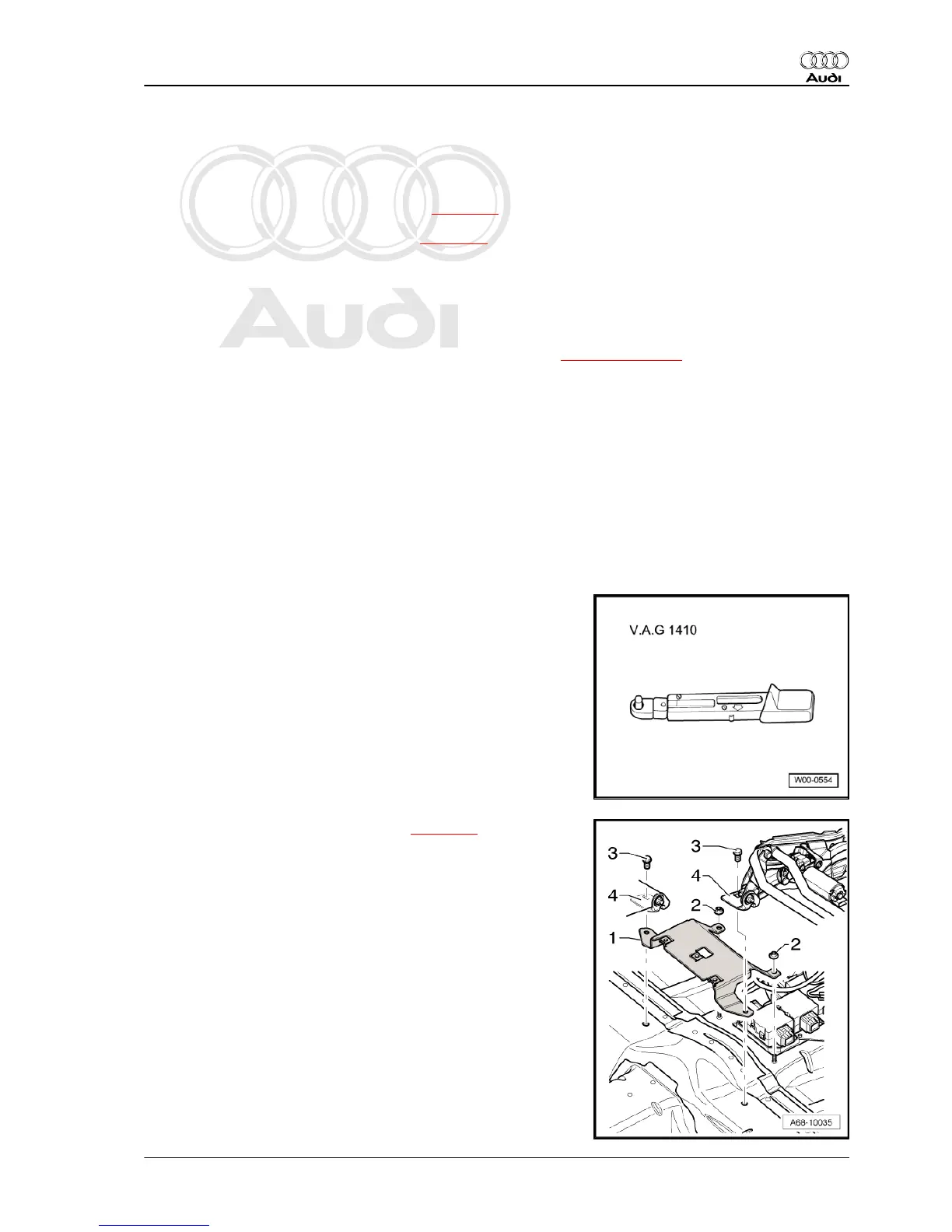

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1410-
– Remove extension for centre console ⇒ page 59 .
– Unscrew bolts -3- (2x) for electrically operated single seats
-4-. 40 Nm
– Remove nuts -2- (2x). 4 Nm
– Slightly lift electrically operated single seats -4-; if necessary
slacken off more bolts at electrically operated single seats
-4-.
– Take out bracket -1-.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
3. Removing and installing centre console with extension 67
